Automatic Pen Plotter Printer with 1200mm/s Cutting Speed and Aluminium Alloy Construction for CAD-Compatible Paper Pattern Cutting

Name: Automatic Pen Plotter Printer with 1200mm/s Cutting Speed and Aluminium Alloy Construction for CAD-Compatible Paper Pattern Cutting
Brand: Wuhan Gemei Joint Technology Co., Ltd.
SKU: GM1209B3
Price: 2,515.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: KAEMI or GM(Self-owned Brand)

Certification: CE,CCC,ISO9001,etc

Model Number: GM1209B3

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD2315-2715/Set

Packaging Details: Professional Wooden Case for Import and Export(with Official Chop)--1209B3-1 Set Wooden Case Package Dimension:176*163*60cm(For Cutter), add 41*42*42cm(1500w Air Pump), Total Gross Weight:235Kg, Total Volume:2.7 CBM(For Reference, Real Figure more or less

Delivery Time: 3-7 Working Days

Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)

Supply Ability: 500 Sets Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                pen drawing paper pattern cutter, automatic pen plotter printer, 1200mm/s paper pattern cutting machine


Condition:	New	Materials:	Aluminium Allloy And Stainless Steel
Function:	Paper Pattern Printing And Cutting	Printing Head:	Pen Drawing, Ball Pen Drawing, Cheap And Practical
Printing Speed:	Pen Drawing, Line Drawing Speed Is Okay, But Words Written Speed Is Slow	Cutting Speed:	Maximum 1200mm/s
Connection Method:	Cable Direct Connection, Both USB Or LAN Cable	Cutting Materials:	Kraft White Paper Thin PVC Sheet, Sticker, Rubber, Etc
Application Areas:	Garment, Shoes, Bags, Furniture, Advertising, Etc	Working Scope:	9060/1209/1509/1510/1512,etc Can Be Customized
Maximum Paper Cutting:	Maximum 2-3mm Thickness	Software:	Independent Cutter Software, Compatible With All CAD Editing Softwares
Warranty:	1 Year For Whole Machines, Lifetime Maintenance Service	Term Of Delivery:	Exw, FCA, CNF, CIF, FOB, DDP All Support
Company Features:	Listed Brand In CCTV, High Tech Enterprise In China	Aftersales:	5-6 Person Aftersales Team, 24 Hours Onlines Service
Distributors Or Agents:	50+ Agents Or Distributors All Over The World

Condition:	New
Materials:	Aluminium Allloy And Stainless Steel
Function:	Paper Pattern Printing And Cutting
Printing Head:	Pen Drawing, Ball Pen Drawing, Cheap And Practical
Printing Speed:	Pen Drawing, Line Drawing Speed Is Okay, But Words Written Speed Is Slow
Cutting Speed:	Maximum 1200mm/s
Connection Method:	Cable Direct Connection, Both USB Or LAN Cable
Cutting Materials:	Kraft White Paper Thin PVC Sheet, Sticker, Rubber, Etc
Application Areas:	Garment, Shoes, Bags, Furniture, Advertising, Etc
Working Scope:	9060/1209/1509/1510/1512,etc Can Be Customized
Maximum Paper Cutting:	Maximum 2-3mm Thickness
Software:	Independent Cutter Software, Compatible With All CAD Editing Softwares
Warranty:	1 Year For Whole Machines, Lifetime Maintenance Service
Term Of Delivery:	Exw, FCA, CNF, CIF, FOB, DDP All Support
Company Features:	Listed Brand In CCTV, High Tech Enterprise In China
Aftersales:	5-6 Person Aftersales Team, 24 Hours Onlines Service
Distributors Or Agents:	50+ Agents Or Distributors All Over The World

Product Description

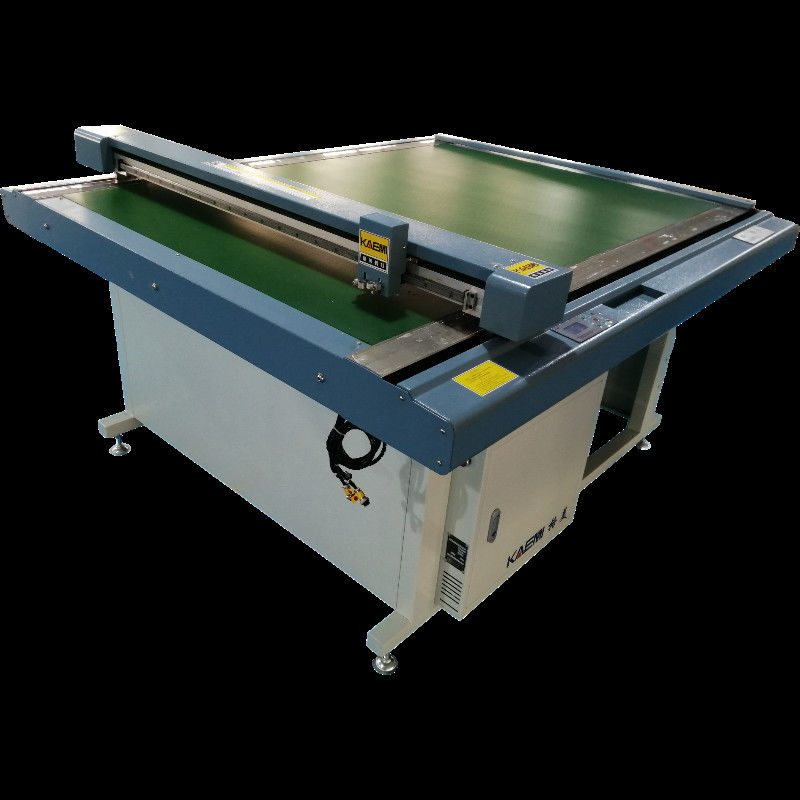

Automatic Pen Plotter Printer Flatbed Paper Pattern Cutting Machine

High-speed flatbed cutting machine for garment paper patterns with precision cutting at 1200mm/s

Product Specifications

Model	GM-1209B3	GM-1509B3	GM-1510B3	GM-1512B3
Cutting Window (Fabric Scope)	1200*900mm	1500*900mm	1500*1000mm	1500*1200mm
Overall Dimension (mm)	16001280750	19001280750	19001380800	19001580800
Cutting Speed	1200mm/s
Cutting Thickness	2mm
Cutting Materials	White Paper, Kraft, Plastic Board, Fiberboard, etc
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet; Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M (Can buffer more than 1 page)
File Formats	HPGL (Compatible with Domestic and International CAD Online)
Control Panel	9 Keys and LED Display
Motor/Driver	High Performance 3 Phase Step-motor
Supply Voltage	AC 220V/110V±10%, 50Hz/3.5KW
Working Environment	Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH
Fasten	Vacuum Adsorption
Paper Thickness	150g-500g/㎡
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

Main Features

New frame design ensures machine stability when running at high speed
Optimized circuit layout with compact electrical design for better heat dissipation
Cutting starting points and cutting sequence display system
Latest system version with optimized dashed lines and arcs for smoother operation
Unique error data identification function

Manufacturer Profile

Wuhan Gemei United Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries. As a high-tech enterprise certified in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has developed a series of cutting machines with multiple software copyright and patent certificates.

Packaging & Delivery

Industry Exhibitions

Certifications

Frequently Asked Questions

Are you a manufacturer?

Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience in this field.

How do you pack these products?

Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Is it customizable?

Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

What about after-sales service?

We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.

What is your lead time?

Spot goods typically take 2-4 days, while custom orders require 5-7 days for completion.
