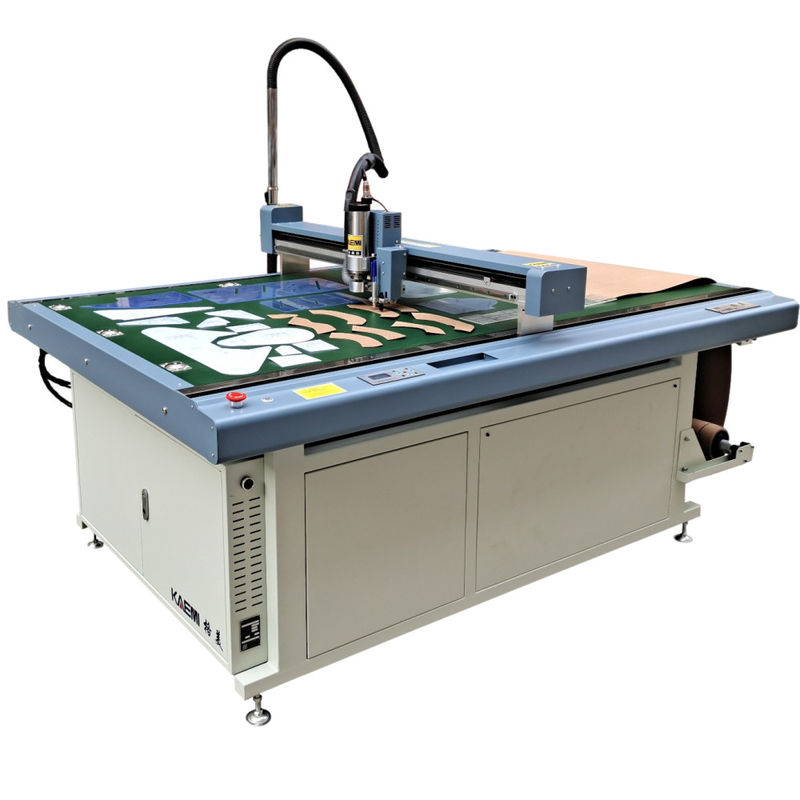

Template Garment Pattern Cutting Machine PVC PET Acrylic Epoxy Resin Sheet Board Cutter

Name: Template Garment Pattern Cutting Machine PVC PET Acrylic Epoxy Resin Sheet Board Cutter
Brand: KAEMI or GM(Self-owned Brand)
SKU: GM-1509M6
Price: 3100 USD
Availability: InStock
Rating: 5 (182 reviews)

Product Details

Place of Origin: China

Brand Name: KAEMI or GM(Self-owned Brand)

Certification: CE,CCC,ISO9001,etc

Model Number: GM-1509M6

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD3100-3400/Set

Packaging Details: Professional Wooden Case for Import and Export(with Official Chop)--1509M6-1 Set Wooden Case Package Dimension:215*170*65cm(For Cutter), add 41*42*42cm(1500w Air Pump), Total Gross Weight:280Kg, Total Volume:2.7 CBM(For Reference, Real Figure more or less)

Delivery Time: 3-7 Working Days

Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)

Supply Ability: 500 Sets Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1812 size garment template cutter, template garment pattern cutting machine


Condition:	New	Materials:	Aluminium Allloy And Stainless Steel
Function:	Template Sheet Milling Cutting Sewing Template Cutter	Printing Head:	Pen Drawing On Template Sheet Or Board
Cutting Speed:	Maximum 24000 RPM Speed, Maxium 1800mm/s Cutting Speed	Connection Method:	Cable Direct Connection, Both USB Or LAN Cable
Cutting Materials:	PVC, PET, Acrylic Exposy Resin Sheet,etc Up To 6mm Cutting	Application Areas:	Garment, Shoes, Bags, Furniture, Advertising, Etc
Working Scope:	1509/1512/1812 Default Size, Other Sizes Can Be Customized	Maximum Template Cutting:	Up To 6mm, Multiple Layers Board Can Cut
Software:	Independent Cutter Software, Compatible With All CAD Editing Softwares	Warranty:	1 Year For Whole Machines, Lifetime Maintenance Service
Term Of Delivery:	Exw, FCA, CNF, CIF, FOB, DDP All Support	Company Features:	Listed Brand In CCTV, High Tech Enterprise In China
Aftersales:	5-6 Person Aftersales Team, 24 Hours Onlines Service	Distributors Or Agents:	50+ Agents Or Distributors All Over The World

Condition:	New
Materials:	Aluminium Allloy And Stainless Steel
Function:	Template Sheet Milling Cutting Sewing Template Cutter
Printing Head:	Pen Drawing On Template Sheet Or Board
Cutting Speed:	Maximum 24000 RPM Speed, Maxium 1800mm/s Cutting Speed
Connection Method:	Cable Direct Connection, Both USB Or LAN Cable
Cutting Materials:	PVC, PET, Acrylic Exposy Resin Sheet,etc Up To 6mm Cutting
Application Areas:	Garment, Shoes, Bags, Furniture, Advertising, Etc
Working Scope:	1509/1512/1812 Default Size, Other Sizes Can Be Customized
Maximum Template Cutting:	Up To 6mm, Multiple Layers Board Can Cut
Software:	Independent Cutter Software, Compatible With All CAD Editing Softwares
Warranty:	1 Year For Whole Machines, Lifetime Maintenance Service
Term Of Delivery:	Exw, FCA, CNF, CIF, FOB, DDP All Support
Company Features:	Listed Brand In CCTV, High Tech Enterprise In China
Aftersales:	5-6 Person Aftersales Team, 24 Hours Onlines Service
Distributors Or Agents:	50+ Agents Or Distributors All Over The World

Product Description

PVC PET Acrylic Epoxy Resin Sheet Board Milling Cutting Machine Garment Template Cutter

Specification

Model	GM-1509M3	GM-1512M3	GM1812M3
Cutting Window(Fabric Scope)	1500*900mm	1500*1200mm	1800*1200mm
Overall Dimension(mm)	190014501100	190017501100	220017501100
Product Features	Compatible with various CAD softwares;Design while the machine is cutting
Cutting Speed	500-1500mm/s
Cutting Thickness	≤1.5mm-6.0mm
Cutting Materials	PVC, PP,POM,Acrylic, PET, Kraft, etc
Processing Methods	Mill, Cut, Drill, Plot
Cut Tools	Mill-cutter, Graver, Driller, Pen
Repeatability Precision	≤0.01mm
Software Resolution	0.025mm/0.01mm/0.1mm(Optional)
Communication Port	USB/RJ45 Ethernet
Buffer Memory Size	1M/8M/32M(Can butter more than 1 page)
File Formats	DXF/HPGL/GPGL/PLT Formats Compatible
Control Panel	9 Keys and LED Display
Driver System	Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
Supply Voltage	AC 220V/110V±10%, 50Hz/3.5KW
Fuse Value	30A/35A
Working Environment	-30~55℃ or -22~131℉
Fasten	Vacuum/Clamping
Mill Motor	800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
Waste Elimination	220V/1.4KW, Industrial 15L Vacuum Cleaner

Product Description

Main Features

1. Pneumatic Fixation Technology of High Efficiency Template

2. Integrated Floating Pressure Foot and Vacuum Cleaning Technology

3. Flexible Modification System for Cutting Starting Points and Cutting Sequence

4. Independent Templates Editing and Designing System

Company Profile

Wuhan Gemei Joint Technology Co., Ltd.

is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing,bags and shoes. The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM / CAD integrated solutions for garment,luggage,footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Packing & Delivery

Exhibition

Certifications

FAQ

1. Q: Are you a manufacturer?

A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for over 10 years.

2. Q: How do you pack these products?

A: Usually packed in wooden case and can pack according to export standard or your requirement.

3. Q: Is it customizable?

A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.

4.Q: After-sales service

A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype

5.Q: What is your lead time?

A: Spot goods usually take 2-4 days, and customization takes 5-7 days
