Highlight:
graph contour paper pattern cutting plotter
, pen drawing paper pattern cutting plotter
, pen type paper pattern cutting plotter
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
250 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
Hot New Graph Contour Cutting Plotter Paper Pattern Cutter |
Machine Material: |
All Aluminum Countertops |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade |
Cutting Scope: |
1200*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s |
Cutting Machine Size: |
1600*1280*750mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

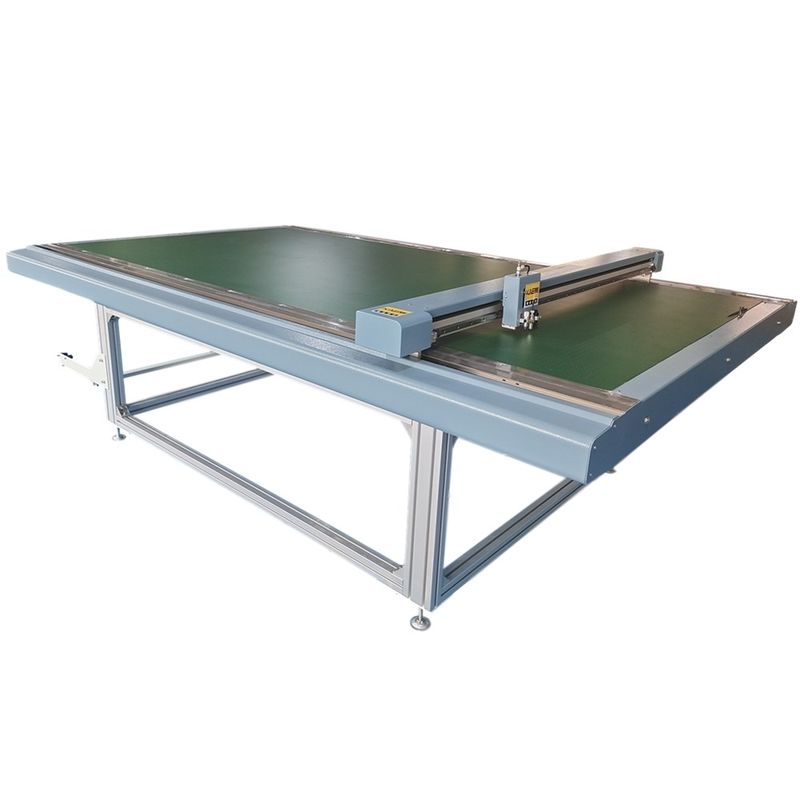

Pen Drawing Blade Cutting Graph Contour Paper Pattern Cutter Plotter Machine
Economical pen-type graph contour paper pattern cutting plotter designed for precision cutting and drawing applications across various industries.
Technical Specifications
| Model |
GM-1209B3 |
GM-1509B3 |
GM-1510B3 |
GM-1512B3 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1600*1280*750 |
1900*1280*750 |
1900*1380*800 |
1900*1580*800 |
| Cutting Speed |
1200mm/s |
| Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Repeatability Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH |
| Fasten |
Vacuum Adsorption |
| Paper Thickness |
150g-500g/㎡ |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Main Features
- New frame design ensures machine stability during high-speed operation
- Optimized circuit layout with compact electrical components for better heat dissipation
- Cutting starting points and cutting sequence display system
- Latest system version with optimized dashed lines and arcs for smoother machine operation
- Unique error data identification function
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries. As a high-tech enterprise certified by Hubei Province and Wuhan City, Gemei is committed to providing CAM/CAD integrated solutions and has developed a series of cutting machines with multiple software copyright and patent certificates.
Packaging & Delivery
Exhibition & Trade Shows
Certifications
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience in this field.
How do you pack these products?
Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
What is your lead time?
Spot goods typically ship in 2-4 days, while custom orders require 5-7 days for production.
