Highlight:
flatbed cad paper pattern cutter
, paper pattern cutter 1200x900mm
, paper roll cutting machine 1200x900mm
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
300 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
Pen Drawing Paper Pattern Cutting Machine CAD Paper Pattern Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade |
Cutting Scope: |
1200*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s |
Cutting Machine Size: |
1600*1280*750mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

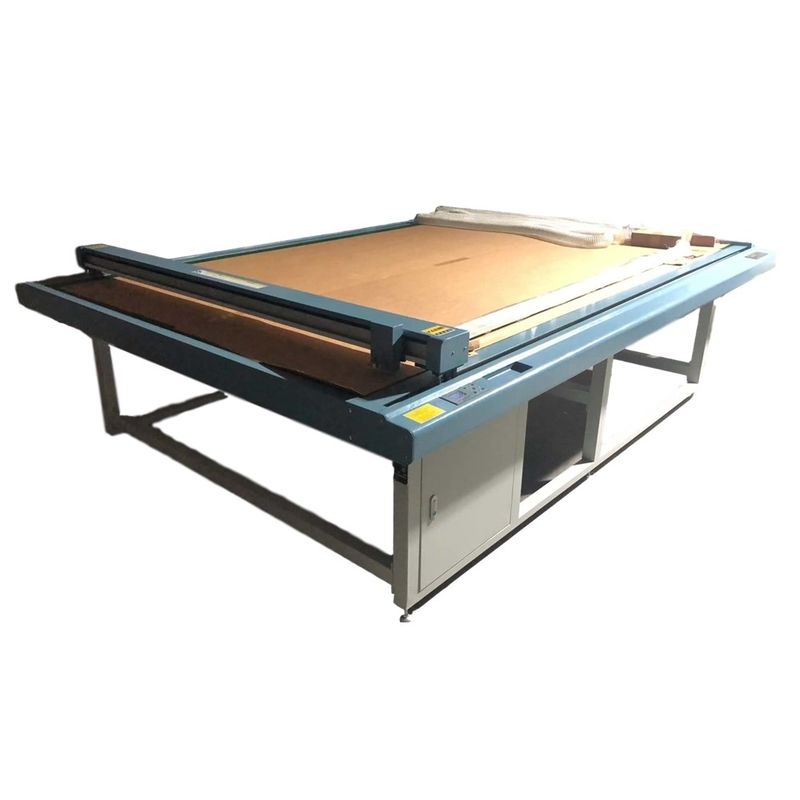

1200x900mm Flatbed CAD Paper Pattern Cutter
Professional pen drawing, writing, and paper pattern cutting machine designed for CAD paper pattern cutting applications across various industries.
Technical Specifications
| Model | GM-1209B3 | GM-1509B3 | GM-1510B3 | GM-1512B3 |
|---|
| Cutting Window (Fabric Scope) | 1200*900mm | 1500*900mm | 1500*1000mm | 1500*1200mm |
| Overall Dimension (mm) | 1600*1280*750 | 1900*1280*750 | 1900*1380*800 | 1900*1580*800 |
| Cutting Speed | 1200mm/s |
| Cutting Thickness | 2mm |
| Cutting Materials | White Paper, Kraft, Plastic Board, Fiberboard, etc. |
| Repeatability Precision | ≤0.01mm |
| Communication Port | USB/RJ45 Ethernet; Shared Folder Print in LAN |
| Buffer Memory Size | 1M/8M/32M (Can buffer more than 1 page) |
| File Formats | HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel | 9 Keys and LED Display |
| Motor/Driver | High Performance 3 Phase Step-motor |
| Supply Voltage | AC 220V/110V±10%, 50Hz/3.5KW |
| Working Environment | Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Fasten | Vacuum Adsorption |
| Paper Thickness | 150g-500g/㎡ |
| Application Areas | Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc. |
Main Features
- New frame design ensures machine stability when running at high speed
- Optimized circuit layout with compact electrical components for better heat dissipation
- Cutting starting points and cutting sequence display system
- Latest system version with optimized dashed lines and arcs for smoother operation
- Unique error data identification function
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research and development, production, sales and service of automation equipment for the clothing, bags and shoes industries.
Our company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is recognized as a high-tech enterprise and software enterprise in Hubei Province, with "information port" certification and status as an entrepreneurship enterprise for overseas students in Wuhan City.
Since establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Our GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world advanced technology with Chinese manufacturing advantages.
We maintain a research and development team composed of doctors, senior engineers and other high-quality talents, insisting that "innovation" is the eternal driving force behind GEMEI's development.
Packing & Delivery
Industry Exhibitions
Certifications
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for over 10 years.
How do you pack these products?
Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
What is your lead time?
Spot goods typically take 2-4 days, while custom orders require 5-7 days for completion.
