Highlight:
pen drawing cad garment cutter
, pen drawing paper pattern plotter
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
200 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
Pen Drawing Paper Pattern Plotter CAD Garment Cutter Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade |
Cutting Scope: |
1200*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s |
Cutting Machine Size: |
1600*1280*750mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

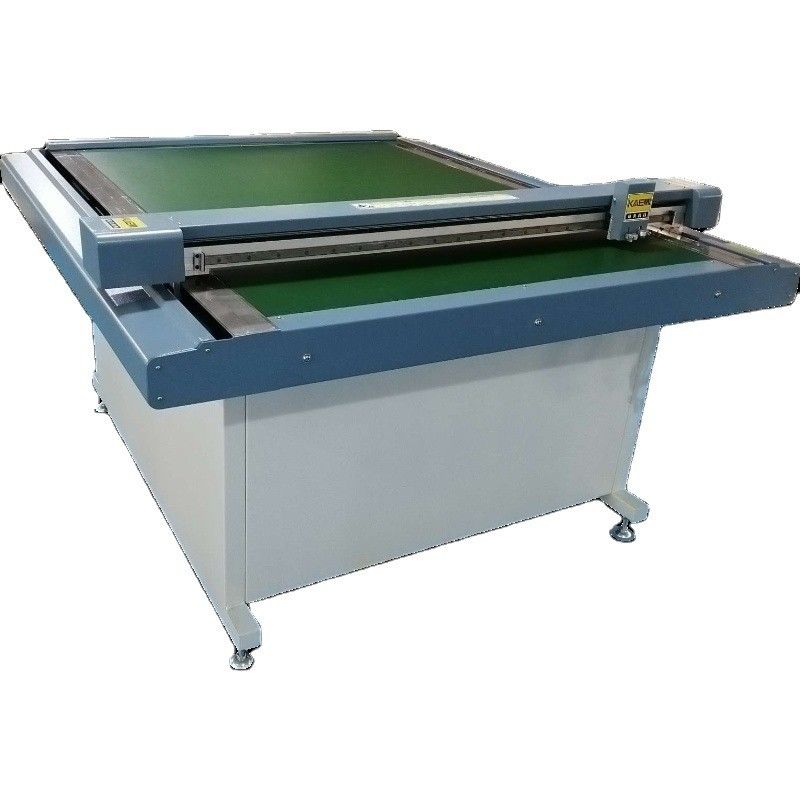

Pen Drawing Paper Pattern Plotter CAD Garment Cutter
Professional CAD garment cutting plotter models 1209/1509/1512/1812 for precision pattern plotting and cutting applications.
Technical Specifications
| Model |
GM-1209B3 |
GM-1509B3 |
GM-1510B3 |
GM-1512B3 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1600*1280*750 |
1900*1280*750 |
1900*1380*800 |
1900*1580*800 |
| Cutting Speed |
1200mm/s |
| Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc. |
| Repeatability Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Fasten |
Vacuum Adsorption |
| Paper Thickness |
150g-500g/㎡ |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc. |
Key Features
- New frame design ensures machine stability during high-speed operation
- Optimized circuit layout with compact electrical components for better heat dissipation
- Cutting starting points and cutting sequence display system
- Latest system version with optimized dashed lines and arcs for smoother machine operation
- Unique error data identification function
Product Images
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and shoe industries. As a high-tech enterprise certified in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and driving innovation in traditional industries through advanced technology.
Since its establishment, Gemei has developed a comprehensive series of cutting machines for clothing, bags, shoes, and hats, obtaining multiple software copyright and patent certificates. The company combines world-leading technology with Chinese manufacturing excellence, featuring innovative designs that prioritize core functionality and simplicity.
Packaging & Delivery
Exhibition & Trade Shows
Certifications & Quality Standards
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience in this field.
How do you pack these products?
Products are typically packed in wooden cases according to export standards, with customization available based on your specific requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize products according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
What is your lead time?
Standard products typically ship within 2-4 days, while custom orders require 5-7 days for production and delivery.
