Highlight:
large cutting machine for garment paper
, pen plotter printer for manufacturing plant
, industrial paper pattern cutting machine
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Pen Drawing Scripting Garment Paper Pattern Cutter Flatbed Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s |
Cutting Machine Size: |
1900*1280*750mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

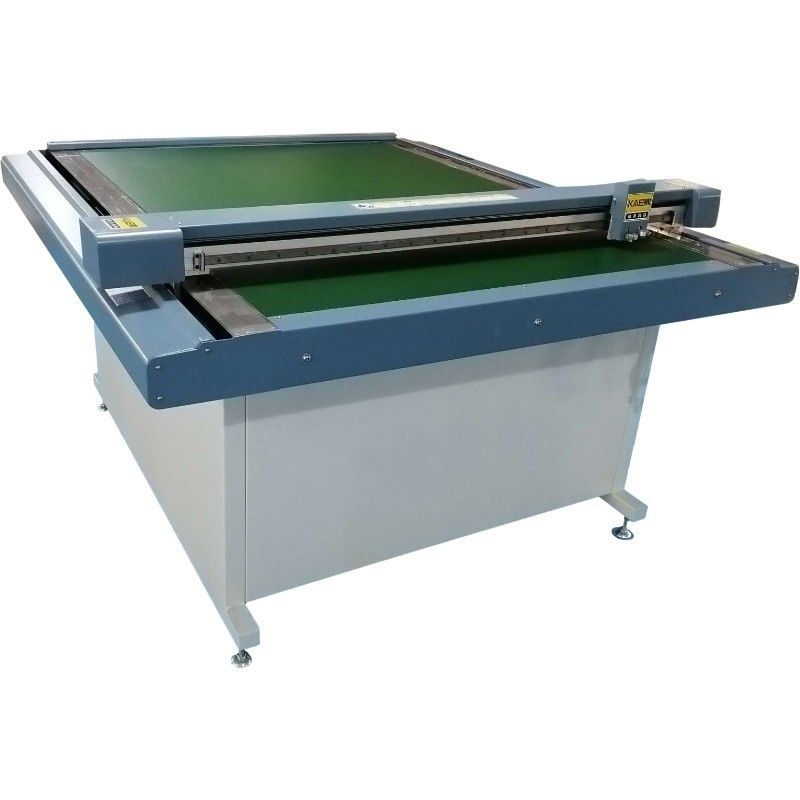

Garment Paper Pattern Cutting Machine
Cost-effective hot pen drawing and scripting garment paper pattern cutter with flatbed design for manufacturing plants
Technical Specifications
| Model |
GM-1209B3 |
GM-1509B3 |
GM-1510B3 |
GM-1512B3 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension |
1600*1280*750mm |
1900*1280*750mm |
1900*1380*800mm |
1900*1580*800mm |
| Cutting Speed |
1200mm/s |
| Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc. |
| Repeatability Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Fasten |
Vacuum Adsorption |
| Paper Thickness |
150g-500g/㎡ |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc. |
Key Features
- New frame design ensures machine stability during high-speed operation
- Optimized circuit layout with compact electrical components and improved heat dissipation
- Cutting starting points and cutting sequence display system
- Latest system version with optimized dashed lines and arcs for smoother machine operation
- Unique error data identification function
Manufacturer Profile
Wuhan Gemei United Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries.
As a high-tech enterprise certified by Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has developed a series of cutting machines for various industries, obtaining multiple software copyright and patent certificates.
Packaging & Delivery
Exhibition Showcase
Certifications
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience in this field.
How do you pack these products?
Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
What is your lead time?
Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
