Product Details
Place of Origin: Hubei, China
Brand Name: KAEMI or OEM
Payment & Shipping Terms
Price: $1,819.00/sets 1-4 sets
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
100 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
New Good Garment Paper Pattern Cutting Plotter Vertical Type |
Printing Materials: |
White Paper,Kraft, Etc |
Cutting Size: |
1250mm To 2200mm |
Paper Size: |
1300mm To 2300mm |
Printing Tool: |
Contious Big Capacity H801 Ink Catridge |
Ink Cartridge Type: |
Continuous Ink Catridge, No Need Replacement, Can Refill The Ink |
Printing Resolution: |
150-600DPI, Optional And Settable On Menu |
Power Supply Voltage: |
220V/50Hz |
CAD File Format: |
HP-GL |
Model: |
GML3 |
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
100 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
New Good Garment Paper Pattern Cutting Plotter Vertical Type |
Printing Materials: |
White Paper,Kraft, Etc |
Cutting Size: |
1250mm To 2200mm |
Paper Size: |
1300mm To 2300mm |
Printing Tool: |
Contious Big Capacity H801 Ink Catridge |
Ink Cartridge Type: |
Continuous Ink Catridge, No Need Replacement, Can Refill The Ink |
Printing Resolution: |
150-600DPI, Optional And Settable On Menu |
Power Supply Voltage: |
220V/50Hz |
CAD File Format: |
HP-GL |
Model: |
GML3 |

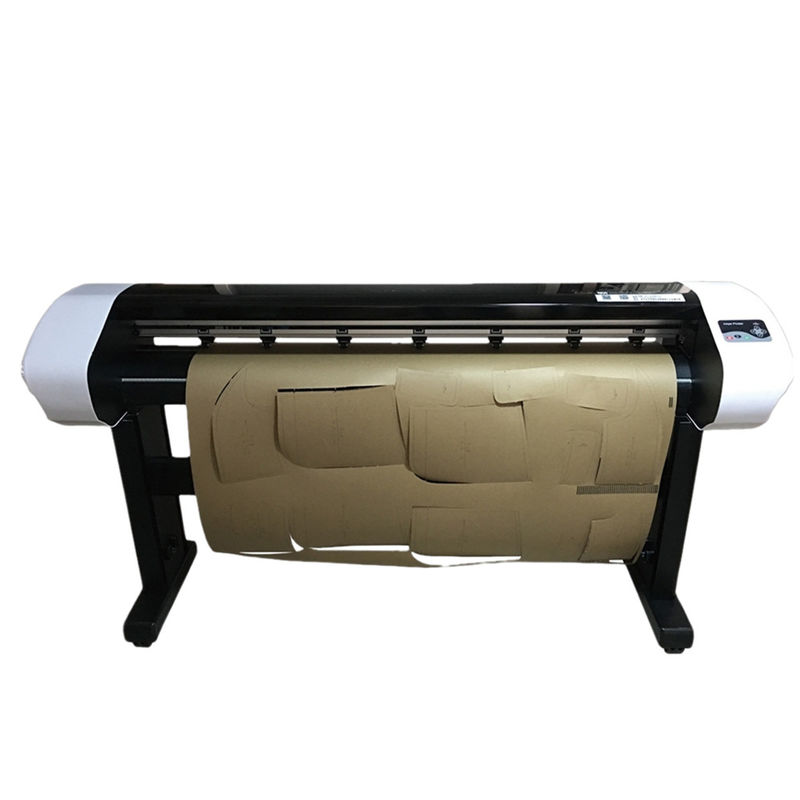

Advanced hot and practical paper pattern cutting solution for garment manufacturing with widths ranging from 190cm to 250cm.
| Product Model | GM125L3 | GM170L3 | GM190L3 | GM220L3 |
|---|---|---|---|---|
| Maximum Printing Width | 125cm | 170cm | 190cm | 220cm |
| Ink Type | 2 spray/4 spray HP universal ink cartridge HP45/6145A | |||
| Printing Density | 300-600D (optional ink-saving mode) | |||
| Printing Capacity | 200-230 square meters/hour (four-jet) | |||
| Line Quality | Precise, smooth, seamless | |||
| Software Compatibility | HPGL (special format can be customized) | |||
| Paper Feeding | Precise paper feeding technology with invisible digital coding induction system | |||
| Paper Loading | Front paper receiving and placing system | |||
| Paper Receiving Mode | Automatic collecting or no-collecting printing for fast pattern production | |||
| Host Structure | American all-metal high-rigidity wear-resisting structure | |||
| Intelligent Ink Car | Automatic origin record, servo control, ink consumption monitoring | |||
| Paper Requirements | General paper (30g-250g) | |||
| Input Voltage | AC220/110V 60HZ power not less than 400W | |||
| Communication Port | USB/interface shared printing | |||
| Command Format | HP-GL | |||
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Our GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world-class advanced technology with Chinese manufacturing excellence.
We employ a novel design approach distinct from traditional domestic cutting machines, fully embodying the "good at core, simple in shape" design principle. Following the introduction of the first continuous drum cutter in central China, we have successively developed specialized cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI capitalizes on the global manufacturing shift to central regions by maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We firmly believe that "innovation" is the eternal driving force behind GEMEI's development.
