2500x1800mm Cutting Scope Automatic Roll Feeder Fabric Cutting Machine with 3.5KW Power

Name: 2500x1800mm Cutting Scope Automatic Roll Feeder Fabric Cutting Machine with 3.5KW Power
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Price: $15,000.00/sets 1-2 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                large textile fabric cutting machine, automatic CNC cutting machine with roll feeder, 2500x1800mm digital fabric cutter


Features:	Fabric Cutter And Auto Materials Feeding	Applicable Industries:	Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location:	Viet Nam	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	2 Years	Core Components:	Engine, Motor, Drivers And Motherboard
Condition:	New	Application:	Clothing,Footwear,Bags, Etc Desgin And Cutting
Automatic Grade:	Automatic	Production Capacity:	N/A
Voltage:	AC 220V/380V±10%, 50Hz/3.5KW	Power:	3.5KW
Dimension(LWH):	342023501220mm	Weight:	1350 KG
Warranty:	1 Year	Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops	Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade	Cutting Scope:	2500*1800mm
Cutting Thickness:	≤35mm	Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342025501220mm	Product Name:	Fabric Cutting Machine Automatic Paper Roll Feeding Cutter

Features:	Fabric Cutter And Auto Materials Feeding
Applicable Industries:	Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location:	Viet Nam
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard
Condition:	New
Application:	Clothing,Footwear,Bags, Etc Desgin And Cutting
Automatic Grade:	Automatic
Production Capacity:	N/A
Voltage:	AC 220V/380V±10%, 50Hz/3.5KW
Power:	3.5KW
Dimension(LWH):	342023501220mm
Weight:	1350 KG
Warranty:	1 Year
Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops
Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade
Cutting Scope:	2500*1800mm
Cutting Thickness:	≤35mm
Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342025501220mm
Product Name:	Fabric Cutting Machine Automatic Paper Roll Feeding Cutter

Product Description

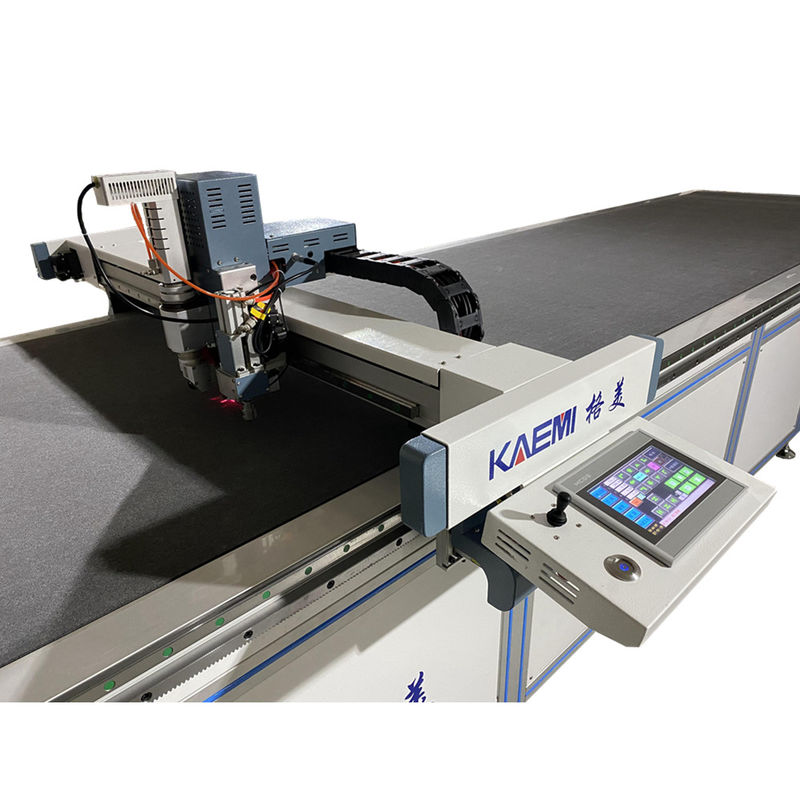

2500*1800mm Cutting Scope Automatic Textile Fabric Cutting Machine with Roll Feeder

Product Overview

The 1825 Textile Fabric Cutting Machine with Automatic Paper Roll Feeding Cutter is a high-precision industrial cutting system designed for efficient fabric processing across multiple industries.

Key Features

Continuous Feeding System
Independent Operator Touch Screen Control
Various Scissors and Punching Devices
Digital Image Cutting Positioning System
Modular Partition Table and All-Aluminum Profile Fuselage
Imported Servo Motor and Drive System
Remote Wireless Remote Control Operating System
Intelligent Suction Zoning System

Technical Specifications

Model	GM-2516DK5	GM-2518DK5	GM3016DK5
Cutting Window (Fabric Scope)	2500*1600mm	2500*1800mm	3000*1600mm
Overall Dimension (mm)	342023501220	342025501220	392023501220
Materials Fasten	Vacuum Adsorption
Max Cutting Thickness	≤35mm
Cutting Materials	Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials)
Cutting Speed	100mm~1200mm/s (Speed Varies According to Cutting Materials)
Pen Type/Knife Type	Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M (Can buffer more than 1 page)
File Formats	DXF/HPGL/HPG/PLT Formats Compatible
Control Panel	Color Multilingual Touch Screen
Feeding Way	Roller and Crawler Feed Automatically
Supply Voltage	AC 220V/380V±10%, 50Hz
Fuse Value	30A/35A
Working Environment	Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation
Location Mode	Cross Laser, CCD Positioning
Power Consumption	Control Part: 2.2KW/h, Vacuum Part: 2.2-7.5KW/h
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting

Product Images

Manufacturer Information

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. The company specializes in the research and development, production, sales and service of automation equipment for the clothing, bags and shoes industries. Gemei is committed to providing CAM/CAD integrated solutions and is recognized as a high-tech enterprise and software enterprise in Hubei Province.

Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. The company combines world advanced technology with Chinese manufacturing expertise, featuring innovative designs that emphasize core functionality and simple operation.

Packaging & Delivery

Exhibition & Trade Shows

Certifications & Quality Standards

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Products are typically packed in wooden cases according to export standards, with customization available based on your specific requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize machines according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.

Q: What is your lead time?

A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for production and delivery.
