2500x1800mm Auto Materials Feeding Fabric Cutting Machine with 35mm Cutting Thickness for Garment CAD

Name: 2500x1800mm Auto Materials Feeding Fabric Cutting Machine with 35mm Cutting Thickness for Garment CAD
Brand: Wuhan Gemei Joint Technology Co., Ltd.
SKU: GM2516DK5
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Certification: CE,CCC,ISO9001,etc

Model Number: GM2516DK5

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $15,000.00/sets 1-2 sets

Packaging Details: Professional Wooden Case for Import and Export(with Official Chop)

Delivery Time: 5-10 Working Days

Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)

Supply Ability: 50 Sets Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                auto materials feeding cnc fabric cutter, 2500x1800mm cad fabric cutting machine, 3.5KW 2518 cad fabric cutting machine


Features:	Fabric Cutter And Auto Materials Feeding	Applicable Industries:	Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location:	Viet Nam	Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard	Condition:	New
Application:	Clothing,Footwear,Bags, Etc Desgin And Cutting	Automatic Grade:	Automatic
Production Capacity:	N/A	Voltage:	AC 220V/380V±10%, 50Hz/3.5KW
Power:	3.5KW	Dimension(LWH):	342023501220mm
Weight:	1350 KG	Warranty:	1 Year
Product Name:	Fabric Textile Cutting Machine Garment CAD Fabric Cutter	Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops	Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade	Cutting Scope:	2500*1600mm
Cutting Thickness:	≤35mm	Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342023501220mm

Features:	Fabric Cutter And Auto Materials Feeding
Applicable Industries:	Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location:	Viet Nam
Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard
Condition:	New
Application:	Clothing,Footwear,Bags, Etc Desgin And Cutting
Automatic Grade:	Automatic
Production Capacity:	N/A
Voltage:	AC 220V/380V±10%, 50Hz/3.5KW
Power:	3.5KW
Dimension(LWH):	342023501220mm
Weight:	1350 KG
Warranty:	1 Year
Product Name:	Fabric Textile Cutting Machine Garment CAD Fabric Cutter
Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops
Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade
Cutting Scope:	2500*1600mm
Cutting Thickness:	≤35mm
Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342023501220mm

Product Description

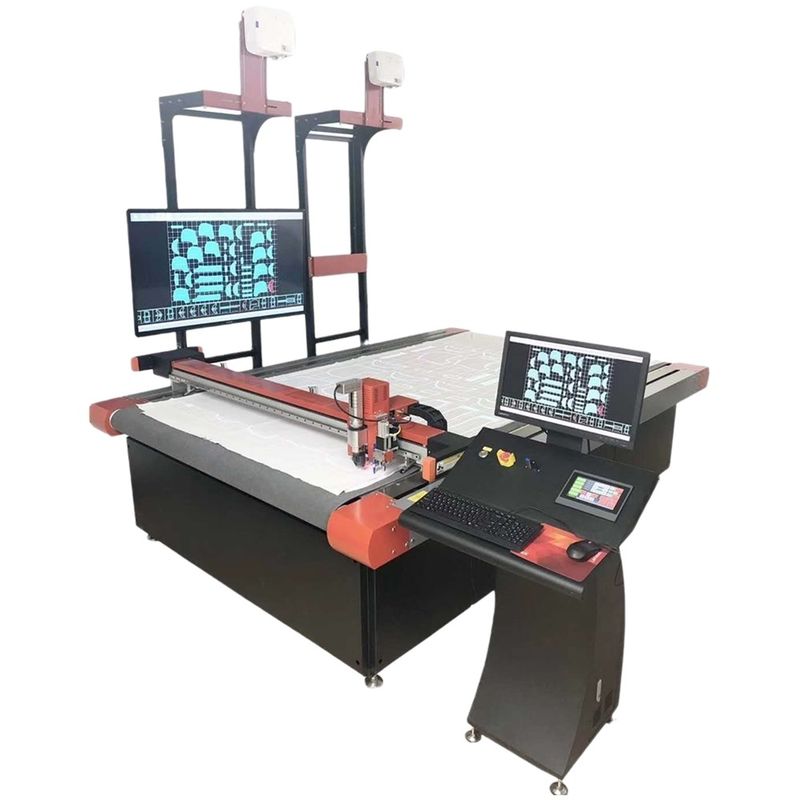

2518 Garment CAD Fabric Cutting Machine with Auto Materials Feeding

Product Overview

The GM-2518DK5 Garment CAD Fabric Cutting Machine features an advanced continuous feeding system and precision cutting technology for industrial fabric processing applications.

Key Features

Continuous Feeding System for uninterrupted operation
Independent Operator Touch Screen Control
Multiple Scissors and Punching Devices
Digital Image Cutting Positioning System
Modular Partition Table with All-Aluminum Profile Fuselage
Imported Servo Motor and Drive System
Remote Wireless Control Operating System
Intelligent Suction Zoning System

Technical Specifications

Model	GM-2516DK5	GM-2518DK5	GM3016DK5
Cutting Window (Fabric Scope)	2500*1600mm	2500*1800mm	3000*1600mm
Overall Dimension (mm)	342023501220	342025501220	392023501220
Materials Fasten	Vacuum Adsorption
Max Cutting Thickness	≤35mm
Cutting Materials	Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials)
Cutting Speed	100mm~1200mm/s (Speed Varies According to Cutting Materials)
Tool Types	Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M (Can buffer more than 1 page)
File Formats	DXF/HPGL/HPG/PLT Formats Compatible
Control Panel	Color Multilingual Touch Screen
Feeding Way	Roller and Crawler Feed Automatically
Supply Voltage	AC 220V/380V±10%, 50Hz
Fuse Value	30A/35A
Working Environment	Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation
Location Mode	Cross Laser, CCD Positioning
Power Consumption	Control Part: 2.2KW/h, Vacuum Part: 2.2-7.5KW/h
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting

Product Images

Manufacturer Information

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. The company specializes in research and development, production, sales and service of automation equipment for clothing, bags and shoes industries.

As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. The company holds multiple software copyright and patent certificates for its cutting machine technology.

Packaging & Delivery

Exhibition & Trade Shows

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.

Q: What is your lead time?

A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for production.
