Highlight:
1500x1200mm inkjet cutting plotter
, paper sheet inkjet printer cutter
Type: |
Inkjet Printer |
Print Dimension: |
1500*1200 |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1900*1700*800mm |
Weight: |
489 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Ink Box, Universal Type |
Key Selling Points: |
Multifunctional |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
China Factory Paper Pattern Cutting Plotter Inkjet Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1500*1200mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
1900*1700*800mm |

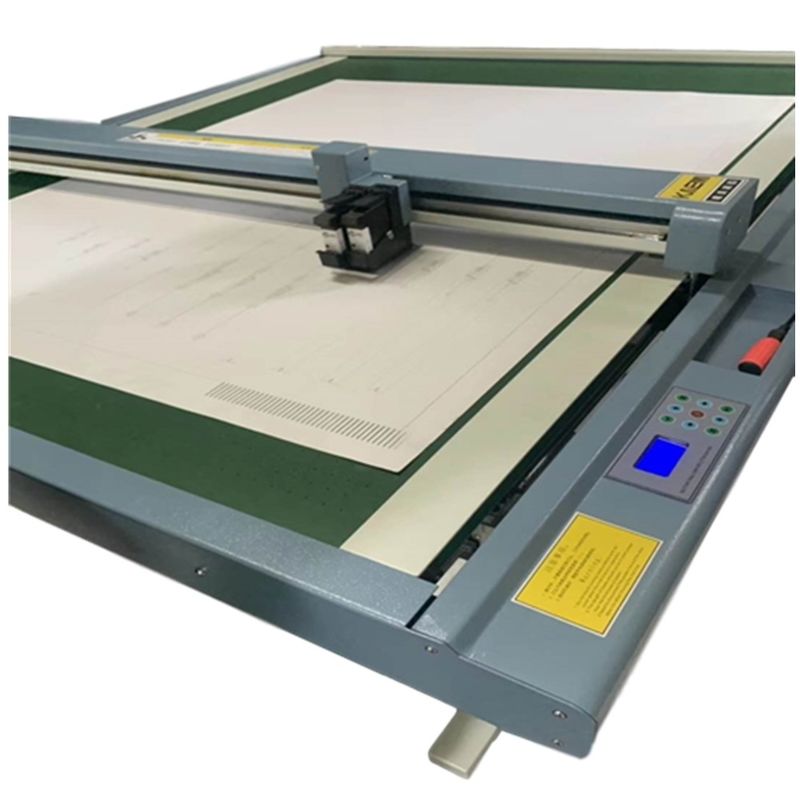

1500x1200mm Inkjet Cutting Plotter Paper Sheet Flatbed Inkjet Printer Cutter
High-performance flatbed inkjet printing and cutting machine designed for precision pattern making in various industrial applications.
Main Features
- Double nozzle high-speed printing with cutting double track tracking system
- Intelligent line subdivision speed control (linear, arc, sharp, arc)
- Smart identification system for external contour, repeated lines, and cutting priority processing
- Automatic paging with cutting starting point and sequential display
- Paper jam detection, automatic nozzle cleaning, and machine fault detection systems
Technical Specifications
| Model |
GM-1209P3 |
GM-1509P3 |
GM-1510P3 |
GM-1512P3 |
| Effective Cut Area |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Product Size (mm) |
1600*1280*1100 |
1900*1280*1100 |
1900*1455*1100 |
1900*1700*1100 |
| Maximum Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
Medium Attachment: Vacuum Adsorption
Maximum Cut Thickness: 3mm
Cutting Materials: White Paper Board, Kraft Paper, Plastic Board, Red Cardboard, Fiberboard, etc.
Printing Speed: 75 m²/h
Drawing/Cutting: HP45 Ink Cartridge / Special Tungsten Steel Blade
Precision: 0.01mm or less
Transport Port: USB/LAN
Command System: International Standard HP/GL (Compatible with domestic and international CAD online)
Control Interface: LCD Display + Touch Button (Switch between Chinese and English)
Motor/Drive: High-Precision Subdivision Motor, Three-Phase Hybrid Drive
Working Voltage: AC 220V/110V + 10%, 50Hz
Work Environment: Temperature: -30~50℃ / -22~122℉; Humidity: 10%-95% RH
Cutting Paper: 150g-500g/m² recommended (can also cut 50-100g/m² paper)
Application Industries: Clothing, Footwear, Luggage, Handbags, Furniture, Car Decoration, Paper Boxes, etc.
Standard Configuration
- High Power Suction Air Pump *1
- Imported Leather Mesa Pad *1 (Factory laid and fixed)
- HP45 Ink Cartridge *2
- Special Tungsten Steel Blade *1
Optional Dual-Knife Version
Enables paper pattern scratching and finishing shaft by switching between full knife and half knife simultaneously. Includes convertible knife cover to pen cover for writing and drawing. Serves as economic reserve for ink supply when cartridge runs out.
Product Images
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development zone - Wuhan Linkong Economic Development Zone. We specialize in research, development, production, sales, and service of automation equipment for clothing, bags, and shoe industries. Our mission is "changing traditional industries with high technology," providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises.
Gemei is a certified high-tech enterprise and software enterprise in Hubei Province, recognized as an "information port" certification enterprise and entrepreneurship enterprise for overseas students in Wuhan City.
Since establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Our GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world advanced technology with Chinese manufacturing advantages. We maintain a research and development team composed of doctors, senior engineers, and other high-quality talents, with "innovation" as our core development principle.
Packing & Delivery
Exhibition & Trade Shows
Certifications & Quality Standards
Frequently Asked Questions
- Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience.
- Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available per customer requirements.
- Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to specific requirements.
- Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
- Q: What is your lead time?
A: Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
