Home > products > Flatbed Cutter Plotter > KAEMI Paper Pattern Sticker Film Flatbed Cutter Plotter CAD Garment Cutter Plotter

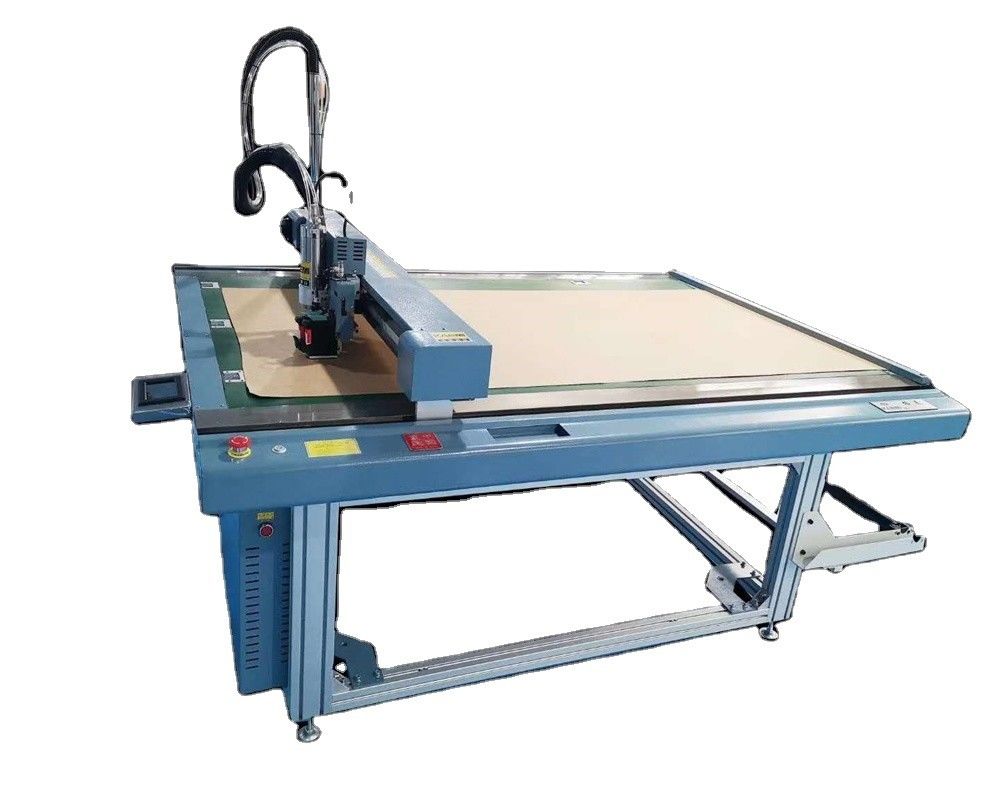

KAEMI Paper Pattern Sticker Film Flatbed Cutter Plotter CAD Garment Cutter Plotter

Name: KAEMI Paper Pattern Sticker Film Flatbed Cutter Plotter CAD Garment Cutter Plotter
Brand: Wuhan Gemei Joint Technology Co., Ltd.
SKU: GM1509P5
Price: 2.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Certification: CE,CCC,ISO9001,etc

Model Number: GM1509P5

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $3,215.00--$3,799.00/sets 1-10 Sets

Packaging Details: Professional Wooden Case for Import and Export(with Official Chop)

Delivery Time: 3-7 Working Days

Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)

Supply Ability: 500 Sets Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1200x900mm flatbed cutter plotter, 1200mm/s cad garment cutter plotter


Type:	Inkjet Printer	Print Dimension:	1200*900
Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton	Condition:	New
Plate Type:	Flatbed Printer	Use:	Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter
Automatic Grade:	Automatic	Color & Page:	Single Color
Voltage:	AC 220V/110V±10%, 50Hz/3.5KW	Dimensions(LWH):	170015701100mm
Weight:	405 KG	Warranty:	1 Year
Ink Type:	HP45 Ink Box Universal Type	Key Selling Points:	Multifunctional
Warranty Of Core Components:	2 Years	Core Components:	Motor, Engine, Drivers And Motherboard
Cutting Machine Frame And Case:	Digital Gasket Flatbed Cutter Plotter CAD Garment Cutter	Machine Material:	All Aluminum Countertops
Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc	Cut Tools:	HP45 Ink Box,Tungsten Steel Blade
Cutting Scope:	1200*900mm	Cutting Thickness:	≤3mm
Cutting Speed:	1200mm/s Max	Cutting Machine Size:	170015701100mm
Product Name:	Garment Paper Pattern Cutting Machine Inkjet Pattern Cutter

Type:	Inkjet Printer
Print Dimension:	1200*900
Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Condition:	New
Plate Type:	Flatbed Printer
Use:	Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter
Automatic Grade:	Automatic
Color & Page:	Single Color
Voltage:	AC 220V/110V±10%, 50Hz/3.5KW
Dimensions(LWH):	170015701100mm
Weight:	405 KG
Warranty:	1 Year
Ink Type:	HP45 Ink Box Universal Type
Key Selling Points:	Multifunctional
Warranty Of Core Components:	2 Years
Core Components:	Motor, Engine, Drivers And Motherboard
Cutting Machine Frame And Case:	Digital Gasket Flatbed Cutter Plotter CAD Garment Cutter
Machine Material:	All Aluminum Countertops
Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade
Cutting Scope:	1200*900mm
Cutting Thickness:	≤3mm
Cutting Speed:	1200mm/s Max
Cutting Machine Size:	170015701100mm
Product Name:	Garment Paper Pattern Cutting Machine Inkjet Pattern Cutter

Product Description

KAEMI Hot Selling Digital Gasket Flatbed Cutter Plotter CAD Garment Cutter

Main Features

1. Double Nozzle High-Speed Printing, Cutting Double Track Tracking System

2. Intelligent (Linear, Arc, Sharp, Arc) Line Subdivision Speed Control System

3. Intelligent Identification (External Contour, Repeated Lines, Cutting) Priority Processing System

4. Automatic Paging, Cutting Starting Point And Sequential Display System

5. Paper Jam Abnormal Detection, Automatic Nozzle Cleaning, Machine Fault Detection System

Specifications
Model	GM-1209P5	GM-1509P5	GM-1510P5	GM-1512P5
Effective Cut Area	1200*900mm	1500*900mm	1500*1000mm	1500*1200mm
Product Size (mm)	170015701100	200015701100	200015701100	200017701100
Maximum Speed	1200mm/s	1200mm/s	1200mm/s	1200mm/s
Medium Attachment	Vacuum Adsorption
Maximum Cut Thickness	3mm
Cutting Material	White Paper Board, Kraft Paper, Plastic Board, Red Cardboard, Fiberboard, Etc
The Printing Speed	75 ㎡ / h
Drawing/Cutting	Hp45 Ink Cartridge/Special Tungsten Steel Blade
Precision	0.01 Mm Or Less
Transport Port	USB/LAN
Command System	International Standard :HP/GL(Compatible With Domestic And International CAD Online)
The Control Interface	LCD Display+ Touch Button (Switch Between Chinese And English)
Motor/Drive	High-Precision Subdivision Motor, Three-Phase Hybrid Drive
Working Voltage	Ac 220 v / 110 v + 10%, 50 Hz
Work Environment	Temperature :-30~50℃ / -22~122℉;Humidity: 10%--95% Rh
Cutting Paper	150 g - 500 - g / ㎡ Recommended(Can Also Cut 50 to 100g/ ㎡Paper)
Application Industry	Clothing,Footwear, Luggage, Handbags, Furniture Industries, Car Decoration, Paper Boxes, Etc
Standard Configuration	High Power Suction Air Pump 1;Imported Leather Mesa Pad 1 (Factory Laid And Fixed);HP45 Ink Cartridge 2;Special Tungsten Steel Blade 1
Optional Dual-Knife Version	It Can Be Used For Paper Pattern Scratching And Finishing Shaft By Switching Between Full Knife And Half Knife At The Same Time. In Addition, a Knife Cover Can Be Changed Into a Pen Cover For Writing And Drawing. It Can Be Used As An Economic Reserve To Solve The Urgent Need Of Ink When The Ink Cartridge Runs Out

Product Description

Company Profile

Wuhan Gemei Joint Technology Co., Ltd.

is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing,bags and shoes. The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM / CAD integrated solutions for garment,luggage,footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Packing & Delivery

Exhibition

Certifications

FAQ

1. Q: Are you a manufacturer?

A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for over 10 years.

2. Q: How do you pack these products?

A: Usually packed in wooden case and can pack according to export standard or your requirement.

3. Q: Is it customizable?

A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.

4.Q: After-sales service

A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype

5.Q: What is your lead time?

A: Spot goods usually take 2-4 days, and customization takes 5-7 days
