Paper Pattern Inkjet Flatbed Cutting Machine
Model: 1600*1280*800mm Blue Frame Silver Case
Product Overview
GM-1209P3 Paper Pattern Inkjet Flatbed Paper Plotter Inkjet CAD Cutter
Key Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
Technical Specifications
| Model |
GM-1209P3 |
GM-1509P3 |
GM-1510P3 |
GM-1512P3 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension |
1600*1280*800mm |
1900*1280*800mm |
1900*1455*800mm |
1900*1700*800mm |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Printing Speed |
60m²/h |
| Plot/Cut Tool |

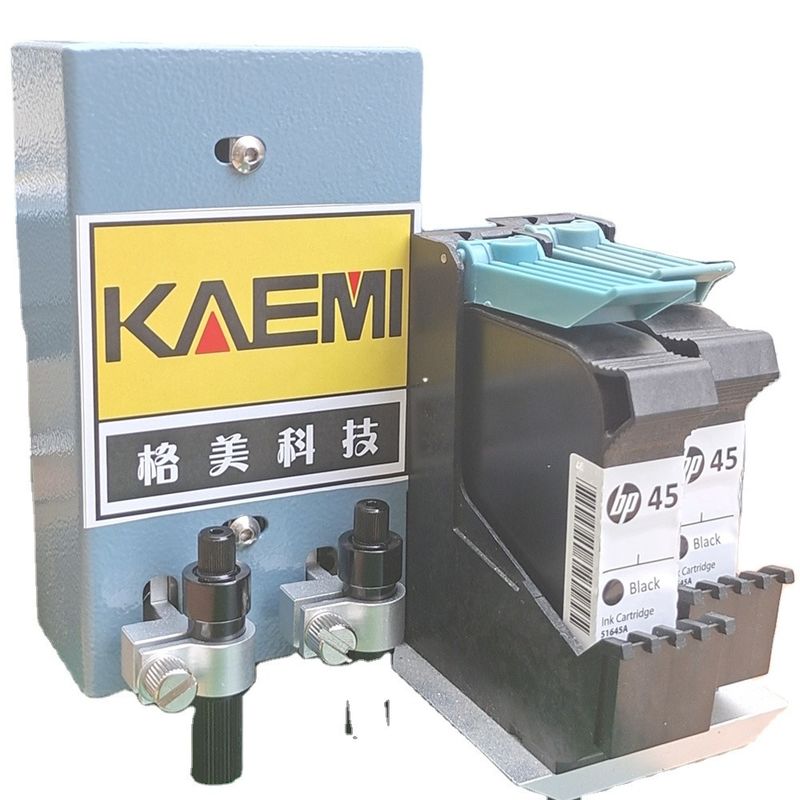

HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ (-22~122℉); Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/m² |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Product Gallery
Packaging & Shipping
Related Products
Company Information
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages.
Our innovative design differs from traditional domestic cutting machines, fully embodying the design principle of "good at core, simple in shape." After developing the first continuous drum cutter in central China, we successively created sample cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend of world manufacturing industry transferring to central regions, maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We insist that "innovation" is the eternal driving force behind GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards or your specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: After-sales service
A: Yes, we provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Stock items typically ship in 2-4 days, while custom orders take 5-7 days.
