Highlight:
flatbed cutting plotter 1400x1000mm
, auto layout inkjet cutting plotter
, flatbed pattern inkjet cutting plotter
Type: |
Inkjet Printer |
Print Dimension: |
1400*1000mm |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producto |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1900*1455*800mm |
Weight: |
459 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Universal Type |
Key Selling Points: |
Multifunctional |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
Graph Contour Pattern Automatic Paper Cutting Plotter Inkjet Cutter |
Cutting Machine Frame And Case: |
Blue Frame+Red And Black Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1400*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1480*1100mm |
Special Functions: |
Rollar Paper Feeding Automatic Paper Feeding |

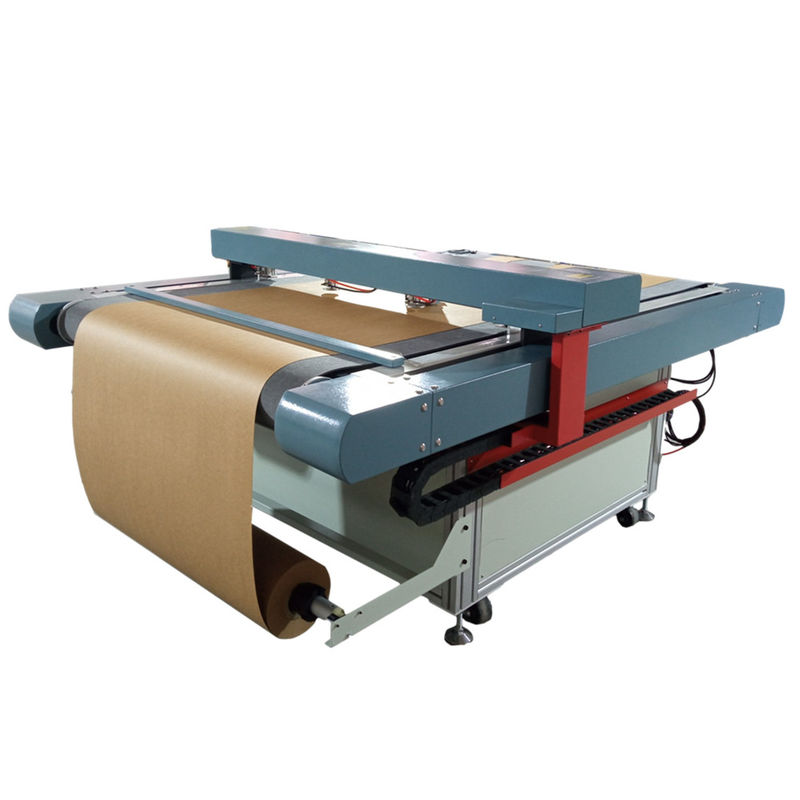

GM1410GP Automatic Paper Feeding Flatbed Pattern Cutting Plotter
Auto Layout Graph Contour Pattern Automatic Paper Cutting Plotter Inkjet Cutter with 1400x1000mm working area
Main Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
- Roller Automatic Paper Feeding System
Dual Knife Version Optional - can perform Full Cut and Half Cut simultaneously or use One Knife One Pen Holder for inkjet cutting and pen drawing at the same time (Dual knife version adds $400 USD)
Technical Parameters
| Model |
GM1016-P6SL |
GM1510-P6SL |
GM1512-P6SL |
GM1812-P6SL |
| Cutting Scope |
1000*1600 |
1400*1000 |
1500*1200 |
1800*1200 |
| Outer Dimension |
1920*2290*1100 |
2420*1690*1100 |
2420*1890*1100 |
2720*1890*1100 |
| Cutting Speed |
2500-5000mm/s |
| Cutting Thickness |
Max 3mm (Cutting Depth Varies From Material To Material) |
| Cutting Materials |
White Paper Board, Kraft Paper, Plastic Board, Red Cardboard, Fibreboard |
| Paper Feeding Method |
Auto Paper Feeding, Roller, Track Automatically Feed Paper |
| Print/Cut |
Hp45 Ink Cartridges/Tungsten Cutting Blade |
| Fastening Method |
Vacuum Adsorption |
| Repeat Precision |
≤0.01mm |
| File Formats |
DXF/HPGL/HPG/PLT Etc Files Compatibles |
| Printing Speed |
90㎡/h |
| Working Voltage |
Ac220v/380v±10%, 50hz |
| Motor/Drivers |
Imported Mitsubishi Servo Motor, Double Guide Beam |
| Control Panel |
9 Keys LCD Display, Multilanguages |
| Communication Port |
LAN Port/SD Card |
| Compatible Software |
All Kinds Of CAD, Computer Template CAD Design And Cutting Machine Can Be Connected At The Same Time |
| Application Areas |
Electric Power Industry, Clothing Industry, Footwear Industry, Bags And Handbags, Furniture Industry, Automobile Decoration, Paper Boxes, Etc |
Note: Model Size Can Be Customized, Specific Parameters Subject To Actual Shipment.
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is a high-tech enterprise and software enterprise in Hubei Province, with multiple software copyright and patent certificates.
Packing & Delivery
Exhibition & Events
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: What about after-sales service?
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
