Highlight:
dual head flatbed cutter plotter
, hp45 ink cartridge cad cutting plotter
Type: |
Inkjet Printer |
Print Dimension: |
1500*1000mm |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Or Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5K |
Dimensions(L*W*H): |
2000*1570*1100mm |
Weight: |
412 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Ink Box Universal Type |
Key Selling Points: |
Multifunctional |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
HP45 Ink Cartridge Fast Printing CAD Paper Pleating Cutting Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1500*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1570*1100mm |

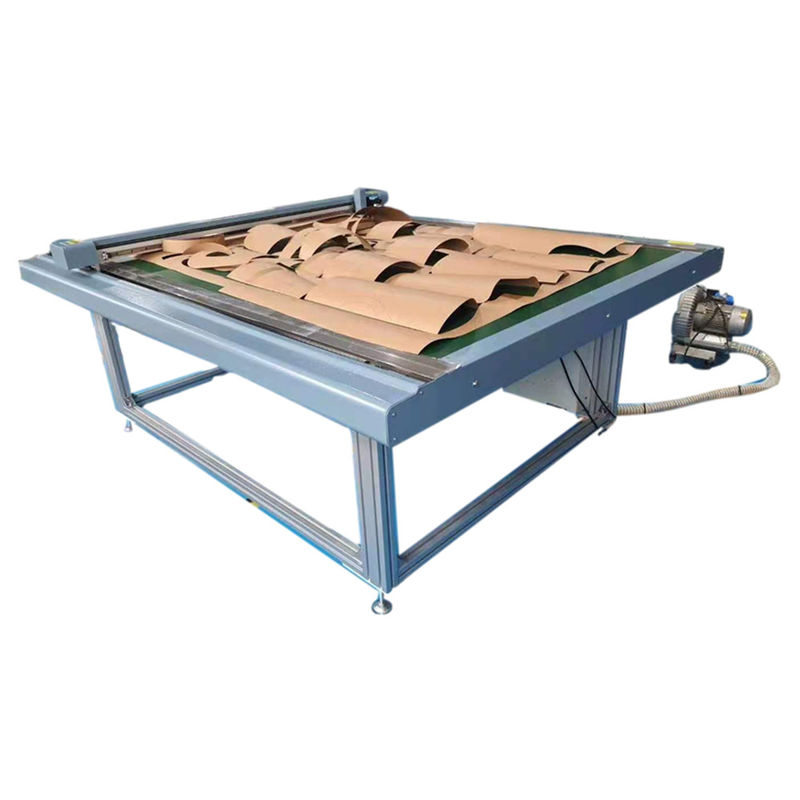

Dual Head HP45 Ink Cartridge Flatbed Cutter Plotter
High-speed CAD paper printing and cutting plotter with dual nozzle system for industrial applications
Key Features
- Double nozzle high-speed printing with cutting double track tracking system
- Intelligent line subdivision speed control (linear, arc, sharp, arc)
- Smart identification system for external contour, repeated lines, and cutting priority processing
- Automatic paging with cutting starting point and sequential display
- Paper jam detection, automatic nozzle cleaning, and machine fault detection systems
Technical Specifications
| Model |
GM-1209P5 |
GM-1509P5 |
GM-1510P5 |
GM-1512P5 |
| Effective Cut Area |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Product Size |
1700*1570*1100mm |
2000*1570*1100mm |
2000*1570*1100mm |
2000*1770*1100mm |
| Maximum Speed |
1200mm/s |
| Medium Attachment |
Vacuum Adsorption |
| Maximum Cut Thickness |
3mm |
| Printing Speed |
75㎡/h |
| Drawing/Cutting |
HP45 Ink Cartridge / Special Tungsten Steel Blade |
| Precision |
0.01mm or less |
| Transport Port |
USB/LAN |
| Command System |
International Standard HP/GL |
| Control Interface |
LCD Display + Touch Button (Chinese/English) |
Cutting Materials
White paper board, kraft paper, plastic board, red cardboard, fiberboard, and various industrial materials
Standard Configuration
- High power suction air pump *1
- Imported leather mesa pad *1
- HP45 ink cartridge *2
- Special tungsten steel blade *1
Optional Dual-Knife Version
Enables paper pattern scratching and finishing shaft operations by switching between full knife and half knife. Includes convertible knife/pen cover for writing and drawing applications.
Product Images
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries. As a high-tech enterprise certified by Hubei Province, Gemei provides CAM/CAD integrated solutions and holds multiple software copyright and patent certificates.
Packaging & Delivery
Industry Exhibitions
Quality Certifications
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience.
How do you pack these products?
Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
What is your lead time?
Spot goods typically ship in 2-4 days, while custom orders require 5-7 days for production.
