Highlight:
large format tungsten blade cutter
, flatbed cutter for inkjet printing
, 3mm thickness cutting scope plotter
Type: |
Inkjet Printer |
Print Dimension: |
1500*1200mm |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern And Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
2000*1770*1100mm |
Weight: |
456 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Ink Box Universal Type |
Key Selling Points: |
Multifunctional |
Marketing Type: |
New Product 2020 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
Paper Inkjet Printing Tungsten Blade Cutting Garment Cutter |
Machine Material: |
All Aluminum Countertops |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1500*1200mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1770*1100mm |

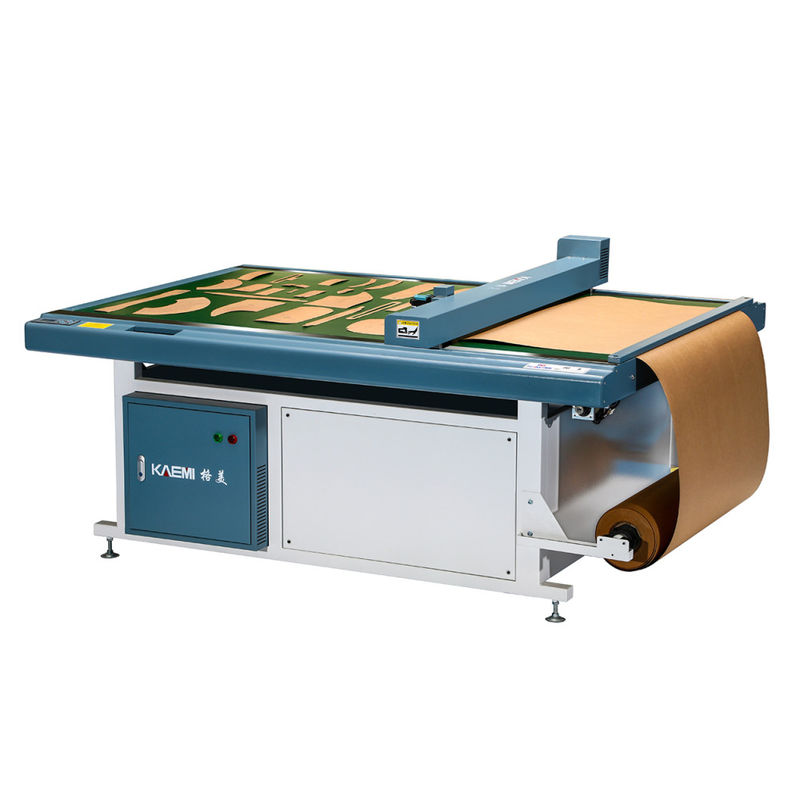

1500*1200mm Cutting Scope Tungsten Blade Cutter for Inkjet Printing ≤3mm Thickness
High-performance inkjet printing and cutting machine with 12mm/s speed and 3mm maximum paper thickness capability for garment cutting applications.
Advanced System Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
Technical Specifications
| Model |
GM-1209P5 |
GM-1509P5 |
GM-1510P5 |
GM-1512P5 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1700*1570*1100 |
2000*1570*1100 |
2000*1570*1100 |
2000*1770*1100 |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Printing Speed |
60m²/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/m² |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Product Gallery
Packaging & Shipping
Related Products
Company Profile
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Our GM series cutting machines combine the essence of Chinese and international technologies, integrating world-class advanced technology with Chinese manufacturing excellence. We employ innovative designs that differ from traditional domestic cutting machines, embodying the design principle of "excellent core performance with simple form."
After introducing the first continuous drum cutter in central China, we successively developed specialized cutting machines for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI strategically positions itself to leverage the global manufacturing industry's transfer to central regions, maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We firmly believe that "innovation" is the eternal driving force behind GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for over 10 years.
Q: How do you pack these products?
A: Usually packed in wooden cases and can be packaged according to export standards or your specific requirements.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, we provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Stock goods typically take 2-4 days, while custom orders require 5-7 days.
