Wuhan Gemei Joint Technology Co., Ltd. whgmkj@126.com 86-133-0717-1022
Product Details
Place of Origin: Hubei, China
Brand Name: KAEMI
Certification: CE,CCC,ISO9001,etc
Model Number: GM1509P6
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $3,499.00--$3,999.00/sets 1-10sets
Packaging Details: Wooden Case Specially Treated and No Problem for Import and Export.
Delivery Time: 2-5 Working Days
Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)
Supply Ability: 500 Sets Per Month
Condition: |
New |
Applicable Industries: |
Garment Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Other, Advertising Company, Other |
Weight (KG): |
350 |
Showroom Location: |
Viet Nam, Indonesia, Pakistan, Bangladesh, South Africa, Kazakhstan, Uzbekistan, Malaysia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2022 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Driver And Motherboard |
Warranty: |
1 Year |
Product Name: |

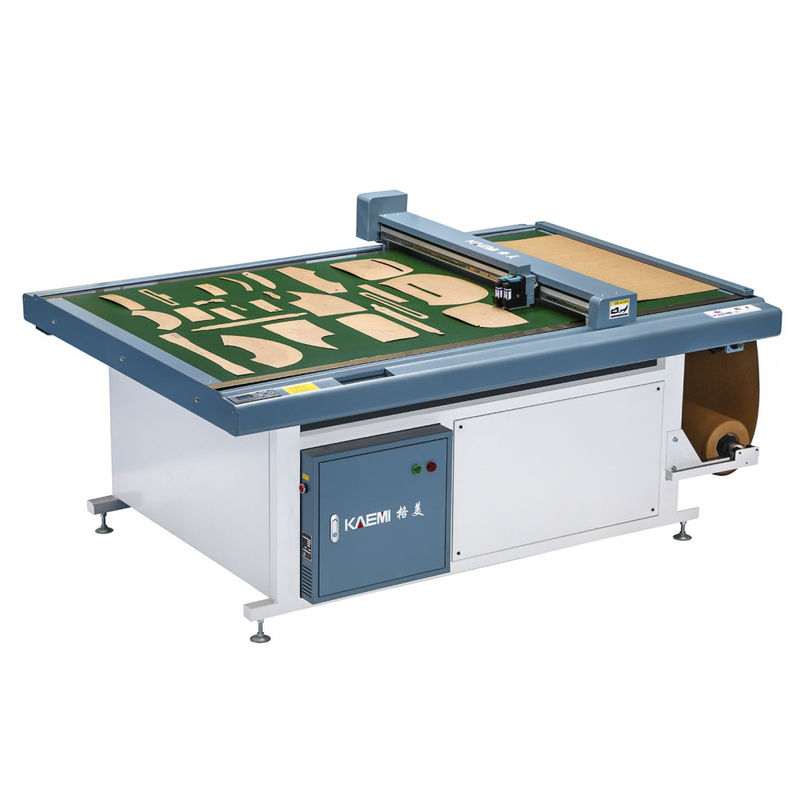

Flatbed Plotter Vinyl Cutter Plotter Machine With Optional Knife |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1500*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1570*1100mm |
Condition: |
New |
Applicable Industries: |
Garment Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Other, Advertising Company, Other |
Weight (KG): |
350 |
Showroom Location: |
Viet Nam, Indonesia, Pakistan, Bangladesh, South Africa, Kazakhstan, Uzbekistan, Malaysia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2022 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Driver And Motherboard |
Warranty: |
1 Year |
Product Name: |
Flatbed Plotter Vinyl Cutter Plotter Machine With Optional Knife |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1500*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
2000*1570*1100mm |
Main Features:
1. Unique Inkjet and Cutting Double Track Tracking System
2. Unique Paper Card Abnormal Monitoring System
3. Cutting Starting Points and Cutting Sequence Display System
4. Automatic Paging System
5. Fault Detection System for Whole Machine
| Model | GM-1209P5 | GM-1509P5 | GM-1510P5 | GM-1512P5 |
| Cutting Window(Fabric Scope) | 1200*900mm | 1500*900mm | 1500*1000mm | 1500*1200mm |
| Overall Dimension(mm) | 1700*1570*1100 | 2000*1570*1100 | 2000*1570*1100 | 2000*1770*1100 |
| Max Speed | 1200mm/s | 1200mm/s | 1200mm/s | 1200mm/s |
| Materials Fasten | Vacuum Adsorption | |||
| Maximum Cutting Thickness | 2mm | |||
| Cutting Materials | White Paper, Kraft, Plastic Board, Fiberboard, etc | |||
| Printing Speed | 60m2/h | |||
| Plot/Cut Tool | HP45 Ink Box,Tungsten Steel Blade | |||
| Precision | ≤0.01mm | |||
| Communication Port | USB/RJ45 Ethernet; Shared Folder Print in LAN | |||
| File Formats | HPGL(Compatible with Domestic and Interntional CAD Online) | |||
| Control Panel | 9 Keys and LED Display(Chinese and English Switch) | |||
| Motor/Driver | High Performance 3 Phrase Step-motor | |||
| Supply Voltage | AC 220V/110V±10%, 50Hz | |||
| Working Environment | Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH | |||
| Paper Thickness | 150g-500g/m2 | |||
| Application Areas | Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc | |||
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.
1. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for over 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
