Home > Products > Inkjet Plotter Printer > Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting

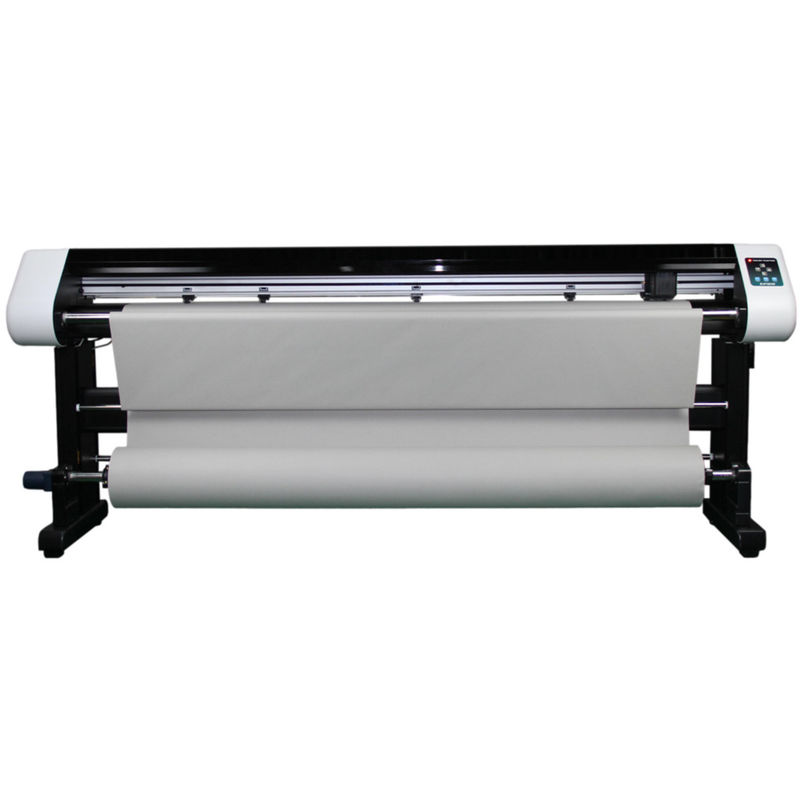

Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Price: $1,889.00/sets 1-4 sets

Get Best Price
Product Details
Highlight:

lightweight HP45 inkjet CAD plotter

,

garment plotting inkjet printer

,

100kg capacity inkjet plotter

Condition:
New
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):
100
Showroom Location:
Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Motor, Mother Board And Drivers
Warranty:
1 Year, 1 Year Warranty For Full Machine
Product Name:
2 To 4 Printing Head HP45 Inkjet CAD Printing Plotter Garment Plotter
Printing Materials:
White Paper,Kraft, Etc
Cutting Size:
1650mm To 2050mm
Paper Size:
1700mm To 2100mm
Printing Tool:
Universal HP45 Ink Box Or Cartridge
Ink Cartridge Type:
HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:
150-600DPI, Optional And Settable On Menu
Power Supply Voltage:
220V/50Hz
CAD File Format:
HP-GL,DXF, PLT, Etc
Condition:
New
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):
100
Showroom Location:
Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Motor, Mother Board And Drivers
Warranty:
1 Year, 1 Year Warranty For Full Machine
Product Name:
2 To 4 Printing Head HP45 Inkjet CAD Printing Plotter Garment Plotter
Printing Materials:
White Paper,Kraft, Etc
Cutting Size:
1650mm To 2050mm
Paper Size:
1700mm To 2100mm
Printing Tool:
Universal HP45 Ink Box Or Cartridge
Ink Cartridge Type:
HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:
150-600DPI, Optional And Settable On Menu
Power Supply Voltage:
220V/50Hz
CAD File Format:
HP-GL,DXF, PLT, Etc
Product Description
Lightweight HP45 Inkjet CAD Printing Plotter for Garment Plotting
High-performance inkjet CAD printing plotter specifically designed for garment industry applications, featuring multiple printing head configurations and advanced servo control technology.
Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 0 Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 1
Key Features
  • High-speed Servo Control with Full Closed-loop Positioning
  • Independent Output Manager with Automatic File Queuing
  • Advanced SOPC Technology Implementation
  • Breakpoint Resume Function for Reliable Data Transmission
  • Automatic Online Printing Capability
  • 2, 3, or 4 Printing Heads Configuration Options
Technical Specifications
Type Double Spray Three Spray Four Spray
Product Model B-165-2/B-185-2/B-205-2 B-160-3/B-180-3/B-200-3 B-155-4/B-175-4/B-195-4
Printing Width (cm) 165/185/205 160/180/200 155/175/195
Feeding Paper Width (cm) 170/190/210 170/190/210 170/190/210
Printing Speed: Two-way high speed 93 m²/h; Two-way high speed 131 m²/h; Two-way high speed 163 m²/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600 DPI
Nozzle Type: HP45A
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper roll with diameter of 28cm
Paper Feeding: Hidden infrared precise paper feeding system, continuous 700 meters without deviation
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers can separately control printing
Power Supply: 220V/50Hz
Machine Structure: Die standardized metal structure, high precision and long life
Product Gallery
Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 2 Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 3 Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 4 Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 5 Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 6 Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 7
Packaging & Shipping
Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 8
Manufacturer Information
Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 9
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining multiple software copyright and patent certificates. Combining the essence of Chinese and foreign technologies, GM series cutting machines feature innovative designs that embody the "good at core, simple in shape" principle. As pioneers in continuous drum cutter technology in central China, we have expanded to develop specialized cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI maintains a dedicated research and development team composed of doctors and senior engineers, firmly believing that "innovation" is the eternal driving force behind our continuous development.
Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 10
Frequently Asked Questions
Lightweight 100KG HP45 Inkjet CAD Printing Plotter with 2 to 4 Printing Heads for Garment Plotting 11
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What after-sales service do you provide?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
