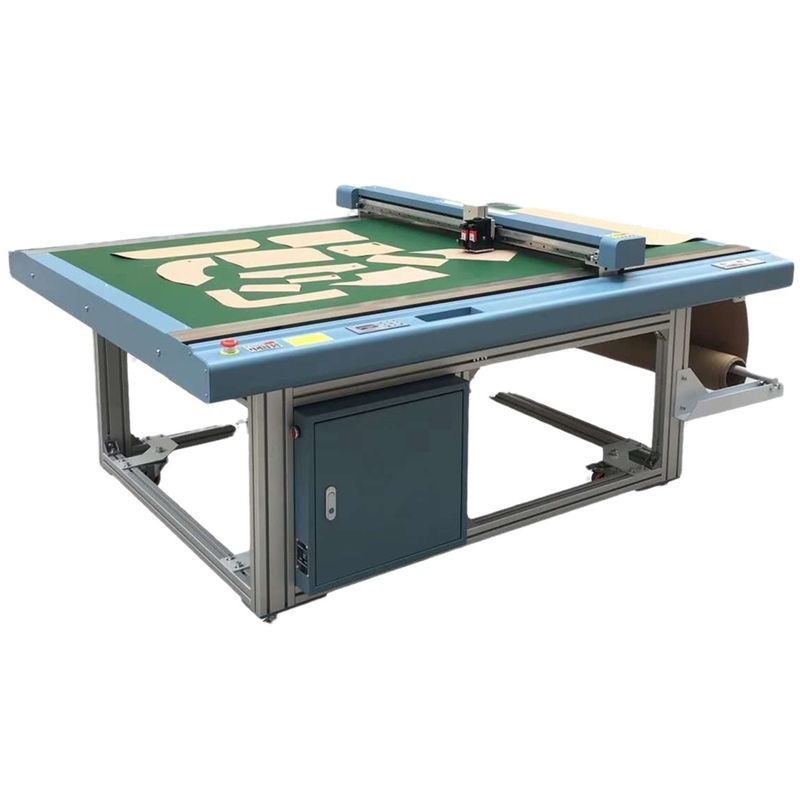

Flatbed Paper Pattern Graph Contour Printing Cutting Machine
Advanced apparel CAD cutter designed for precision pattern printing and cutting applications across multiple industries.
Key Features
- Unique Inkjet and Cutting Double Track Tracking System
- Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display
- Automatic Paging System
- Comprehensive Fault Detection System
Dual Knife Version Available: Perform full cut and half cut simultaneously, or combine inkjet cutting with pen drawing functionality. (Additional $400 USD)
Technical Specifications
| Model |
GM-1209P6 |
GM-1509P6 |
GM-1510P6 |
GM-1512P6 |
| Cutting Window |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimensions |
1705*1445*1000mm |
2005*1445*1000mm |
2005*1445*1000mm |
2005*1645*1000mm |
Performance Parameters
- Maximum Speed: 1200mm/s
- Material Fastening: Vacuum Adsorption
- Maximum Cutting Thickness: 2mm
- Printing Speed: 75㎡/h
- Precision: ≤0.01mm
- Paper Thickness Range: 150g-500g/㎡
Compatible Materials & Applications
White Paper, Kraft Paper, Plastic Board, Fiberboard, and similar materials
Ideal for Garment Manufacturing, Shoemaking, Bag Production, Furniture, Automotive Decoration, Box Cutting, and related industries
System Configuration
- Plot/Cut Tool: HP45 Ink Box, Tungsten Steel Blade
- Communication: USB/RJ45 Ethernet with LAN Shared Folder Printing
- File Formats: HPGL (Compatible with domestic and international CAD systems)
- Control Panel: 9 Keys with LED Display (Chinese/English Switch)
- Motor/Driver: High Performance 3 Phase Step-motor
- Supply Voltage: AC 220V/110V±10%, 50Hz
Working Environment
Temperature: -30°C to 50°C (-22°F to 122°F)
Humidity: 10% to 95% RH
Product Gallery
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and footwear industries.
As a high-tech enterprise certified by Hubei Province and Wuhan City, Gemei is committed to providing CAM/CAD integrated solutions while transforming traditional industries with advanced technology.
Packaging & Delivery
Industry Exhibitions
Certifications & Quality Standards
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience in this field.
How do you pack these products?
Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize equipment according to your specific requirements.
What after-sales service do you provide?
We maintain a professional after-sales team with 24-hour technical support available via phone, email, or Skype.
What is your lead time?
Standard products typically ship within 2-4 days, while custom orders require 5-7 days for completion.
