Highlight:
inkjet cad cutter plotter machine
, fabric pattern cad cutter plotter
, bags pattern cad cutter plotter
Type: |
Inkjet Printer |
Print Dimension: |
1200mm, 1500*1000mm |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producto |
Condition: |
New |
Plate Type: |
Flatbed Printer |
Use: |
Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer, Pattern Template Printer And Cutter |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
AC 220V/110V±10%, 50Hz/3.5KW |
Dimensions(L*W*H): |
1900*1455*800mm |
Weight: |
459 KG |
Warranty: |
1 Year |
Ink Type: |
HP45 Universal Type |
Key Selling Points: |
Multifunctional |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Motor, Engine, Drivers And Motherboard |
Product Name: |
Flatbed Garment Paper Pattern Inkjet Printing Cutter Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1500*1000mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
1900*1455*800mm |
Port: |
Shanghai/Ningbo/Shenzhen, Etc Port |

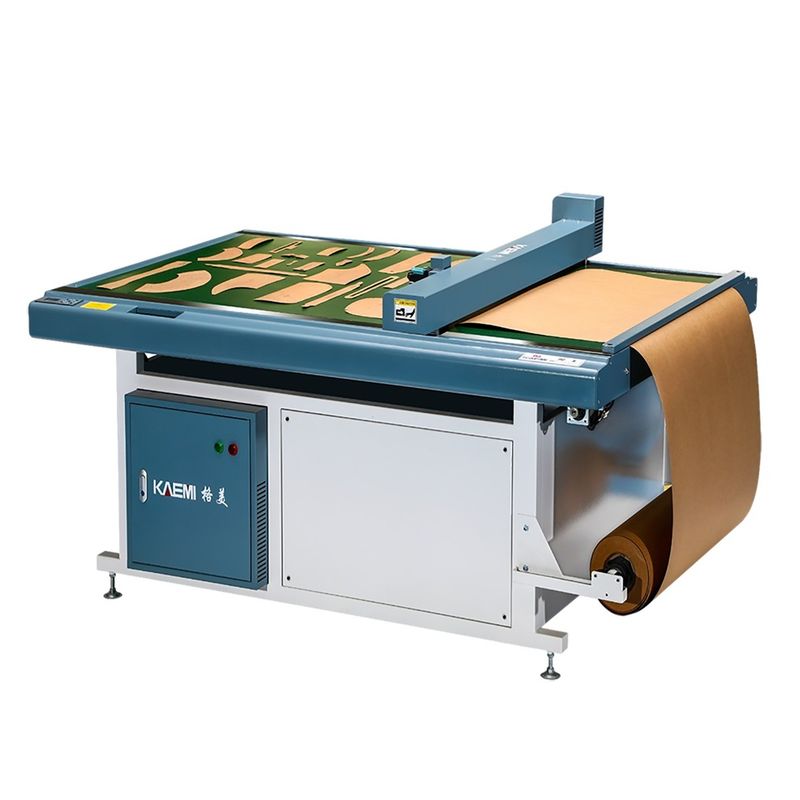

Kaemi CAD Inkjet Cutter Plotter for Footwear, Bags & Garment Fabric Patterns
Professional CAD inkjet cutter plotter designed for precision pattern cutting in footwear, bags, garment fabric, and paper pattern applications.
Technical Specifications
| Model |
GM-1209P5 |
GM-1509P5 |
GM-1510P5 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
| Overall Dimension (mm) |
1700*1570*1100 |
2000*1570*1100 |
2000*1570*1100 |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Printing Speed |
75㎡/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ (-22~122℉); Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/㎡ |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Packaging & Delivery
Wooden case specially treated for import and export requirements, ensuring safe transportation worldwide.
Company Profile
Wuhan GEMEI Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries. As a high-tech enterprise certified by Hubei Province and Wuhan City, GEMEI is committed to providing CAM/CAD integrated solutions for garment, luggage, and footwear enterprises.
Since its establishment, GEMEI has developed a comprehensive series of cutting machines and obtained multiple software copyright and patent certificates. The company combines world advanced technology with Chinese manufacturing advantages, featuring innovative designs that emphasize core functionality and simple operation.
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience in this field.
How do you pack these products?
Products are typically packed in wooden cases according to export standards, with customization available based on your requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
After-sales service?
We provide professional after-sales support with 24-hour technical assistance available by phone, email, or WeChat.
What is your lead time?
Spot goods typically ship within 2-4 days, while custom orders require 5-7 days for production.
