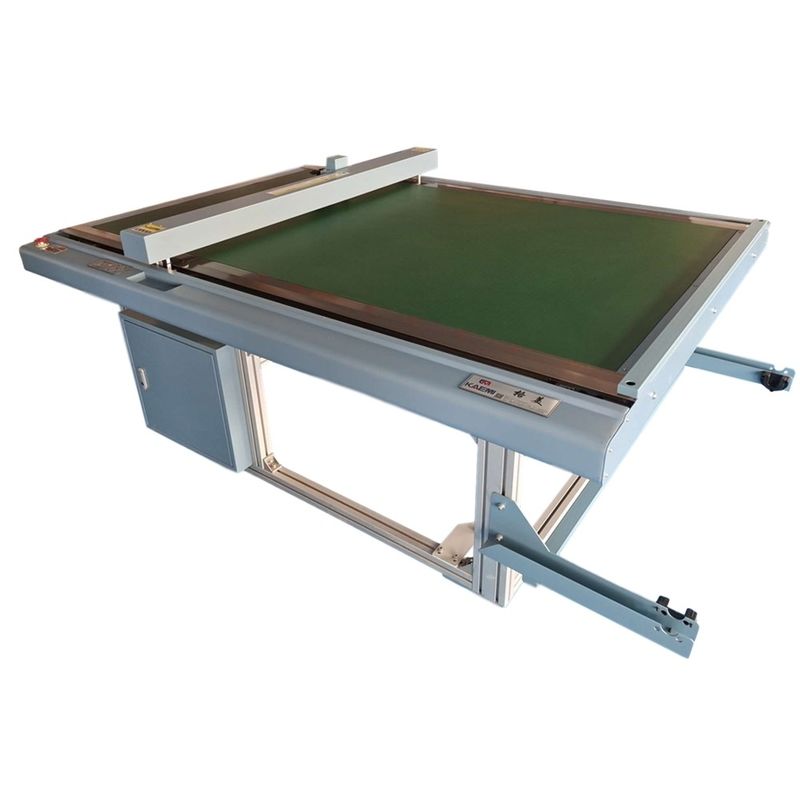

Flatbed CAD Paper Pattern Contour Cutter Plotter
Professional garment pattern cutting plotter with advanced inkjet and cutting capabilities for industrial applications.
Main Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
Dual Knife Version Optional: Can perform full cut and half cut simultaneously, or combine inkjet cutting with pen drawing (additional $400 USD for dual knife version).
Technical Specifications
| Model |
Cutting Window |
Overall Dimension (mm) |
| GM-1209P6 |
1200*900mm |
1705*1445*1000 |
| GM-1509P6 |
1500*900mm |
2005*1445*1000 |
| GM-1510P6 |
1500*1000mm |
2005*1445*1000 |
| GM-1512P6 |
1500*1200mm |
2005*1645*1000 |
Max Speed: 1200mm/s
Materials Fasten: Vacuum Adsorption
Maximum Cutting Thickness: 2mm
Cutting Materials: White Paper, Kraft, Plastic Board, Fiberboard, etc.
Printing Speed: 75㎡/h
Plot/Cut Tool: HP45 Ink Box, Tungsten Steel Blade
Precision: ≤0.01mm
Communication Port: USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats: HPGL (Compatible with Domestic and International CAD Online)
Control Panel: 9 Keys and LED Display (Chinese and English Switch)
Motor/Driver: High Performance 3 Phase Step-motor
Supply Voltage: AC 220V/110V±10%, 50Hz
Working Environment: Temperature: -30~50℃ (-22~122℉); Humidity: 10%--95% RH
Paper Thickness: 150g-500g/㎡
Application Areas: Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc.
Product Images
Manufacturer Information
Wuhan Gemei Joint Technology Co., Ltd.
Located in Wuhan Linkong Economic Development Zone, we specialize in research, development, production, sales and service of automation equipment for clothing, bags, and shoes industries. As a high-tech enterprise certified by Hubei Province and Wuhan City, we are committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises.
Packaging & Delivery
Industry Exhibitions
Certifications
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience in this field.
How do you pack these products?
Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
What is your lead time?
Spot goods typically ship in 2-4 days, while custom orders take 5-7 days to complete.
