Highlight:
inkjet paper flatbed cutting machine
, tungsten steel blade flat bed cutter
, flatbed cutting machine 1200x900mm
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Original Manufacturer Inkjet Paper Pattern Flatbed Cutting Machine |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
1200*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s Max |
Cutting Machine Size: |
1700*1450*1100mm |
Working File Formats: |
PLT, DXF, HPGL, Etc(Normal CAD File Formats) |

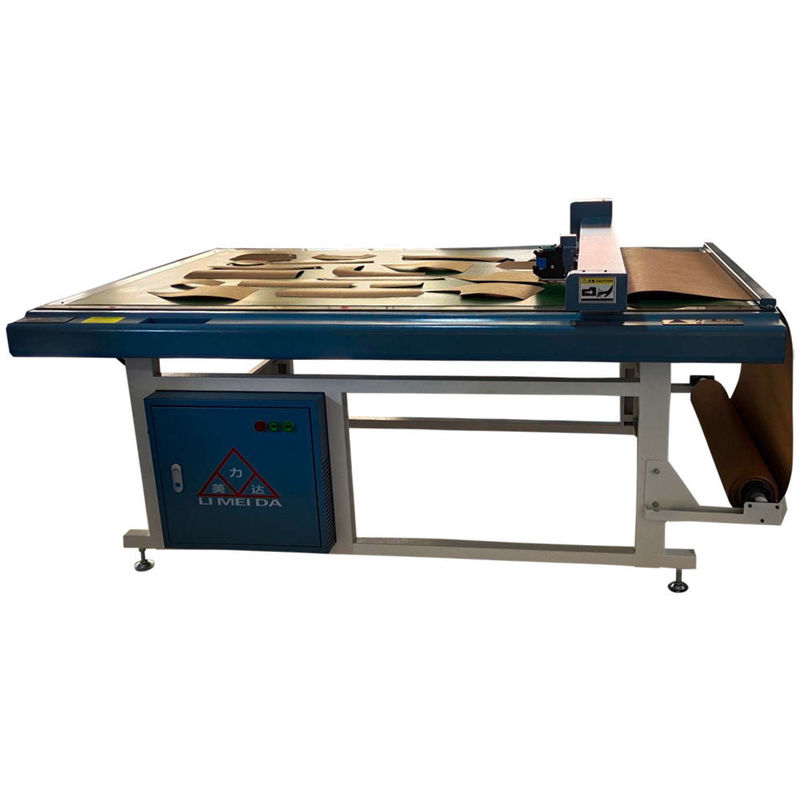

Tungsten Steel Blade Inkjet Paper Flatbed Cutting Machine 1200x900mm
Professional Inkjet Paper Pattern Flatbed Cutting Machine
Advanced System Features
- Unique Inkjet and Cutting Double Track Tracking System
- Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Comprehensive Fault Detection System
Technical Specifications
| Model |
JK1209P6 |
JK1509P6 |
JK1510P6 |
JK1512P6 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1700*1450*1100 |
2000*1550*1100 |
2000*1550*1100 |
2000*1650*1100 |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
| Materials Fasten |
Vacuum Adsorption |
| Maximum Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Printing Speed |
60m²/h |
| Plot/Cut Tool |
HP45 Ink Box, Tungsten Steel Blade |
| Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display (Chinese and English Switch) |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Paper Thickness |
150g-500g/m² |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Product Gallery
Packaging & Shipping
Related Products
Company Information
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages. Our innovative design differs from domestic traditional cutting machines and fully embodies the "good at core, simple in shape" design principle. After developing the first continuous drum cutter in central China, we successively created sample cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend of world manufacturing industry transferring to central regions, and has established a research and development team composed of doctors, senior engineers, and other high-quality talents. We insist that "innovation" is the eternal driving force for GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for over 10 years.
Q: How do you pack these products?
A: Usually packed in wooden cases and can pack according to export standards or your requirements.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, we provide professional after-sales team and 24-hour technical support by phone, email, or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
