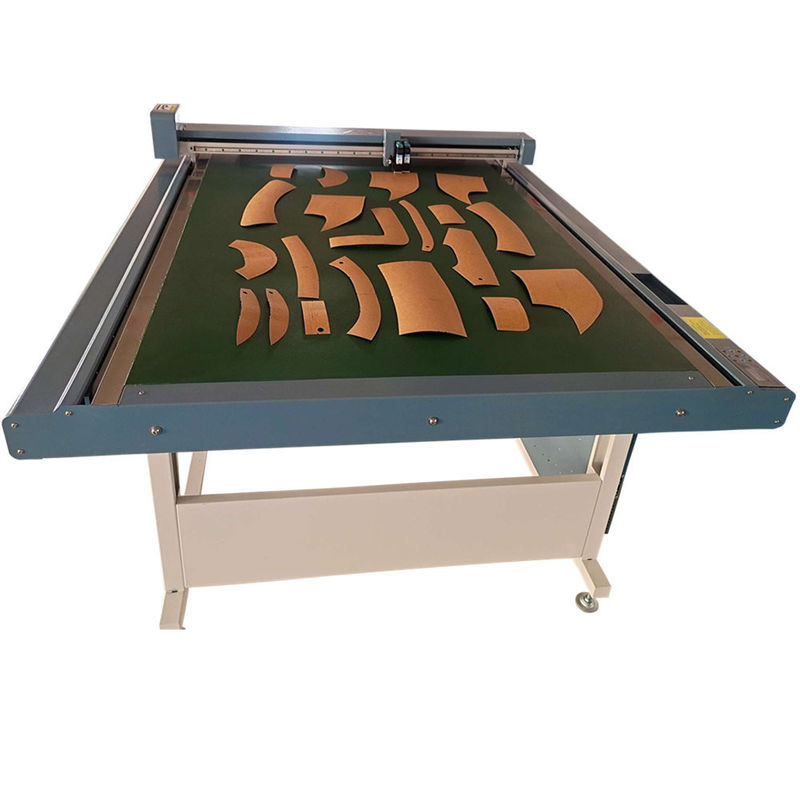

Paper Pattern Inkjet Flatbed Cutter Plotter
Clothing Pattern Print and Cut Plotter
Free Sample Cutting Factory Flatbed Paper Pattern Inkjet Cutting Machine Cutter Plotter
Main Features
- Unique Inkjet and Cutting Double Track Tracking System
- Unique Paper Card Abnormal Monitoring System
- Cutting Starting Points and Cutting Sequence Display System
- Automatic Paging System
- Fault Detection System for Whole Machine
Technical Specifications
| Model |
JK1209P6 |
JK1509P6 |
JK1510P6 |
JK1512P6 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1700*1450*1100 |
2000*1550*1100 |
2000*1550*1100 |
2000*1650*1100 |
| Max Speed |
1200mm/s |
1200mm/s |
1200mm/s |
1200mm/s |
Materials Fasten: Vacuum Adsorption
Maximum Cutting Thickness: 2mm
Cutting Materials: White Paper, Kraft, Plastic Board, Fiberboard, etc
Printing Speed: 60m²/h
Plot/Cut Tool: HP45 Ink Box, Tungsten Steel Blade
Precision: ≤0.01mm
Communication Port: USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats: HPGL (Compatible with Domestic and International CAD Online)
Control Panel: 9 Keys and LED Display (Chinese and English Switch)
Motor/Driver: High Performance 3 Phase Step-motor
Supply Voltage: AC 220V/110V±10%, 50Hz
Working Environment: Temperature: -30~50℃ or -22~122℉; Humidity: 10%--95% RH
Paper Thickness: 150g-500g/m²
Application Areas: Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc
Product Gallery
Packaging & Shipping
Related Products
Company Information
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China, we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents, and insists that "innovation" is the eternal power of the development of GEMEI.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for over 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
