260ml Continuous Inkjet Plotter Printer with 1900mm to 2500mm Cutting Size and 150-600DPI Resolution for CAD Printing

Name: 260ml Continuous Inkjet Plotter Printer with 1900mm to 2500mm Cutting Size and 150-600DPI Resolution for CAD Printing
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                260ml continuous inkjet plotter, CAD printing plotter for manufacturing, inkjet plotter printer with warranty


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	260ml Continuous Inkjet Paper Pattern Plotter Inkjet Cutter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm	Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL	Model:	EP20-190

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	260ml Continuous Inkjet Paper Pattern Plotter Inkjet Cutter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm
Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL
Model:	EP20-190

Product Description

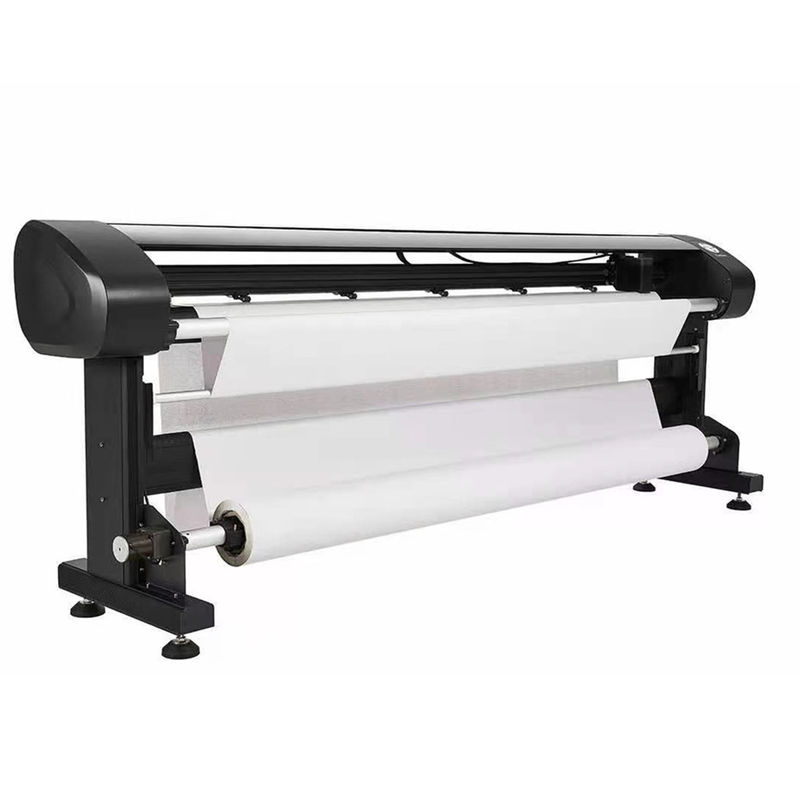

260ml Continuous Inkjet Paper Pattern Plotter for CAD Printing

High-performance continuous inkjet plotter designed for CAD printing applications in manufacturing plants, featuring large 260ml ink capacity and advanced printing technology.

Main Features

High-speed Servo Control with Full Closed-loop Positioning
Independent Output Manager with Background Automatic Queuing Printing
Advanced SOPC Technology Support
Breakpoint Resume Function for Reliable Data Transmission
Two-Direction High-Speed Printing at 120 ㎡/h
Super EPSON Ink Box with 260ml Continuous Ink Supply
Easy Ink Refill Operation - No Cartridge Replacement Required
Environmentally Friendly and Cost-Effective Operation
Automatic Nozzle Cleaning Before Printing
Hidden Infrared Precise Paper Feeding System

Technical Specifications

Parameter	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260

Additional Technical Parameters

Printing Speed: Two-way high speed 120 ㎡/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600DPI
Nozzle Type: EP20L
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Paper Loading: Front heightening device supports paper rolls up to 28cm diameter
Paper Feeding: Continuous 700 meters without deviation
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computer control
Power Supply: 220V/50Hz
Working Temperature: 10~35℃ (50~95℉)
Humidity: 15%~85% RH (No Condensation)

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoe industries.

As a high-tech enterprise certified by Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has developed a series of cutting machines for various industries with multiple software copyright and patent certificates.

Packaging & Delivery

Certifications & Quality Standards

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Products are usually packed in wooden cases according to export standards, with customization available based on your requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.

Q: What is your lead time?

A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for production.
