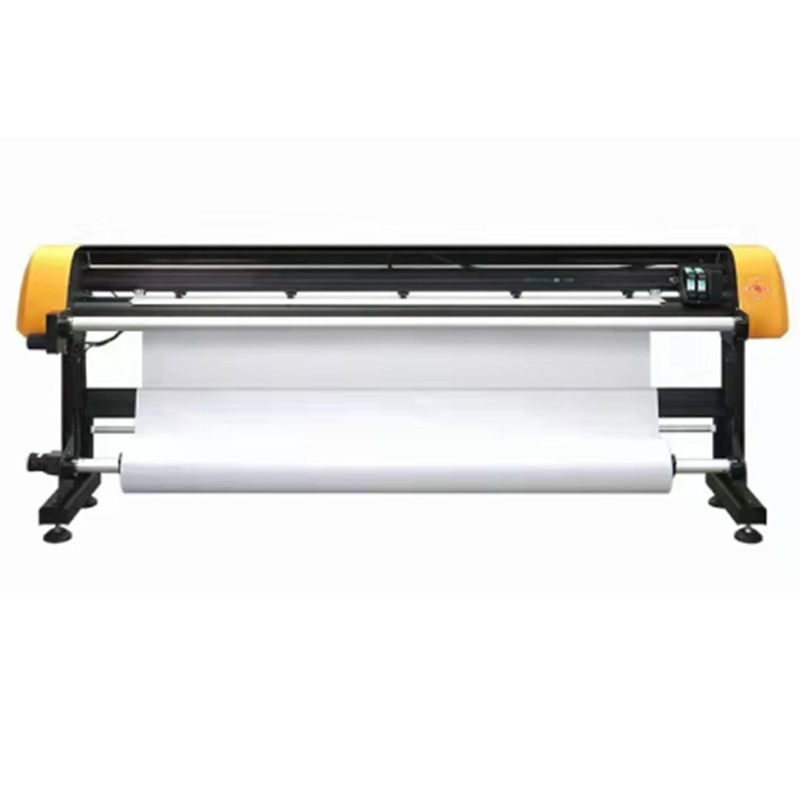

Professional CAD Paper Pattern Graph Contour Printing Head
High-performance printing head system designed for advertising companies and CAD applications, featuring multiple printing head configurations for optimal output quality.
Key Features
- High-speed Servo Control with Full Closed-loop Positioning for accurate output
- Independent Output Manager supports file background automatic queuing printing
- Advanced SOPC technology implementation
- Breakpoint resume functionality for reliable data transmission
- Automatic printing online capability
- 2, 3, or 4 Printing Heads configuration options
Technical Specifications
| Type |
Double Spray |
Three Spray |
Four Spray |
| Product Model |
B-165-2/B-185-2/B-205-2 |
B-160-3/B-180-3/B-200-3 |
B-155-4/B-175-4/B-195-4 |
| Printing Width (cm) |
165/185/205 |
160/180/200 |
155/175/195 |
| Feeding Paper Width (cm) |
170/190/210 |
170/190/210 |
170/190/210 |
Printing Speed: Two-way high speed 93 m²/h; Two-way high speed 131 m²/h; Two-way high speed 163 m²/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software, special formats customizable
Print Resolution: 150-600 DPI
Nozzle Type: HP45A
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper rolls up to 28cm diameter
Paper Feeding: Hidden infrared precise paper feeding system, continuous 700 meters without deviation
Paper Handling: Unattended automatic paper receiving and feeding
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers can separately control printing
Power Supply: 220V/50Hz
Control Panel: Press key operation, simple, convenient, durable
Machine Structure: Die standardized metal structure, high precision and long life
Output Center: Supports manual or automatic printing, optional ink-saving mode, supports online printing
Product Gallery
Packaging & Shipping
About GEMEI
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Our GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world-class advanced technology with Chinese manufacturing excellence.
We adhere to the design principle of "good at core, simple in shape" and maintain that "innovation" is the eternal driving force behind GEMEI's development. Our research and development team consists of doctors, senior engineers, and other high-quality professionals dedicated to continuous improvement.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What after-sales service do you provide?
A: We provide professional after-sales support with 24-hour technical assistance available via phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for completion.
