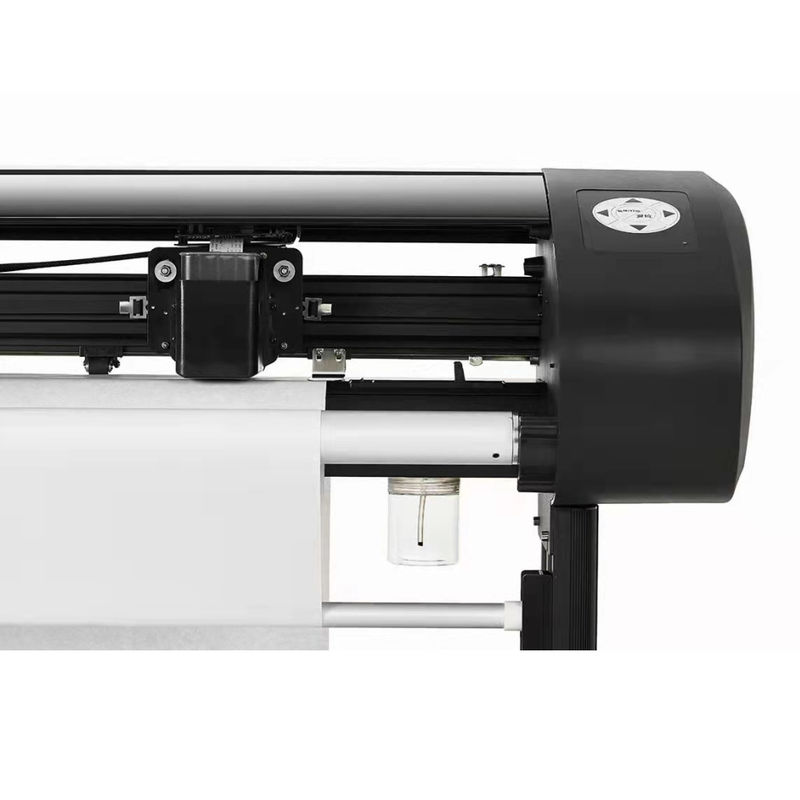

H801 CAD Continuous Inkjet Paper Pattern Graph Contour Printing Plotter
Professional apparel plotter designed for high-speed, precise pattern and graph printing in garment manufacturing applications.
Product Overview
Advanced continuous inkjet printing plotter engineered for apparel industry pattern making and contour printing.
Key Features
- High-speed Servo Control with Full Closed-loop Positioning for accurate output in various situations
- Independent Output Manager supports file background automatic queuing printing
- Advanced SOPC technology implementation
- Breakpoint resume functionality ensures reliable data transmission and printing
- Two-direction high-speed printing capability
- Super EPSON Ink Box with big capacity continuous ink supply system
- Easy ink addition operation without ink box replacement
- Environmentally friendly and economical operation
Technical Specifications
| Parameter |
EP20-19 |
EP20-21 |
EP20-23 |
EP20-25 |
| Printing Width (cm) |
190 |
210 |
230 |
250 |
| Feeding Paper Width (cm) |
200 |
220 |
240 |
260 |
Printing Speed: Two-way high speed 120 m²/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software, special format customization available
Print Resolution: 150-600DPI
Nozzle Type: EP20L
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper roll with diameter of 28cm
Paper Feeding: Hidden infrared precise paper feeding system, continuous 700 meters without deviation
Paper Handling: Unattended automatic paper receiving and feeding
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computers can separately control printing
Power Supply: 220V/50Hz
Control Panel: Press key operation, simple, convenient, durable
Machine Structure: Die standardized metal structure, high precision and long life
Output Center: Supports manual or automatic printing, optional ink-saving mode, supports online printing
File Format: HP-GL
Working Temperature: 10~35℃ or 50~95℉
Humidity: 15%--85% RH (With no Condensation)
Packaging & Shipping
Related Products
Manufacturer Information
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series of cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages.
Our design philosophy emphasizes "good at core, simple in shape" principle. After developing the first continuous drum cutter in central China, we successively created sample cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps global manufacturing trends and has established a research and development team composed of doctors, senior engineers, and other high-quality professionals. We insist that "innovation" is the eternal driving force behind GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Standard products typically ship in 2-4 days, while custom orders take 5-7 days.
