120 SQM/h Fast Inkjet Plotter Printer with 260ml Continuous Ink Cartridge and 1900-2500mm Cutting Size

Name: 120 SQM/h Fast Inkjet Plotter Printer with 260ml Continuous Ink Cartridge and 1900-2500mm Cutting Size
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                120 SQM/h fast inkjet plotter, continuous ink cartridge plotter, 260ml capacity inkjet printer


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	120 SQM/h Fast Inkjet Printing Plotter 260ml Capacity Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm	Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL, PLT, DXF, Etc	Model:	EP20-190

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	120 SQM/h Fast Inkjet Printing Plotter 260ml Capacity Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm
Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL, PLT, DXF, Etc
Model:	EP20-190

Product Description

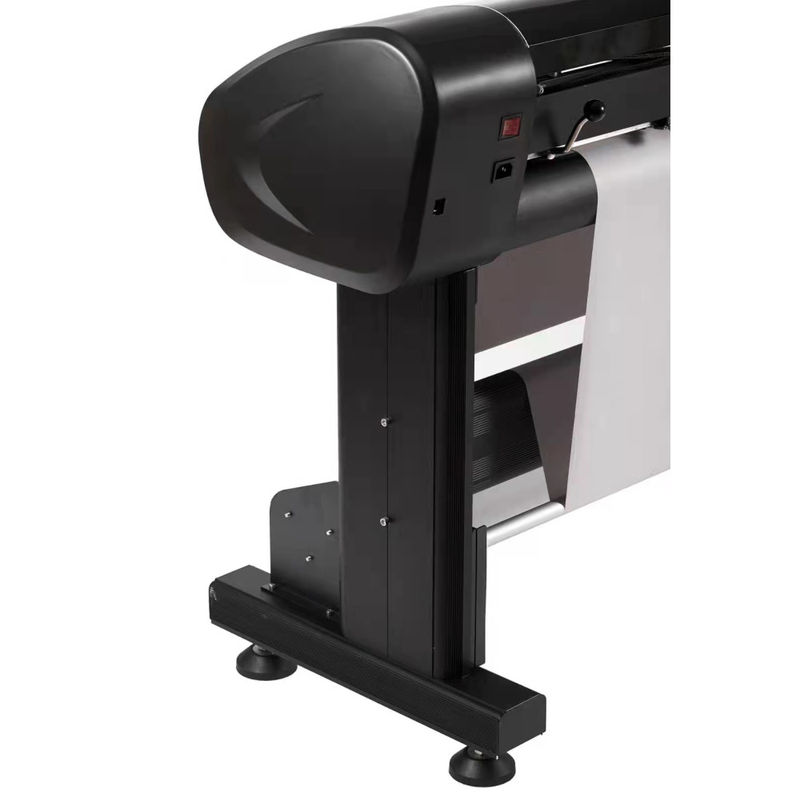

120 SQM/h Fast Inkjet Printing Plotter with Continuous Ink Cartridge

High-performance inkjet printing plotter featuring continuous ink supply system with 260ml capacity, delivering exceptional speed and reliability for industrial applications.

Main Features

High-speed servo control with full closed-loop positioning
Independent output manager with background automatic queuing printing
Advanced SOPC technology with breakpoint resume function
Two-direction high-speed printing at 120 ㎡/h
Super EPSON ink box with 260ml continuous ink supply
Easy ink addition without cartridge replacement
Environmentally friendly and cost-effective operation

Technical Parameters

Parameter	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260

Printing Speed: Two-way high speed 120 ㎡/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600DPI
Nozzle Type: EP20L
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports 28cm diameter paper rolls
Paper Feeding: Hidden infrared precise system, continuous 700 meters without deviation
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computer control
Power Supply: 220V/50Hz
Machine Structure: Die standardized metal structure for high precision and long life
Working Temperature: 10~35℃ (50~95℉)
Humidity: 15%-85% RH (no condensation)

Company Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.

As a high-tech enterprise certified by Hubei Province and Wuhan City, Gemei provides CAM/CAD integrated solutions and has developed a series of cutting machines for various industries, obtaining multiple software copyright and patent certificates.

Packing & Delivery

Exhibition

Certifications

Frequently Asked Questions

Are you a manufacturer?

Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

How do you pack these products?

Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Is it customizable?

Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.

What about after-sales service?

We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

What is your lead time?

Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
