220V/50Hz CAD Paper Pattern Inkjet Plotter Printer with 150-600DPI Settable Resolution and HP-GL File Format

Name: 220V/50Hz CAD Paper Pattern Inkjet Plotter Printer with 150-600DPI Settable Resolution and HP-GL File Format
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Price: $1,069.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220V CAD paper pattern plotter, inkjet plotter with adjustable resolution, 50Hz menu-controlled inkjet printer


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year
Product Name:	Original Factory CAD Paper Pattern Graph Inkjet Printing Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm	Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge	Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year
Product Name:	Original Factory CAD Paper Pattern Graph Inkjet Printing Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm
Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge
Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL

Product Description

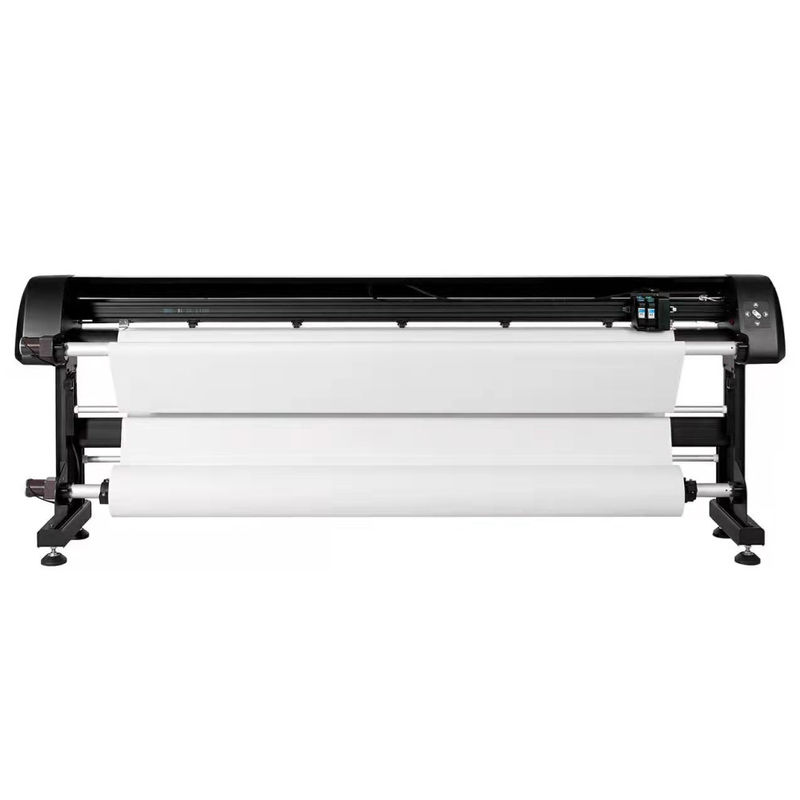

220V/50Hz CAD Paper Pattern Inkjet Plotter

Professional CAD paper pattern graph inkjet printing plotter with optional printing resolution and menu configuration.

Main Features

High-speed Servo Control System
Full Closed-loop Positioning for Accurate Output
Independent Output Manager with Background Automatic Queuing
Advanced SOPC Technology Implementation
Breakpoint Resume Function for Reliable Data Transmission
Automatic Online Printing Capability
Optional 2, 3, or 4 Printing Heads Configuration

Technical Specifications

Type	Double Spray	Three Spray	Four Spray
Product Model	B-165-2/B-185-2/B-205-2	B-160-3/B-180-3/B-200-3	B-155-4/B-175-4/B-195-4
Printing Width (cm)	165/185/205	160/180/200	155/175/195
Feeding Paper Width (cm)	170/190/210	170/190/210	170/190/210
Printing Speed	93 ㎡/h (Two-way high speed)	131 ㎡/h (Two-way high speed)	163 ㎡/h (Two-way high speed)

Additional Technical Parameters

Printing Format: HPGL drawing language, compatible with domestic and international CAD software
Print Resolution: 150-600DPI (configurable)
Nozzle Type: HP45A
Line Quality: Clear, smooth, seamless output with optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper rolls up to 28cm diameter
Paper Feeding: Hidden infrared precise feeding system, continuous 700 meters without deviation
Paper Handling: Unattended automatic paper receiving and feeding
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, supports multiple computer control
Power Supply: 220V/50Hz
Control Panel: Press key operation, simple, convenient, and durable
Machine Structure: Die standardized metal structure for high precision and long life
Output Center: Supports manual or automatic printing with optional ink-saving mode

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoe industries.

As a high-tech enterprise certified by Hubei Province and Wuhan City, Gemei develops cutting machines for clothing, bags, shoes, and hats with multiple software copyright and patent certificates. The company employs a research team of doctors and senior engineers committed to innovation.

Packaging & Delivery

Industry Exhibitions

Certifications

Frequently Asked Questions

Are you a manufacturer?

Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

How do you pack these products?

Products are usually packed in wooden cases according to export standards or customer requirements.

Is it customizable?

Yes, we offer standard sizes commonly used in the industry and can customize according to specific requirements.

What about after-sales service?

We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

What is your lead time?

Standard products typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
