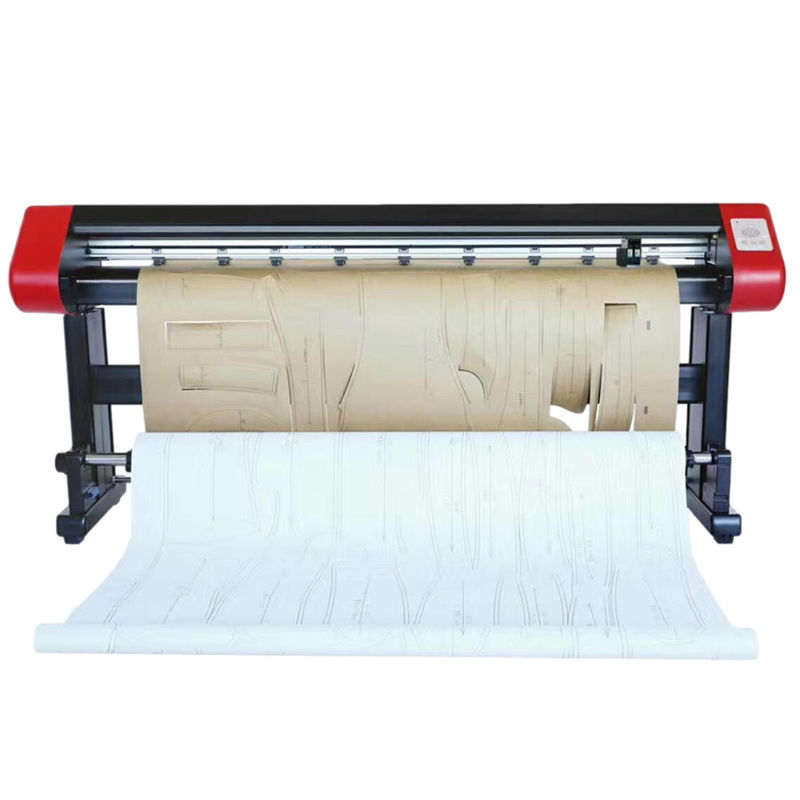

190cm 72inch Vertical CAD Paper Cutter with Customizable Printing Resolution and Refillable Ink

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Price: $1,559.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                72 inch CAD paper cutter, refillable ink plotter printer, customizable resolution inkjet plotter


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Vertical CAD Paper Pattern Inkjet Cutting Plotter 190cm 72inch	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1250mm To 2200mm	Paper Size:	1250mm To 2300mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL, PLT, DXF, Etc	Model:	GML3

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Vertical CAD Paper Pattern Inkjet Cutting Plotter 190cm 72inch
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1250mm To 2200mm
Paper Size:	1250mm To 2300mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL, PLT, DXF, Etc
Model:	GML3

Product Description

190cm 72inch CAD Paper Cutter with Customizable Printing Resolution and Refillable Ink

Vertical CAD Paper Pattern Inkjet Cutting Plotter

Main Features

Exclusive software algorithm for precise printing with clearer lines without gratings and horse disks
Independent output management software for better machine-computer connectivity
Hidden heads of ink and knife for enhanced safety and durability
Automatic position recording during abnormal stops
Online automatic printing in queue for efficient workflow

Technical Specifications

Parameter	GM125L3	GM170L3	GM190L3	GM220L3
Maximum Printing Width	125cm	170cm	190cm	220cm
Ink Type	2 spray/4 spray HP universal ink cartridge HP45/6145A
Printing Density	300-600D (optional ink-saving mode)
Printing Capacity	200-230 square meters/hour (four-jet)
Line Quality	Precise, smooth, seamless
Software Compatibility	HPGL (special format can be customized)
Paper Feeding	Precise paper feeding technology with invisible digital coding induction system
Paper Loading	Front paper receiving and placing system
Paper Receiving Mode	Automatic collecting or no-collecting printing for fast pattern printing
Host Structure	American all-metal high-rigidity wear-resisting structure
Intelligent Ink Car	Automatic origin record, servo control, ink consumption monitoring
Paper Requirements	General paper (30g-250g)
Input Voltage	AC220/110V 60HZ, power not less than 400W
Communication Port	USB/interface shared printing
Command Format	HP-GL
