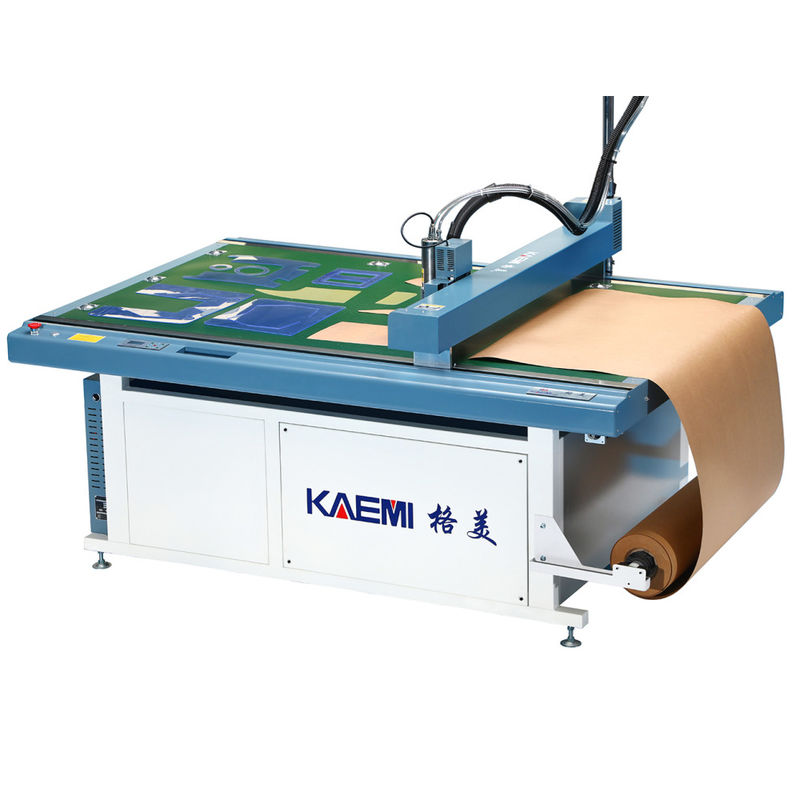

Professional CAD PVC Sheet Board Milling Cutter
China Manufacturer specializing in high-quality CAD PVC sheet board milling cutting machines for the clothing printing industry.
Technical Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
1900*1450*1100 |
1900*1750*1100 |
2200*1750*1100 |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Working Environment |
-30~55℃ or -22~131℉ |
Product Features
- Compatible with various CAD software applications
- Design while the machine is cutting for maximum efficiency
- Pneumatic fixation technology for high-efficiency templates
- Integrated floating pressure foot and vacuum cleaning technology
- Flexible modification system for cutting starting points and sequence
- Independent templates editing and designing system
Processing Capabilities
Cutting Materials: PVC, PP, POM, Acrylic, PET, Kraft, and more
Processing Methods: Mill, Cut, Drill, Plot
Cut Tools: Mill-cutter, Graver, Driller, Pen
Drive System Components
Moons Motor driver; High-accuracy lead rail with double lead rail on crossbeam for superior precision and stability.
Product Images
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd.
Located in Wuhan Linkong Economic Development Zone, specializing in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.
As a high-tech enterprise and software enterprise in Hubei Province, Gemei provides CAM/CAD integrated solutions and holds multiple software copyright and patent certificates.
Packing & Delivery
Exhibition & Trade Shows
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What after-sales service do you provide?
A: We have a professional after-sales team and provide 24-hour technical support via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods typically take 2-4 days, while custom orders require 5-7 days for completion.
