Dual and Four Nozzle Garment Paper Pattern Inkjet Plotter Printer with 1650-2050mm Cutting Size and HP45 Ink Cartridge

High-performance industrial plotter with dual and four printing nozzle configurations for garment paper pattern printing applications.

Advanced industrial plotter designed for garment pattern printing with multiple nozzle configurations and high-speed performance.

• High-speed Servo Control with Full Closed-loop Positioning
• Independent Output Manager with Automatic File Queuing
• Advanced SOPC Technology
• Breakpoint Resume Function for Reliable Data Transmission
• Automatic Online Printing
• 2, 3, or 4 Printing Heads Optional

• Printing Speed: Two-way high speed 93 m²/h; Two-way high speed 131 m²/h; Two-way high speed 163 m²/h
• Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software, special format customization available
• Print Resolution: 150-600 DPI

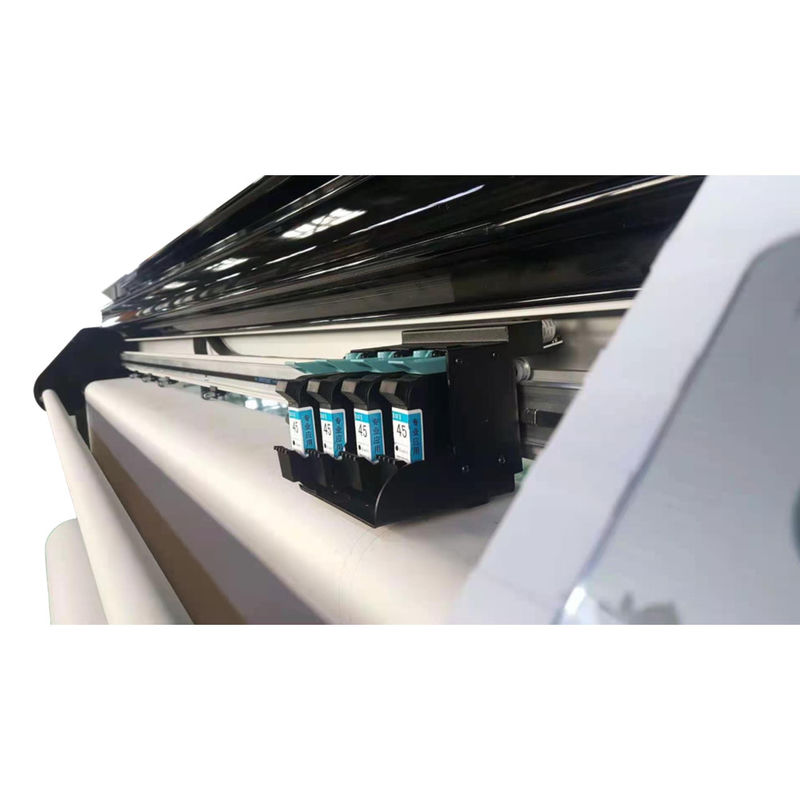

• Nozzle Type: HP45A
• Line Quality: Clear, smooth, no seam, optional 1-8 lines
• Nozzle Cleaning: Automatic cleaning before printing
• Paper Loading: Front heightening device supports paper roll with diameter of 28cm
• Paper Feeding: Hidden infrared precise paper feeding system, continuous 700 meters without deviation
• Paper Handling: Unattended automatic paper receiving and feeding
• Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
• Communication Interface: Network port, multiple computers can separately control printing
• Power Supply: 220V/50Hz
• Control Panel: Press key operation, simple, convenient, durable
• Machine Structure: Die standardized metal structure, high precision and long life
• Output Center: Supports manual or automatic printing, optional ink-saving mode, supports online printing

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world advanced technology with Chinese manufacturing advantages.

Our design philosophy follows "good at core, simple in shape" principles. After introducing the first continuous drum cutter in central China, we successively developed sample cutters for the luggage industry and continuous cutting garment sample cutters.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend of world manufacturing transfer to central regions, maintaining a research and development team composed of doctors, senior engineers, and other high-quality talents. We insist that "innovation" is the eternal driving force behind GEMEI's development.
