Vertical CAD Inkjet Plotter Printer with 1650mm to 2050mm Width and HP45 Ink Box for High-speed Servo Control

Name: Vertical CAD Inkjet Plotter Printer with 1650mm to 2050mm Width and HP45 Ink Box for High-speed Servo Control
Brand: Wuhan Gemei Joint Technology Co., Ltd.
SKU: GM-170H2-2
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Certification: CE,CCC,ISO9001,etc

Model Number: GM-170H2-2

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $799.00--$1,069.00/sets 1-10 Sets

Packaging Details: Professional Wooden Case for Import and Export(with Official Chop)

Delivery Time: 2-5 Working Days

Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)

Supply Ability: 500 Sets Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                vertical paper cutting plotter, wide format inkjet plotter printer, graph contour printing plotter


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine	Product Name:	Paper Pattern Graph Contour Printing Plotter CAD Inkjet Plotter
Printing Materials:	White Paper,Kraft, Etc	Cutting Size:	1650mm To 2050mm
Paper Size:	1700mm To 2100mm	Printing Tool:	Universal HP45 Ink Box Or Cartridge
Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available	Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz, 110V, 60HZ Optional	CAD File Format:	HP-GL, PLT, DXF, Etc

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Paper Pattern Graph Contour Printing Plotter CAD Inkjet Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1650mm To 2050mm
Paper Size:	1700mm To 2100mm
Printing Tool:	Universal HP45 Ink Box Or Cartridge
Ink Cartridge Type:	HP45 Ink Box Or Cartridge 2 To 4 Printing Heads Available
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz, 110V, 60HZ Optional
CAD File Format:	HP-GL, PLT, DXF, Etc

Product Description

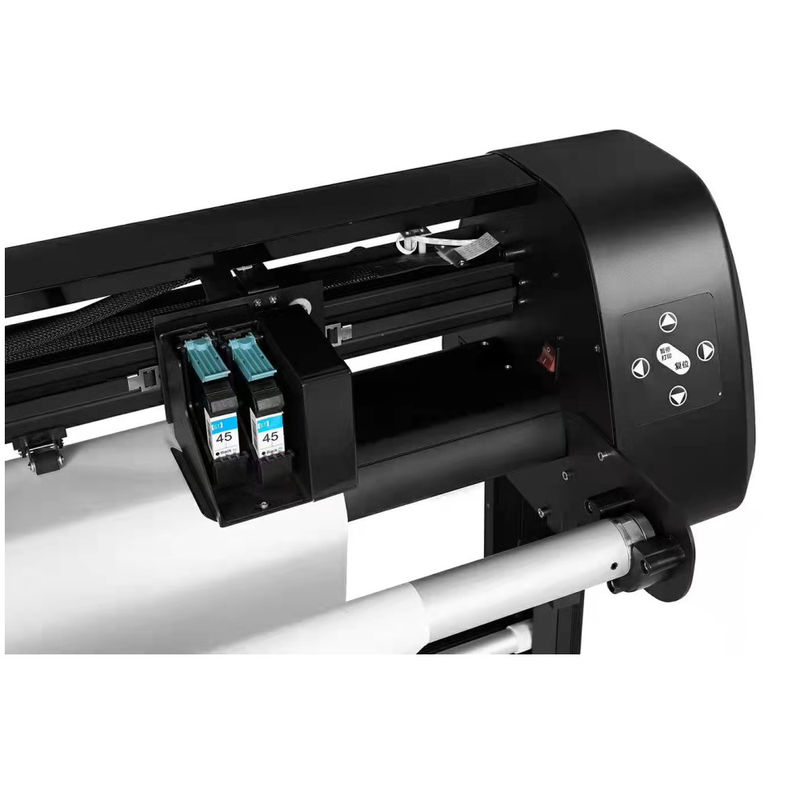

Vertical Paper Pattern Graph Contour Printing Plotter

Factory vertical paper pattern graph contour printing plotter CAD inkjet plotter with cutting capabilities, available in widths from 1650mm to 2050mm.

Main Features

High-speed servo control with full closed-loop positioning for accurate output
Independent output manager supports file background automatic queuing printing
Advanced SOPC technology implementation
Breakpoint resume function for reliable data transmission and printing
Automatic printing online with optional cutting knife (additional $100 USD)
Two, three, or four printing heads configuration available

Technical Specifications

Type	2 Head (2 HP45 Ink Box)	4 Head (4 HP45 Ink Box)
Hot Selling Product Model	GM-190H2-2 / GM-210H2-2	GM-190H2-4 / GM-210H2-4
Printing Width	Actual printing width varies: 2-head models 185-190cm, 4-head models 180-185cm
Feeding Paper Width	5-10cm wider than maximum printing width
Printing Speed	Two-way high speed: 93 m²/h	Two-way high speed: 163 m²/h
Printing Format	HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution	150-600 DPI
Nozzle Type	HP45A
Cutting Function	Optional tungsten cutting blade ($100 additional)
Line Quality	Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning	Automatic cleaning before printing
Paper Loading	Front heightening device supports paper rolls up to 28cm diameter
Paper Feeding	Hidden infrared precise paper feeding system, continuous 700 meters without deviation
Communication Interface	USB port + network port, multiple computers can separately control printing
Power Supply	220V/50Hz

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales, and service of automation equipment for clothing, bags, and shoes industries. As a high-tech enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has developed a series of cutting machines with multiple software copyright and patent certificates.

Packaging & Delivery

Exhibition Showcase

Certifications

Frequently Asked Questions

Are you a manufacturer?

Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with over 10 years of experience.

How do you pack these products?

Usually packed in wooden cases according to export standards or customer requirements.

Is it customizable?

Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.

What about after-sales service?

We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

What is your lead time?

Spot goods typically take 2-4 days, while custom orders require 5-7 days.
