Products

Home > Products > Inkjet Plotter Printer > Lightweight 100KG Refillable Big Ink Cartridge CAD Paper Pattern Plotter with 1900mm to 2500mm Cutting Size

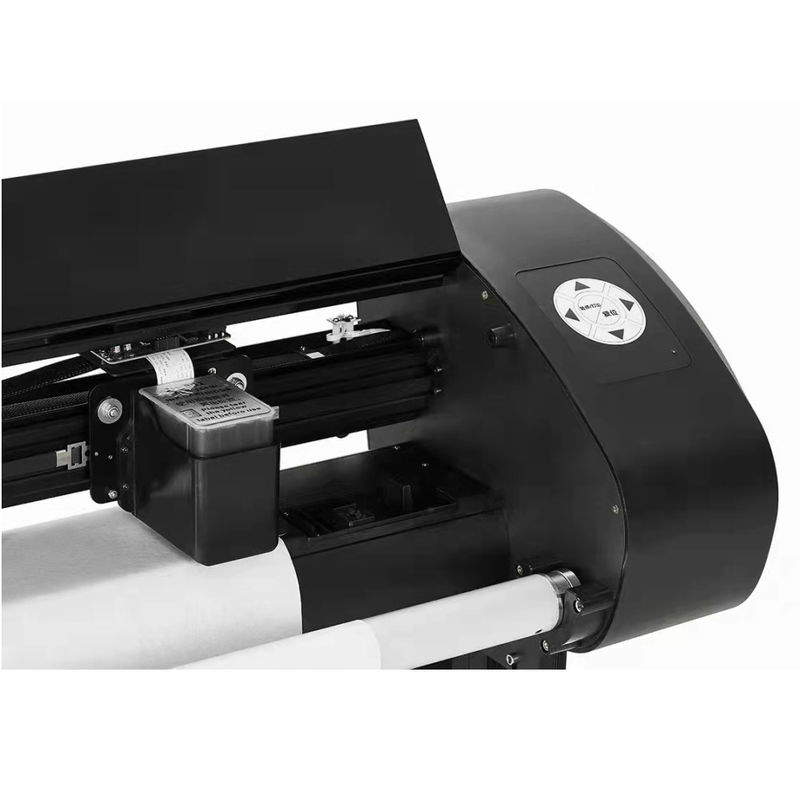

Lightweight 100KG Refillable Big Ink Cartridge CAD Paper Pattern Plotter with 1900mm to 2500mm Cutting Size

Name: Lightweight 100KG Refillable Big Ink Cartridge CAD Paper Pattern Plotter with 1900mm to 2500mm Cutting Size
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                lightweight CAD paper plotter, refillable ink cartridge plotter, large format inkjet plotter


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Big Ink Cartridge CAD Paper Pattern Plotter Garment CAD Inkjet Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm	Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL	Model:	EP20L-19

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	Big Ink Cartridge CAD Paper Pattern Plotter Garment CAD Inkjet Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm
Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL
Model:	EP20L-19

Product Description

Lightweight CAD Paper Pattern Plotter with Refillable Big Ink Cartridge

Product Overview

Refillable Big Ink Cartridge CAD Paper Pattern Plotter Garment CAD Inkjet Plotter designed for high-efficiency pattern plotting in garment, bag, and footwear industries.

Main Features

High-speed Servo Control with Full Closed-loop Positioning
Independent Output Manager with Background Automatic Queuing Printing
Advanced SOPC Technology with Breakpoint Resume Function
Two Directions High Speed Printing at 120 ㎡/h
Super EPSON Ink Box with Big Capacity Continuous Ink Supply
Easy Ink Refill Operation - No Ink Box Replacement Required
Environmentally Friendly and Economical Operation

Technical Parameters

Product Model	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260

Additional Specifications:

Printing Speed: Two-way high speed 120 ㎡/h
Printing Format: HPGL drawing language, compatible with domestic and foreign CAD software
Print Resolution: 150-600DPI
Nozzle Type: EP20L
Line Quality: Clear, smooth, no seam, optional 1-8 lines
Nozzle Cleaning: Automatic cleaning before printing
Paper Loading: Front heightening device supports paper roll with diameter of 28cm
Paper Feeding: Hidden infrared precise paper feeding system
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port
Power Supply: 220V/50Hz
Working Temperature: 10~35℃ (50~95℉)
Humidity: 15%--85% RH (With no Condensation)

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone and specializes in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.

As a high-tech enterprise and software enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. The company has developed a series of cutting machines and obtained numerous software copyright and patent certificates.

Packing & Delivery

Exhibition

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

Q: What is your lead time?

A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
