Highlight:
tungsten cutting blade inkjet plotter
, wide format inkjet plotter printer
, inkjet plotter with cutting function
Type: |
Inkjet Printer |
Print Dimension: |
Maximum 190cm To 250cm Width Printing Scope Sizes |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Advertising Company |
Condition: |
New |
Plate Type: |
Roll-to-Roll Printer |
Use: |
Paper Printer, Label Printer, Cloths Printer, Paper Pattern/Graph/Contour Fast Printing |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
220v |
Dimensions(L*W*H): |
245*65*110cm |
Weight: |
85 KG |
Warranty: |
1 Year |
Ink Type: |
Pigment Ink |
Key Selling Points: |
Large-format |
Marketing Type: |
New Product 2023 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Pump, Engine, Mother Board, Driver |
Product Name: |
Inkjet Printing Plotter With Cutting Down 190-250cm Width |
Printing Width: |
Maximum 190cm To 250cm Printing Scope Optional |
Ink Cartridge: |
Dual Head HP45 Ink Cartridge(4 Heads Optional) |
Cutting Function: |
Yes,with Cutting Blade To Cut Down(Cannot Cut Each Paper Pattern) |
Printing Speed: |
80-220 Sqm/h, Depends On Real Printing File |
Cutting Blade: |
Fine Quality Tungsten Cutting Blade |
Connection Port: |
Both USB And LAN Port(Ethernet Port) |
Applicable Paper Rolls: |
Printing:40 To 250gsm; Cutting 70-150gsm |
Compatible Files Formats: |
All CAD File Formats Including PLT, DXF, HGPL, Etc |
Applicable Fields: |
Garments, Shoes, Bags, Furniture, Car Interiors, Etc |

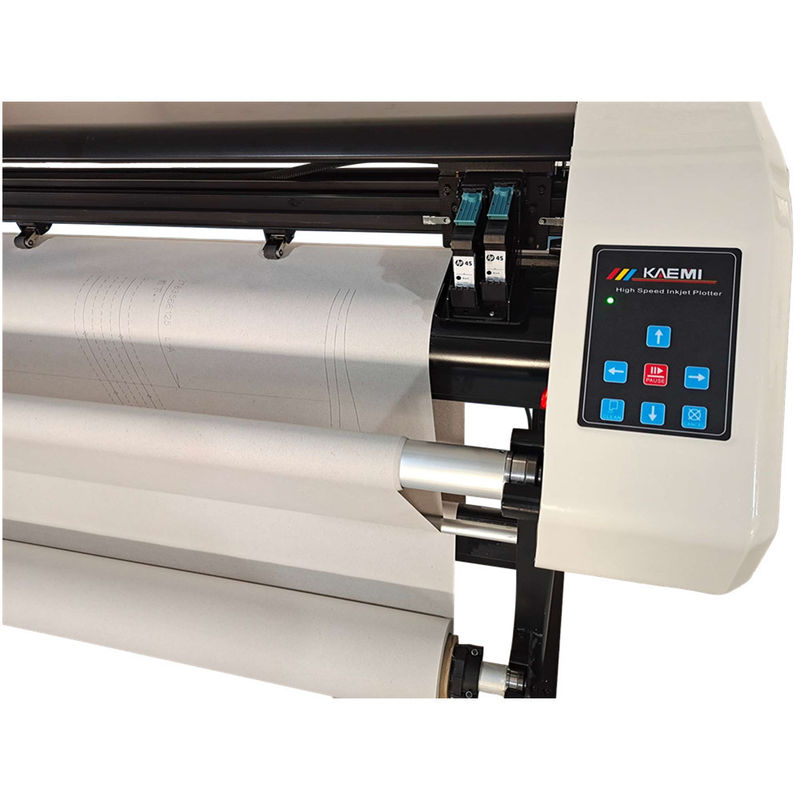

Tungsten Cutting Blade Inkjet Printing Plotter
High-performance industrial plotter with cutting functionality for widths of 190-250cm, featuring advanced servo control and multiple printing head options.
Key Features
- High-speed servo control with full closed-loop positioning for accurate output
- Independent output manager supports file background automatic queuing printing
- Advanced SOPC technology implementation
- Breakpoint resume function for reliable data transmission and printing
- Automatic printing online with cutting knife to cut down
- Two, three, or four printing heads optional configurations
Product Gallery
Size Information
Hot selling sizes are 190cm (72 inch) and 210cm (80 inch) printing width.
For 190cm width version, you can print and apply paper rolls within 190cm like 190/180/160/120cm width version paper rolls. All will fit. Please choose a plotter size and paper roll according to your real need and usage.
Size Chart
| Dual Printing Heads Type | GMH2-190-2 | GMH2-210-2 | GMH2-230-2 | GMH2-250-2 |
|---|
| Four Printing Heads Type | GMH2-190-4 | GMH2-210-4 | GMH2-230-4 | GMH2-250-4 |
|---|
Technical Specifications
| Printing Width | According to model number, real printing width more or less. For example GMH1-190-2 maximum printing width around 185 to 190cm, GMH1-190-4 maximum printing width around 180-185cm |
|---|
| Feeding Paper Width | Paper feeding width 5 to 10cm bigger than maximum printing width |
|---|
| Printing Speed | Two-way high speed 93 ㎡/h; Two-way high speed 131 ㎡/h; Two-way high speed 163 ㎡/h |
|---|
| Printing Format | HPGL drawing language, compatible with domestic and foreign CAD software, special format can be customized |
|---|
| Print Resolution | 150-600DPI |
|---|
| Type of Nozzle | HP45A |
|---|
| Cutting Function | With tungsten cutting blade to cut down (cannot cut each pattern) |
|---|
| Line Quality | Clear, smooth, no seam, optional 1-8 lines |
|---|
| Nozzle Cleaning | Automatic cleaning before printing |
|---|
| Paper Loading | Front heightening device to support paper roll with diameter of 28cm |
|---|
| Paper Feeding | Hidden infrared precise paper feeding system, continuous 700 meters without deviation |
|---|
| Receiving and Delivering Paper | Unattended automatic paper receiving and feeding |
|---|
| Print Media | 40-80g, ordinary roll printing paper; 80-250g, single brown paper |
|---|
| Communication Interface | Network port + USB, multiple computers can separately control printing |
|---|
| Power Supply Voltage | 220V/50Hz |
|---|
| Button Panel | Press the keys operation, simple, convenient, durable |
|---|
| Machine Structure | Die standardized metal structure, high precision and long life |
|---|
| Output Center | Support manual or automatic printing, optional ink-saving mode, support online printing |
|---|
Available Models
We offer three main styles of inkjet plotters:
- Normal dual head or 4 head HP45 ink cartridge printing plotter
- Continuous refill big capacity ink cartridge Epson head printing plotter
- Combo type dual head HP45 ink cartridge printing and cutting plotter (can cut each paper pattern)
190cm to 250cm Width - 1 Pieces (MOQ) 2-4 Heads
190cm to 250cm Width - 1 Piece (MOQ) 1 Big Head
125cm to 220cm Width - 1 Piece (MOQ), Cutting + Printing
Company Introduction
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development zone - Wuhan Linkong economic development zone. We specialize in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province.
Our Services & Strength
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies.
We have established a research and development team composed of doctors and senior engineers and other high-quality talents, and insist that "innovation" is the eternal power of the development of GEMEI.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10+ years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: What is your after-sales service?
A: We provide professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
