Highlight:
automatic inkjet cutter plotter
, KAEMI H2 cutting blade plotter
, fast printing inkjet plotter
Type: |
Inkjet Printer |
Print Dimension: |
Maximum 190cm To 250cm Width Printing Scope Sizes |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Advertising Company |
Condition: |
New |
Plate Type: |
Roll-to-Roll Printer |
Use: |
Paper Printer, Label Printer, Cloths Printer, Paper Pattern/Graph/Contour Fast Printing |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
220v |
Dimensions(L*W*H): |
245*65*110cm |
Weight: |
85 KG |
Warranty: |
1 Year |
Ink Type: |
Pigment Ink |
Key Selling Points: |
Large-format |
Marketing Type: |
New Product 2023 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Pump, Engine, Mother Board, Driver |
Product Name: |
H2 Cutting Blade Inkjet Cutter Plotter Fast Printing Plotter |
Printing Width: |
Maximum 190cm To 250cm Printing Scope Optional |
Ink Cartridge: |
Dual Head HP45 Ink Cartridge(4 Heads Optional) |
Cutting Function: |
Yes,with Cutting Blade To Cut Down(Cannot Cut Each Paper Pattern) |
Printing Speed: |
80-220 Sqm/h, Depends On Real Printing File |
Cutting Blade: |
Fine Quality Tungsten Cutting Blade |
Connection Port: |
Both USB And LAN Port(Ethernet Port) |
Applicable Paper Rolls: |
Printing:40 To 250gsm; Cutting 70-150gsm |
Compatible Files Formats: |
All CAD File Formats Including PLT, DXF, HGPL, Etc |
Applicable Fields: |
Garments, Shoes, Bags, Furniture, Car Interiors, Etc |

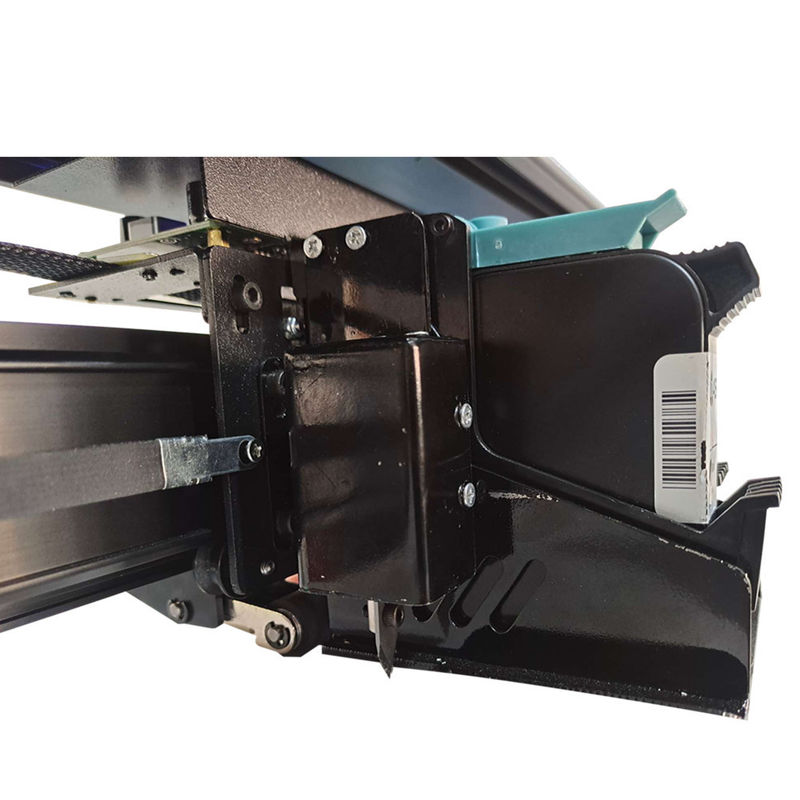

Automatic KAEMI H2 Cutting Blade Inkjet Cutter Plotter
High-performance inkjet cutter plotter with fast printing capability and integrated cutting functionality for industrial applications.
Key Features
- High-speed servo control with full closed-loop positioning for accurate output
- Independent output manager supports background file queuing and automatic printing
- Advanced SOPC technology for reliable performance
- Breakpoint resume function ensures reliable data transmission
- Automatic online printing with integrated cutting knife
- Optional configurations: Two, three, or four printing heads
Detailed Product Images
Size Information
Hot selling sizes: 190cm (72 inch) and 210cm (80 inch) printing width.
For 190cm width version, compatible with paper rolls within 190cm including 190/180/160/120cm width versions.
Size Chart
| Dual Printing Heads Type |
GMH2-190-2 |
GMH2-210-2 |
GMH2-230-2 |
GMH2-250-2 |
| Four Printing Heads Type |
GMH2-190-4 |
GMH2-210-4 |
GMH2-230-4 |
GMH2-250-4 |
Manufacturing Specifications
| Printing Width (cm) |
According to model number, real printing width varies (e.g., GMH1-190-2: 185-190cm, GMH1-190-4: 180-185cm) |
| Feeding Paper Width (cm) |
5 to 10cm bigger than maximum printing width |
| Printing Speed |
Two-way High Speed: 93 ㎡/h, 131 ㎡/h, 163 ㎡/h |
| Printing Format |
HPGL Drawing Language, compatible with domestic and foreign CAD software, customizable special formats |
| Print Resolution |
150-600DPI |
| Type of Nozzle |
HP45A |
| Cutting Function |
Tungsten cutting blade (cannot cut individual patterns) |
| Line Quality |
Clear, smooth, no seam, optional 1-8 lines |
| Nozzle Cleaning |
Automatic cleaning before printing |
| Paper Loading |
Front heightening device supports paper rolls up to 28cm diameter |
| Paper Feeding |
Hidden infrared precise paper feeding system, continuous 700 meters without deviation |
| Communication Interface |
Network port + USB, multiple computers can separately control printing |
| Power Supply Voltage |
220V/50Hz |
Recommended Products
New Arrival KAEMI H1 Inkjet Plotter Paper Pattern Plotter Fast Printing Dual Head - US$799.00 - US$1,099.00 / set
Hot Selling EP20 H801 Inkjet Paper Pattern Printing Plotter Graph Contour Plotter - US$1,045.00 - US$1,245.00 / set
3mm Kraft Paper White Paper Cutter Tungsten Blade Pen Drawing Paper Cutter - US$2,315.00 - US$2,715.00 / set
High Quality Fabric CNC Digital Cutter Clothing Cut Parts Round Knife Oscillation Knife Cutter - US$12,850.00 - US$13,950.00 / set
Available Styles
Three main inkjet plotter styles available:
- Normal dual/quad head HP45 ink cartridge printing plotter
- Continuous refill big capacity ink cartridge Epson head printing plotter
- Combo type dual head HP45 ink cartridge printing and cutting plotter (can cut individual paper patterns)
Company Introduction
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone, specializing in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries. As a high-tech enterprise in Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has obtained multiple software copyright and patent certificates.
Our Services & Strength
Since establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats. With a research team composed of doctors and senior engineers, GEMEI combines world advanced technology with Chinese manufacturing advantages, following the design principle of "good at core, simple in shape".
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10+ years of experience.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards or customer requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes and custom configurations according to your requirements.
Q: What is your after-sales service?
A: Professional after-sales team with 24-hour technical support via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods: 2-4 days, Customization: 5-7 days
