Highlight:
inkjet printing head tungsten blade
, 110-240V compatible plotter printer
, paper pattern plotter cutting blade
Type: |
Inkjet Printer |
Print Dimension: |
Maximum 190cm To 250cm Width Printing Scope Sizes |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Advertising Company |
Condition: |
New |
Plate Type: |
Roll-to-Roll Printer |
Use: |
Paper Printer, Label Printer, Cloths Printer, Paper Pattern/Graph/Contour Fast Printing |
Automatic Grade: |
Automatic |
Color & Page: |
Single Color |
Voltage: |
220v |
Dimensions(L*W*H): |
245*65*110cm |
Weight: |
85 KG |
Warranty: |
1 Year |
Ink Type: |
Pigment Ink |
Key Selling Points: |
Large-format |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Pump, Engine, Mother Board, Driver |
Product Name: |
2 To 4 Head Tungsten Cutting Blade Paper Pattern Plotter |
Printing Width: |
Maximum 190cm To 250cm Printing Scope Optional |
Ink Cartridge: |
Dual Head HP45 Ink Cartridge(4 Heads Optional) |
Cutting Function: |
Yes,with Cutting Blade To Cut Down(Cannot Cut Each Paper Pattern) |
Printing Speed: |
80-220 Sqm/h, Depends On Real Printing File |
Cutting Blade: |
Fine Quality Tungsten Cutting Blade |
Connection Port: |
Both USB And LAN Port(Ethernet Port) |
Applicable Paper Rolls: |
Printing:40 To 250gsm; Cutting 70-150gsm |
Compatible Files Formats: |
All CAD File Formats Including PLT, DXF, HGPL, Etc |
Applicable Fields: |
Garments, Shoes, Bags, Furniture, Car Interiors, Etc |

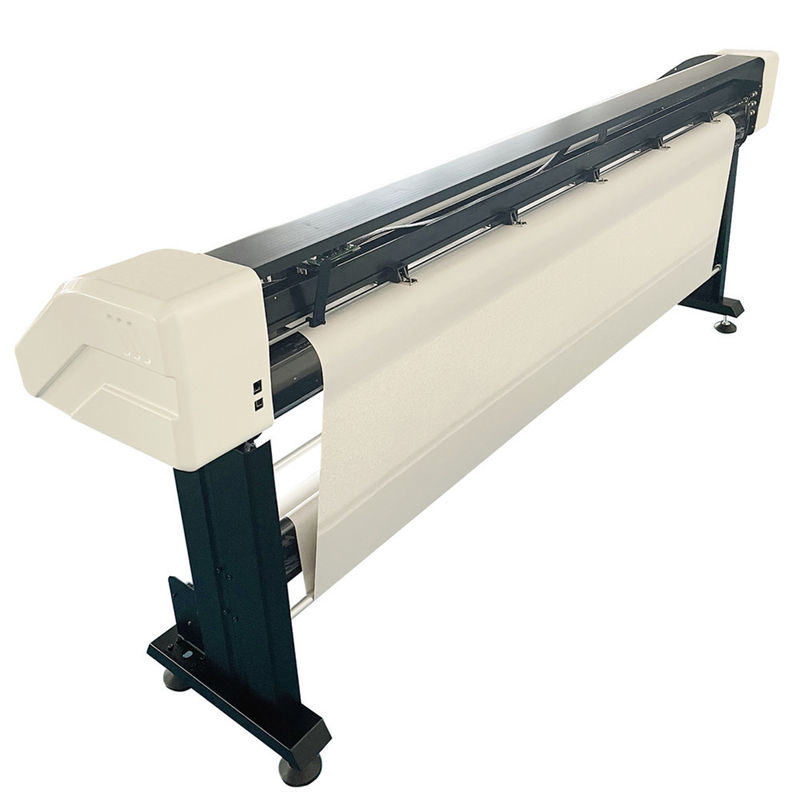

110-240V Compatible Inkjet Printing Head Tungsten Cutting Blade Paper Pattern Plotter
Key Features
- High-speed Servo Control with Full Closed-loop Positioning for Accurate Output
- Independent Output Manager Supports File Background Automatic Queuing Printing
- Advanced SOPC Technology Implementation
- Breakpoint Resume Function for Reliable Data Transmission and Printing
- Automatic Printing Online with Cutting Knife Integration
- Two, Three, or Four Printing Heads Configuration Options
Detailed Product Images
Size Information
Hot Selling Sizes: 190cm (72 inch) and 210cm (80 inch) Printing Width
For 190cm width version, compatible with paper rolls within 190cm including 190/180/160/120cm width versions.
Size Chart - Hot Selling Plotter Models
| Dual Printing Heads Type | GMH2-190-2 | GMH2-210-2 | GMH2-230-2 | GMH2-250-2 |
|---|
| Four Printing Heads Type | GMH2-190-4 | GMH2-210-4 | GMH2-230-4 | GMH2-250-4 |
|---|
Manufacturing Specifications
| Printing Width (cm) | According to model number, real printing width varies (e.g., GMH1-190-2: 185-190cm, GMH1-190-4: 180-185cm) |
| Feeding Paper Width (cm) | 5 to 10cm bigger than maximum printing width |
| Printing Speed | Two-way High Speed: 93 ㎡/h, 131 ㎡/h, 163 ㎡/h |
| Printing Format | HPGL Drawing Language, Compatible with Domestic and Foreign CAD Software |
| Print Resolution | 150-600DPI |
| Type of Nozzle | HP45A |
| Cutting Function | Tungsten Cutting Blade for Cut Down (cannot cut individual patterns) |
| Line Quality | Clear, Smooth, No Seam, Optional 1-8 Lines |
| Nozzle Cleaning | Automatic Cleaning Before Printing |
| Paper Loading | Front Heightening Device Supports Paper Roll Diameter of 28cm |
| Paper Feeding | Hidden Infrared Precise Paper Feeding System, Continuous 700 Meters without Deviation |
| Communication Interface | Network Port + USB, Multiple Computers Can Separately Control Printing |
| Power Supply Voltage | 220V/50Hz |
Recommended Products
New Arrival KAEMI H1 Inkjet Plotter Paper Pattern Plotter Fast Printing Dual Head
US$799.00 - US$1,099.00 / set (1 set) Hot Selling EP20 H801 Inkjet Paper Pattern Printing Plotter Graph Contour Plotter
US$1,045.00 - US$1,245.00 / set (1 set) 3mm Kraft Paper White Paper Cutter Tungsten Blade Pen Drawing Paper Cutter
US$2,315.00 - US$2,715.00 / set (1 set) Available Styles
We offer three main inkjet plotter styles:
- Normal dual/quad head HP45 ink cartridge printing plotter
- Continuous refill big capacity ink cartridge EPSON head printing plotter
- Combo type dual head HP45 ink cartridge printing and cutting plotter (can cut individual paper patterns)
Company Introduction
Wuhan Gemei Joint Technology Co., Ltd. is located in Wuhan Linkong Economic Development Zone, specializing in research, development, production, sales and service of automation equipment for clothing, bags and shoes industries.
As a high-tech enterprise in Hubei Province, we are committed to providing CAM/CAD integrated solutions for garment, luggage, and footwear enterprises.
Our Services & Strength
Since establishment, GEMEI has developed a series of cutting machines and obtained multiple software copyright and patent certificates. Our R&D team combines world advanced technology with Chinese manufacturing advantages.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters for over 10+ years.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards or your specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes and can customize according to your requirements.
Q: What is your lead time?
A: Spot goods: 2-4 days, Customization: 5-7 days
