Highlight:
230ml refillable ink tank plotter
, garment plotter with cutting function
, inkjet plotter printer with cutting blade
Condition: |
New |
Applicable Industries: |
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
100 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
Inkjet Paper Plotter 230ml Refillable Ink Tank Garment Plotter |
Power: |
300-400W |
Printing Resolution: |
150-600 DPI |
Connection Port: |
Network/LAN Port |
Printing Paper: |
40-80gsm White Plotter Paper; 80-250gsm Kraft Paper |
Ink Cartridge: |
Refillable 230ml Big Ink Cartridge |
Cutting Function: |
Yes, With Cutting Blade To Cut Down Paper After Printing |
Printing Speed: |
120sqm/h Dual Way Fast Printing |
Application: |
Paper Pattern, Graph,Contour Printing |
Support Files Formats: |
HPGL, PLT, DXF, HPGL Language, Compatible With Various CAD Softwares |

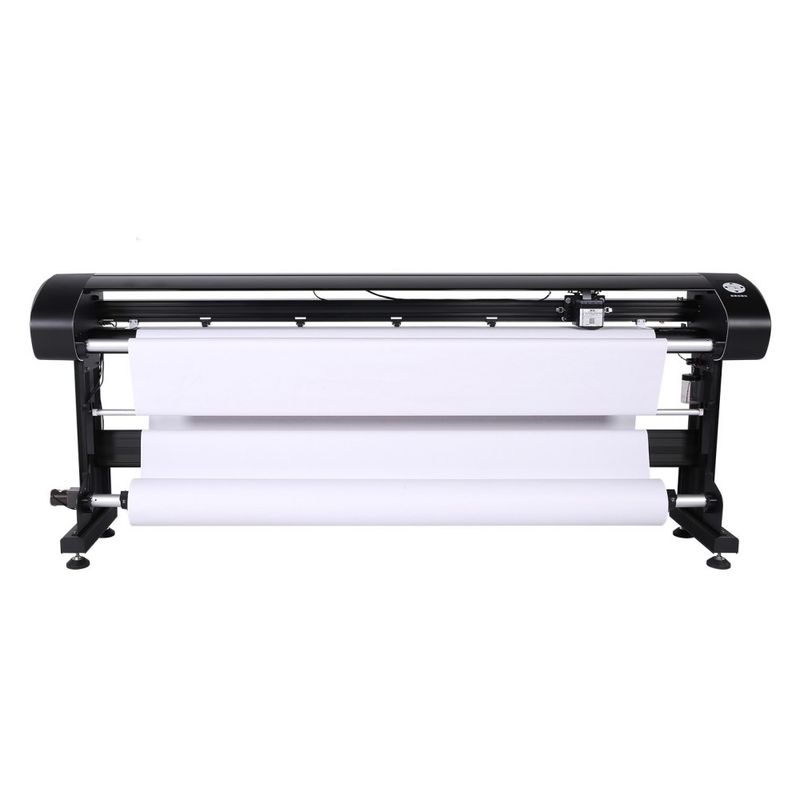

EP806 Big Ink Cartridge Printing Plotter with Cutting Function
Product Overview
This high-performance 230ml refillable ink tank garment plotter delivers exceptional value with fast printing speeds and integrated cutting capabilities.
Key Features
- Large 230ml refillable ink cartridges (compared to standard 42ml HP45 cartridges)
- High-quality EPSON TX806 printing head for reliable performance
- Fast dual-way printing at 120 square meters per hour
- Integrated triangle cutting blade for automatic paper cutting after printing
- Extremely high cost-performance ratio
Technical Specifications
| Model # | EP806-130 | EP806-170 | EP806-190 | EP806-210 | EP806-230 | EP806-250 |
|---|
| Plot width | 125cm | 165cm | 185cm | 205cm | 225cm | 245cm |
| Paper width | 130cm | 170cm | 190cm | 210cm | 230cm | 250cm |
| Plot speed | 90 square meters per hour |
| File format | HPGL language, compatible with various CAD software |
| Cutting function | Auto cutting after plotted one marker |
| Resolution | 150-600DPI |
| Print head type | Epson TX806 |
| Print head safety | Inktruck reset automatic protection |
| Ink tank | 230ml capacity |
| Line quality | Clean, smooth, and adjustable line thickness |
| Clean print head | Auto cleaning print head |
| Load paper system | Front loading, maximum roll diameter 28cm |
| Feed paper system | Hidden infrared precision paper system, accurate and efficient |
| Take-up paper system | Take-up plotting mode or drop-on-floor plotting mode |
| Paper | White plotter paper 40-80 gsm, Kraft paper 80-250 gsm |
| Interface | Network (LAN Port or Ethernet Port) |
| Power supply | 220V/50Hz |
| Panel | Simple, convenient and durable |
| Machine structure | Aluminum alloy structure, high machine precision, long lifetime |
| Software center | Drive-free, fully automatic online, support multiple independent control |
Product Configuration
230ml Refillable Big Ink Cartridge
Triangle Blade to Cut Down Paper
High Quality & Speed Motor
Manufacturer Profile
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China, we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents, and insists that "innovation" is the eternal power of the development of GEMEI.
Packaging Options
Plotter Quality Wooden Case
Flatbed Cutter Wooden Case
CNC Digital Cutter Big Wooden Case
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
