Product Details
Place of Origin: Hubei, China
Brand Name: KAEMI or GM
Certification: CE,CCC,ISO9001,etc
Model Number: GM-190H2-2
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $799.00--$1,099.00/sets 1-40 Sets
Packaging Details: Professional Wooden Case for Import and Export(with Official Chop)
Delivery Time: 3-7 Working Days
Payment Terms: T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)
Supply Ability: 500 Sets Per Month
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
100 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |

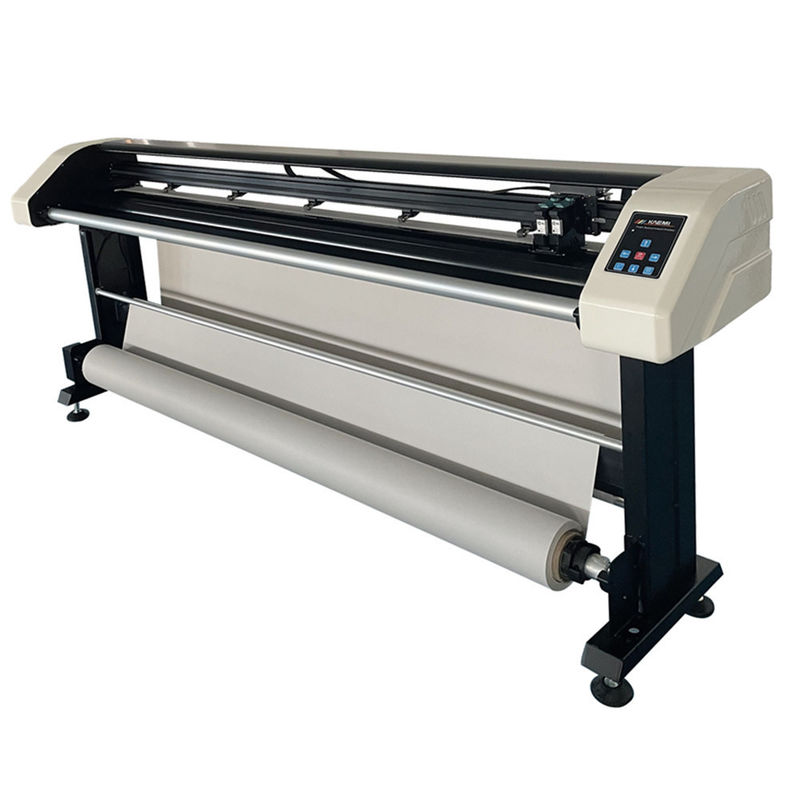

Hot 190cm Width HP45 Dual Head Inkjet Printing Plotter Pattern Plotter |
Printing Materials: |
White Paper,Kraft Paper, Viinyl, Etc |
Printing Size: |
1650mm To 2450mm |
Paper Size: |
1700mm To 2500mm |
Printing Tool: |
Universal HP45 Ink Cartridges, Dual Head |
Ink Cartridge Type: |
Normal HP45 Ink Cartridges, 2 Head 4 Head Optional |
Printing Resolution: |
150-600DPI, Optional And Settable On Menu |
Power Supply Voltage: |
220V/50Hz |
CAD File Format: |
HP-GL, PLT, DXF |
Software: |
Free For Lifetime Usage |
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
100 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
Hot 190cm Width HP45 Dual Head Inkjet Printing Plotter Pattern Plotter |
Printing Materials: |
White Paper,Kraft Paper, Viinyl, Etc |
Printing Size: |
1650mm To 2450mm |
Paper Size: |
1700mm To 2500mm |
Printing Tool: |
Universal HP45 Ink Cartridges, Dual Head |
Ink Cartridge Type: |
Normal HP45 Ink Cartridges, 2 Head 4 Head Optional |
Printing Resolution: |
150-600DPI, Optional And Settable On Menu |
Power Supply Voltage: |
220V/50Hz |
CAD File Format: |
HP-GL, PLT, DXF |
Software: |
Free For Lifetime Usage |
Main Features:
High-speed Servo Control, Full Closed-loop Positioning (to Ensure Accurate Output of Various Unexpected Situations)
Independent Output Manager Supports File Background Automatic Queuing Printing
Using advanced SOPC technology
Support breakpoint resume, ensure reliable data transmission and printing
Automatic printing online
2 Printing Heads/3 Printing Heads/4 Printing Heads Optional
| Technical Parameters | Dual Head Type(2 Ink Boxes) | Four Head Type(4 Ink Boxes) |
| Product Model | GM170-2/GM190-2/GM200-2/GM220-2/GM230-2 | GM190-4/GM200-4/GM220-4/GM230-4 |
| Printing Width(cm) | 165/185/195/215/225 Maximum Width | 180/190/210/220 Maximum Width |
| Feeding Paper Width(cm) | 170/190/200/220/230 Maximum Width | 190/200/20/230 Maximum Width |
| Printing Speed | Two-way High Speed 93 sqm/h; | Two-way High Speed 163 sqm/h |
| Printing format | HPGL Drawing Language, Compatible with Domestic and Foreign CAD Software, Special format can be Customized | |
| Print resolution | 150-600DPI | |
| Type of Nozzle | HP45A--2Pcs(Dual Head); 4Pcs(Four Head) | |
| Line quality | Clear, Smooth, No Seam, Optional 1-8 Lines | |
| Nozzle Cleaning | Automatic Cleaning Before Printing | |
| Paper Loading | Front Heightening Device to Support Paper Roll with Diameter of 28cm | |
| Paper Feeding | Hidden Infrared Precise Paper Feeding System, Continuous 700 Meters without Deviation | |
| Receiving and Delivering Paper | Unattended Automatic Paper Receiving and Feeding | |
| Print Media | 40-80g, Ordinary Roll Printing Paper;80-250g, Single Brown Paper | |
| Communication Interface | Network Port, Multiple Computers can Separately Control Printing | |
| Power Supply Voltage | 220V/50Hz | |
| Button Panel | Press the Keys Operation,Simple, Convenient, Durable | |
| Machine Structure | Die Standardized Metal Structure, High Precision and Long Life | |
| Output Center | 1.Support Manual or Automatic Printing 2.Optional Ink-saving Mode 3.Support Online Printing | |
