Highlight:
clothing pattern CAD scanner
, electronic 2D pattern scanner
, Gerber pattern transfer scanner
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
40 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
Paper Pattern Transfer To Electronic 2D Pattern CAD Plate Scanner |
Working Scope Or Area: |
Width (mm) : 120* 90/150 *120 |
Data Transfer Rate: |
10-200 Pairs Per Second |
Output Formats: |
31 Industry Standard Formats |
Interface Standard: |
RS232 Output Format 31 Industrial Standard Formats Support Hardware PC |
Item List: |
16 Key Scaler(Wired) Resolution 2540 Lines |
Cursor: |
16 Keys Standard Cursor |
Hot Application Areas: |
Garment CAD, Garment Design, Embroidery Version |
Color: |
White |
Package: |
Strong Carton And Wooden Frame |

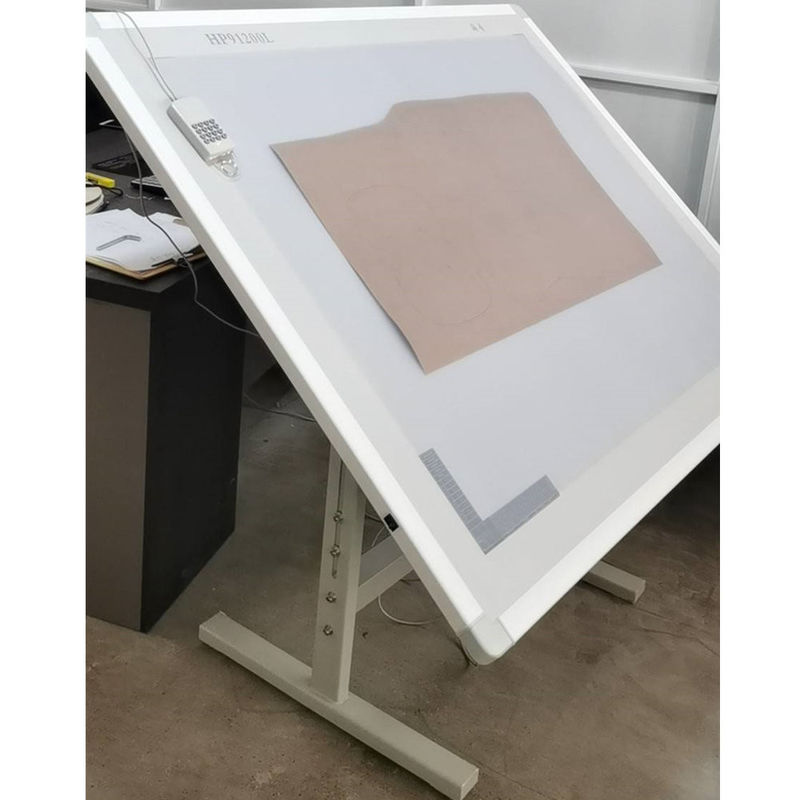

Clothing Paper Pattern Transfer to Electronic 2D Pattern CAD Plate Scanner
This high-performance digital instrument serves as cost-effective computer input equipment, specifically designed for converting physical clothing patterns into electronic 2D CAD patterns. With resolution of 2540 lines/inch and precision accuracy of 0.203mm and 0.127mm, it provides professional-grade digitization capabilities.
Key Features
Product Specifications
| Application Fields |
CAD, digital mapping, GIS, garment sample scanning, furniture, automotive, construction, and various manufacturing industries |
| Resolution |
2540 lines/inch |
| Accuracy |
0.203mm and 0.127mm |
| Supported Formats |
Over 30 standard data formats with compatibility for major industry software |
| Working Area |
Format sizes from A2 to A00 |
| Interface |
RS-232 serial interface |
| Output Rate |
Up to 100 pairs per second |
| Technology |
Electromagnetic induction principle |
| Power Requirements |
220V ±10%, 50HZ |
| Warranty |
One year effective guarantee with free technical support |
Universal Compatibility: This digitizer supports over 120 software applications including AutoCAD, MapGIS, Optitex, Gerber, PGM, Tajima, and various specialized clothing CAD systems. It offers excellent compatibility to replace multiple digitizer brands worldwide.
Product Configuration
High Quality Working Table Facet
Strong Stand Full Stainless Steel Stand
Strong Carton and Wooden Frame Package
Applications
- Garment sample scanning and pattern digitization
- Tent samples, car seat cushions, and sofa patterns
- Any planar samples with thickness less than 2CM
- Furniture manufacturing and lighting design
- Geological surveying and land planning
- Architectural design and embroidery version creation
Company Profile - GEMEI
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes, and hats, obtaining numerous software copyright and patent certificates. Combining the essence of Chinese and foreign technologies, GM series cutting machines integrate world-advanced technology with Chinese manufacturing advantages, featuring innovative designs that emphasize core functionality and simple form.
CCTV Listed Brand
National High Tech Enterprise
Patents and Certificates
Packaging Solutions
Plotter Quality Wooden Case
Flatbed Cutter Wooden Case
CNC Digital Cutter Big Wooden Case
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
How do you pack these products?
Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance available via phone, email, or Skype.
What is your lead time?
Spot goods typically ship in 2-4 days, while custom orders require 5-7 days for production.
