Garment CAD Digitizer - Streamline Pattern Creation
High-performance computer input equipment for CAD, digital mapping, and GIS applications with 40KG weight capacity and support for 31 output formats.
Product Overview

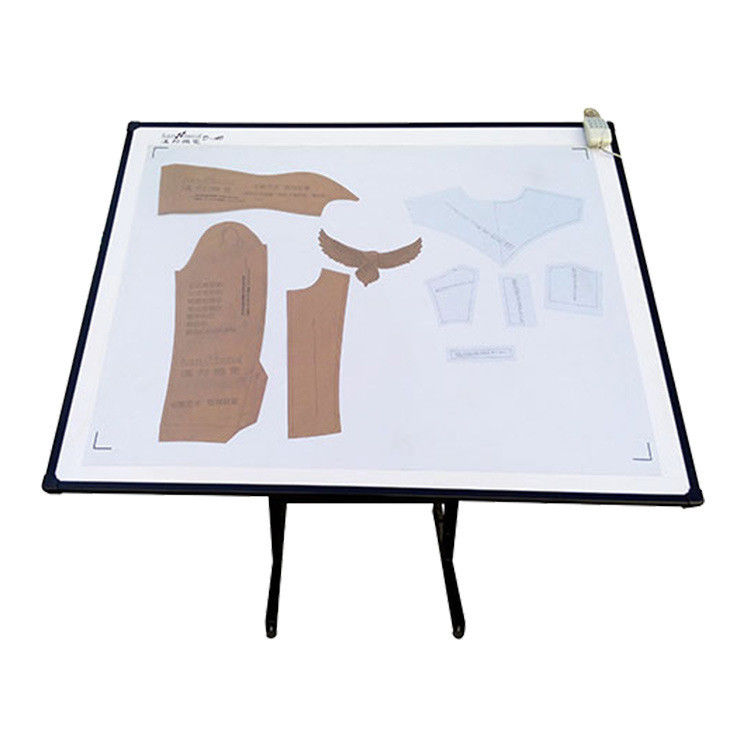

The Garment CAD Digitizer is a professional fashion design pattern CAM digitizer with drawing board, offering exceptional performance at a competitive price point.
Key Features
Technical Specifications
| Resolution |
2540 lines/inch |
| Accuracy |
0.203mm and 0.127mm |
| Supported Formats |
31 industry standard data formats |
| Working Area |
Format from A2 to A00 |
| Interface |
RS-232 serial interface |
| Baud Rate |
Up to 19,200 |
| Output Rate |
Up to 100 PPS (pairs per second) |
| Technology |
Electromagnetic induction principle |
| Power Specifications |
220V+10%, 50HZ |
| Operating System |
Microsoft Windows XP or Above |
Applications
Ideal for garment sample scanning, tent samples, car seat cushions, sofas, and any planar samples with thickness less than 2CM. Widely used in surveying and mapping, clothing factories, furniture manufacturers, construction, stroller manufacturing, children's wear, underwear, footwear, geological resources, land planning, urban survey, clothing design, embroidery version, and environmental protection industries.
Product Configuration
High Quality Working Table Facet
Strong Stand Full Stainless Steel Stand
Strong Carton and Wooden Frame Package
Software Compatibility
Excellent compatibility supporting over 120 software types including Autocad, Mapgis, Citystar, Mapinfo, Arcinfo, Microstation, Supermap, Openinfo, Optitex, Arise, Billy, Cyber, Gmcad, Genamap, ViewGIS, MapEngin, ILWIS, Svcad, ET clothing CAD, Risheng Tianchen, Deka, Breakthrough, Bock, Duka, Zhizun Baofang, Silk Road, Geber, Like, PGM, Aike, Pai, Tianmu, Ruide Mapping, Beida Jade Bird, Founder Zhihua, Rainbow, Fuyi, Tsinghua Shanwei, Tajima, and Shannuo.
Manufacturer Profile
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Combining the essence of Chinese and foreign technologies, GM series cutting machines feature innovative designs that emphasize core functionality and simple form.
CCTV Listed Brand
National High Tech Enterprise
Patents and Certificates
Packaging Options
Plotter Quality Wooden Case
Flatbed Cutter Wooden Case
CNC Digital Cutter Big Wooden Case
Frequently Asked Questions
Are you a manufacturer?
Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
How do you pack these products?
Usually packed in wooden cases according to export standards or your specific requirements.
Is it customizable?
Yes, we offer standard sizes commonly used in the field and can customize according to your specific requirements.
What about after-sales service?
We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
What is your lead time?
Spot goods typically ship in 2-4 days, while custom orders take 5-7 days.
