Highlight:
affordable flatbed garment cutter
, PVC sheet milling machine
, 400KG cutting machine with warranty
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Product Name: |
Good Cheap Template Board PVC Sheet Milling Cutting Machine |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

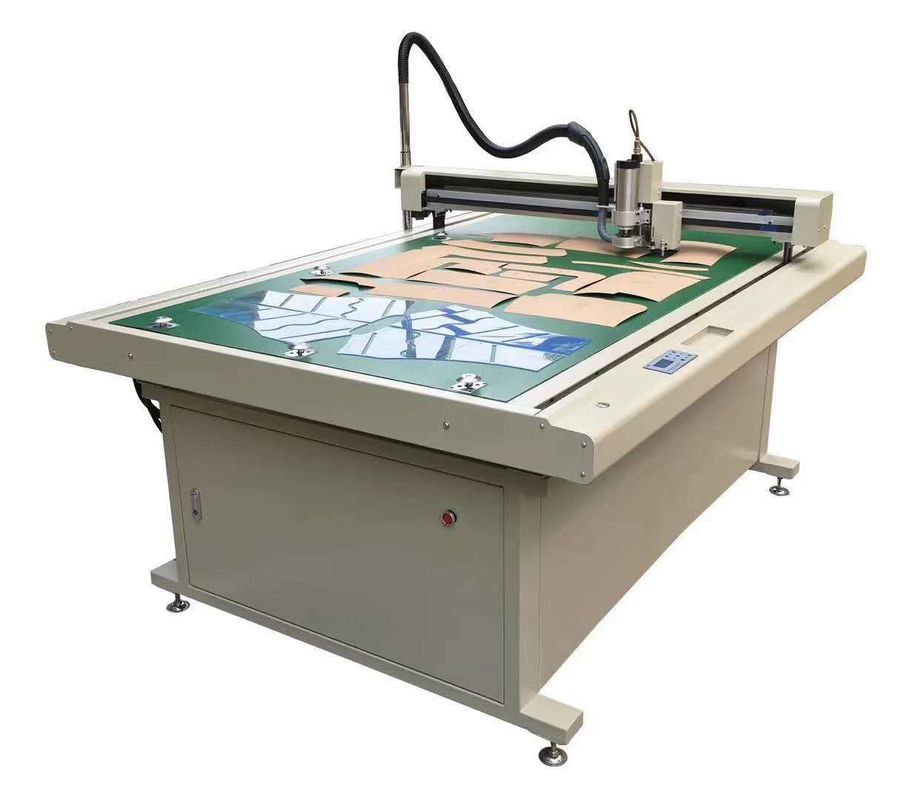

Affordable Flatbed Garment Cutter PVC Sheet Milling Cutting Machine with 400KG Weight
Product Overview
Key Features
- Pneumatic Fixation Technology for High Efficiency Template
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Sequence
- Independent Templates Editing and Designing System
Technical Specifications
| Model |
GM-1509M2 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1800*1200mm |
| Overall Dimension (mm) |
1900*1450*1100 |
2200*1750*1100 |
| Product Features |
Compatible with various CAD software; Design while machine is cutting |
| Cutting Speed |
500-1500mm/s |
| Cutting Thickness |
≤1.5mm-6.0mm |
| Cutting Materials |
PVC, PP, POM, Acrylic, PET, Kraft, etc. |
| Processing Methods |
Mill, Cut, Drill, Plot |
| Cut Tools |
Mill-cutter, Graver, Driller, Pen |
| Repeatability Precision |
≤0.01mm |
| Software Resolution |
0.025mm/0.01mm/0.1mm (Optional) |
| Communication Port |
USB/RJ45 Ethernet |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/GPGL/PLT Formats Compatible |
| Control Panel |
9 Keys and LED Display |
| Driver System |
Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Fuse Value |
30A |
35A |
| Working Environment |
-30~55℃ or -22~131℉ |
| Fasten |
Vacuum/Clamping |
| Mill Motor |
800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter |
| Waste Elimination |
220V/1.4KW, Industrial 15L Vacuum Cleaner |
Product Gallery
Packaging & Shipping
Company Information
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages.
Our design philosophy emphasizes "good at core, simple in shape" - focusing on robust internal engineering with clean external aesthetics. Following the development of China's first continuous drum cutter, we have successively developed specialized cutting solutions for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI leverages the global manufacturing shift to central regions by maintaining a research and development team composed of doctors, senior engineers, and other high-quality professionals. We firmly believe that "innovation" is the eternal driving force behind GEMEI's continuous development.
Frequently Asked Questions
-
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of industry experience.
-
Q: How do you pack these products?
A: Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.
-
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize machines according to your specific requirements.
-
Q: After-sales service
A: We provide professional after-sales support with 24-hour technical assistance available via phone, email, or Skype.
-
Q: What is your lead time?
A: Standard models typically ship in 2-4 days, while custom orders require 5-7 days for production.
