Product Details
Place of Origin: Hubei, China
Brand Name: KAEMI or GM
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $13,950.00/sets 1-2 sets
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
2500*1600mm |
Cutting Thickness: |
≤35mm |
Cutting Speed: |
100-1200mm/s |
Cutting Machine Size: |
3420*2350*1220mm |
Product Name: |

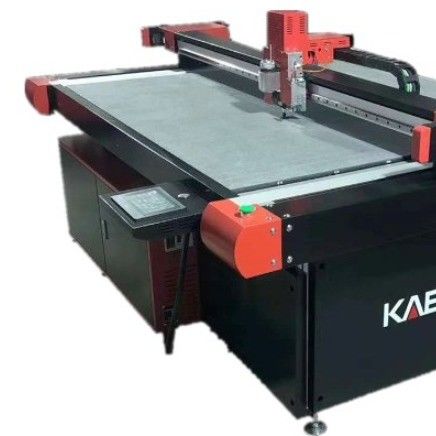

Gemei 2516DK5 Single Bed Digital Image Cutting And Positioning System |
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year, For The Whole Machine |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
HP45 Ink Box,Tungsten Steel Blade |
Cutting Scope: |
2500*1600mm |
Cutting Thickness: |
≤35mm |
Cutting Speed: |
100-1200mm/s |
Cutting Machine Size: |
3420*2350*1220mm |
Product Name: |
Gemei 2516DK5 Single Bed Digital Image Cutting And Positioning System |
Model | GM-2516DK5 | GM-2518DK5 | GM3016DK5 | ||
Cutting Window(Fabric Scope) | 2500*1600mm | 2500*1800mm | 3000*1600mm | ||
Overall Dimension(mm) | 3420*2350*1220 | 3420*2550*1220 | 3920*2350*1220 | ||
Materials Fasten | Vacuum Adsorption | ||||
Max Cutting Thickness | ≤35mm | ||||
Cutting Materials | Flexible Materials(Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board,Various Fiber Composite Materials, etc | ||||
Cutting Speed | 100mm~1200mm/s (Speed Varies According to Cutting Materials) | ||||
Pen Type/Knife Type | Milling Cutter, Nicking Tool, Drill, Pen | ||||
Repeatability Precision | ≤0.01mm | ||||
Communication Port | USB/RJ45 Ethernet, Shared Folder Print in LAN | ||||
Buffer Memory Size | 1M/8M/32M(Can butter more than 1 page) | ||||
File Formats | DXF/HPGL/HPG/PLT Formats Compatible | ||||
Control Panel | Color Multilingual Touch Screen | ||||
Feeding Way | Roller and Crawler Feed Automatically | ||||
Supply Voltage | AC 220V/380V±10%, 50Hz | ||||
Fuse Value | 30A/35A | ||||
Working Environment | Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation | ||||
Location Mode | Cross Laser, CCD Positioning | ||||
Power Consumption | The Control Part is 2.2KW/h, and the Vacuum Part is 2.2-7.5KW/h | ||||
Application Areas | Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting, etc | ||||
