Highlight:
3mm paper garment cutting machine
, 3mm paper pattern cutting machine
Condition: |
New |
Applicable Industries: |
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing |
Weight (KG): |
300 |
Showroom Location: |
Turkey, Viet Nam, Bangladesh, Cambodia |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
Ordinary Product |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Mother Board And Drivers |
Warranty: |
1 Year, 1 Year Warranty For Full Machine |
Product Name: |
Wholesale Garment Paper Pattern Cutting Plotter |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
White Paper, Kraft, Plastic Board, Fiberboard, Etc |
Cut Tools: |
Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade |
Cutting Scope: |
1200*900mm |
Cutting Thickness: |
≤3mm |
Cutting Speed: |
1200mm/s |
Cutting Machine Size: |
1600*1280*750mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

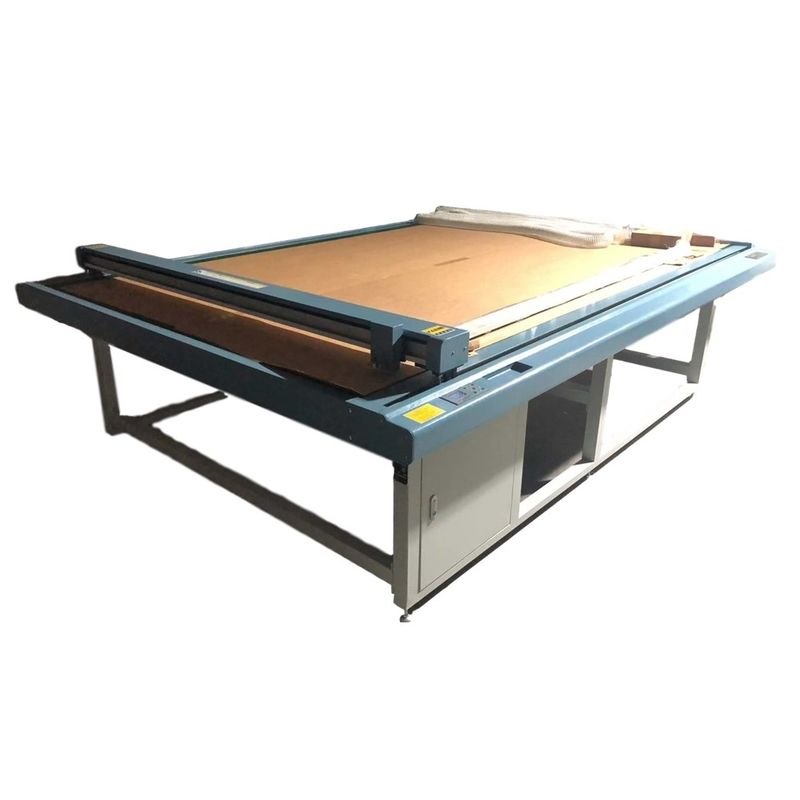

3mm Paper Garment Cutting Machine - Ultimate Solution for White Paper Pattern Cutting
Practical 1209 Pen Drawing 3mm Paper Garment Cutting Machine
Main Features
- New frame design ensures machine stability when running at high speed
- Optimized circuit layout with more compact electrical components and better heat dissipation
- Cutting starting points and cutting sequence display system
- Latest system version with optimized dashed lines and arcs for smoother operation
- Unique error data identification function
Technical Specifications
| Model |
GM-1209B3 |
GM-1509B3 |
GM-1510B3 |
GM-1512B3 |
| Cutting Window (Fabric Scope) |
1200*900mm |
1500*900mm |
1500*1000mm |
1500*1200mm |
| Overall Dimension (mm) |
1600*1280*750 |
1900*1280*750 |
1900*1380*800 |
1900*1580*800 |
| Cutting Speed |
1200mm/s |
| Cutting Thickness |
2mm |
| Cutting Materials |
White Paper, Kraft, Plastic Board, Fiberboard, etc |
| Repeatability Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet; Shared Folder Print in LAN |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
HPGL (Compatible with Domestic and International CAD Online) |
| Control Panel |
9 Keys and LED Display |
| Motor/Driver |
High Performance 3 Phase Step-motor |
| Supply Voltage |
AC 220V/110V±10%, 50Hz/3.5KW |
| Working Environment |
Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH |
| Fasten |
Vacuum Adsorption |
| Paper Thickness |
150g-500g/m² |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc |
Product Gallery
Packaging & Shipping
Related Products
Company Information
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, GM series cutting machines combine the essence of Chinese and foreign technologies, closely integrating world's advanced technology with Chinese manufacturing advantages. Our innovative design differs from traditional domestic cutting machines and fully embodies the "good at core, simple in shape" design principle.
After developing the first continuous drum cutter in central China, we successively created sample cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend of world manufacturing industry transferring to central regions, and has established a research and development team composed of doctors, senior engineers, and other high-quality professionals. We insist that "innovation" is the eternal driving force behind GEMEI's development.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden cases and can be packed according to export standards or your specific requirements.
Q: Is it customizable?
A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, we provide professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
