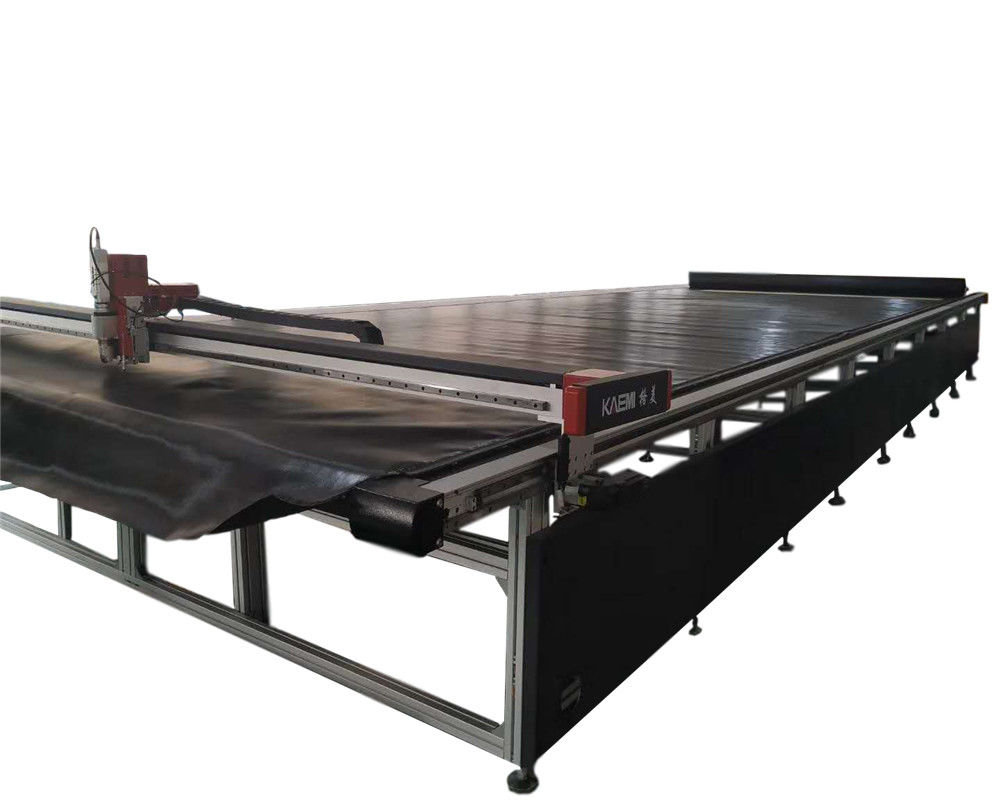

800KG Weight Fabric Cutter CNC Digital Cutter with Cutting and Tungsten Steel Blade
Nice Cutter CNC Digital Cutter Single Ply Fabrics Textile Garment Cutting Machine
Main Features
- Continuous Feeding System
- Independent Operator-Touch Screen Control
- Various Scissors/Punching Devices
- Digital Image Cutting Positioning System
- Modular Partition Table and All-aluminum Profile Fuselage
- Imported Servo Motor/Drive System
- Remote Wireless Remote Control Operating System
- Intelligent Suction Zoning System
Technical Specifications
| Model |
GM-2516DK5 |
GM-2518DK5 |
GM3016DK5 |
| Cutting Window (Fabric Scope) |
2500*1600mm |
2500*1800mm |
3000*1600mm |
| Overall Dimension (mm) |
3420*2350*1220 |
3420*2550*1220 |
3920*2350*1220 |
| Materials Fasten |
Vacuum Adsorption |
| Max Cutting Thickness |
≤35mm |
| Cutting Materials |
Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials, etc.) |
| Cutting Speed |
100mm~1200mm/s (Speed Varies According to Cutting Materials) |
| Pen Type/Knife Type |
Milling Cutter, Nicking Tool, Drill, Pen |
| Repeatability Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet, Shared Folder Print in LAN |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/HPG/PLT Formats Compatible |
| Control Panel |
Color Multilingual Touch Screen |
| Feeding Way |
Roller and Crawler Feed Automatically |
| Supply Voltage |
AC 220V/380V±10%, 50Hz |
| Fuse Value |
30A/35A |
| Working Environment |
Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation |
| Location Mode |
Cross Laser, CCD Positioning |
| Power Consumption |
The Control Part is 2.2KW/h, and the Vacuum Part is 2.2-7.5KW/h |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting, etc. |
Company Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing, bags and shoes.
The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China's garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape".
After the first continuous drum cutter came into being in the middle part of China, we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents, and insists that "innovation" is the eternal power of the development of GEMEI.
Packing & Delivery
Exhibition
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are specializing in the R&D production for template cutter/inkjet cutter/pen writing cutter/CNC digital fabric cutter/graph plotter in this field for 10 years.
Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or Skype.
Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
