Home > Products > CNC Digital Cutting Machine > Precision Round Knife Oscillation CNC Digital Cutting Machine with 2500x1600mm Cutting Scope and Automatic Material Feeding

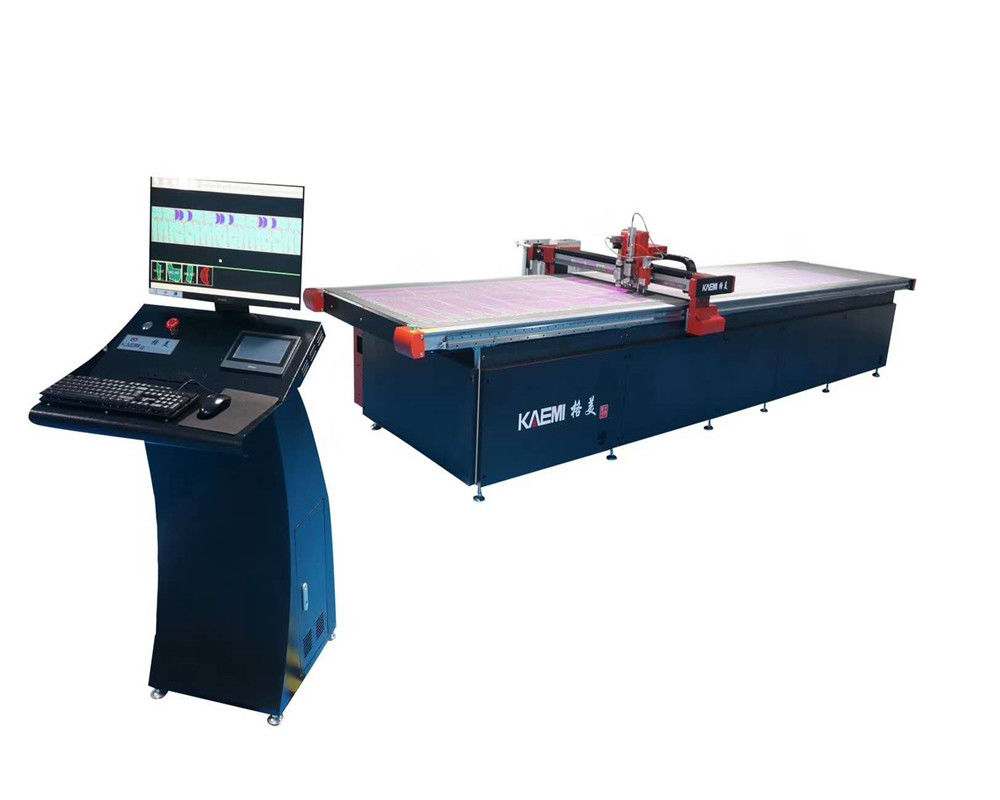

Precision Round Knife Oscillation CNC Digital Cutting Machine with 2500x1600mm Cutting Scope and Automatic Material Feeding

Name: Precision Round Knife Oscillation CNC Digital Cutting Machine with 2500x1600mm Cutting Scope and Automatic Material Feeding
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $15,000.00/sets 1-2 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                round knife oscillation cutter for aluminum countertops, precision CNC cutting machine for textiles, digital cutting machine with round knife


Features:	Fabric Cutter And Auto Materials Feeding	Applicable Industries:	Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location:	Viet Nam	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	2 Years	Core Components:	Engine, Motor, Drivers And Motherboard
Condition:	New	Application:	Clothing,Footwear,Bags, Etc Desgin And Cutting
Automatic Grade:	Automatic	Production Capacity:	N/A
Voltage:	AC 220V/380V±10%, 50Hz/3.5KW	Power:	3.5KW
Dimension(LWH):	342023501220mm	Weight:	1350 KG
Warranty:	1 Year	Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops	Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade	Cutting Scope:	2500*1600mm
Cutting Thickness:	≤35mm	Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342023501220mm	Product Name:	2516 Fabric Garment Cutting Machine Round Knife Vibration Knife

Features:	Fabric Cutter And Auto Materials Feeding
Applicable Industries:	Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location:	Viet Nam
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard
Condition:	New
Application:	Clothing,Footwear,Bags, Etc Desgin And Cutting
Automatic Grade:	Automatic
Production Capacity:	N/A
Voltage:	AC 220V/380V±10%, 50Hz/3.5KW
Power:	3.5KW
Dimension(LWH):	342023501220mm
Weight:	1350 KG
Warranty:	1 Year
Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops
Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade
Cutting Scope:	2500*1600mm
Cutting Thickness:	≤35mm
Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342023501220mm
Product Name:	2516 Fabric Garment Cutting Machine Round Knife Vibration Knife

Product Description

Precision Round Knife Oscillation Cutter for Aluminum Countertops, Fabric & Textiles

Professional Round Knife Oscillation Knife Garment Cutting Machine for fabric, textile, and garment cutting applications.

Main Features

Continuous Feeding System
Independent Operator Touch Screen Control
Various Scissors and Punching Devices
Digital Image Cutting Positioning System
Modular Partition Table with All-Aluminum Profile Fuselage
Imported Servo Motor and Drive System
Remote Wireless Remote Control Operating System
Intelligent Suction Zoning System

Technical Specifications

Model	GM-2516DK5	GM-2518DK5	GM3016DK5
Cutting Window (Fabric Scope)	2500*1600mm	2500*1800mm	3000*1600mm
Overall Dimension	342023501220mm	342025501220mm	392023501220mm
Materials Fasten	Vacuum Adsorption
Max Cutting Thickness	≤35mm
Cutting Materials	Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials)
Cutting Speed	100mm~1200mm/s (Speed varies according to cutting materials)
Pen Type/Knife Type	Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M (Can buffer more than 1 page)
File Formats	DXF/HPGL/HPG/PLT Formats Compatible
Control Panel	Color Multilingual Touch Screen
Feeding Way	Roller and Crawler Feed Automatically
Supply Voltage	AC 220V/380V±10%, 50Hz
Fuse Value	30A/35A
Working Environment	Temperature: 0~40℃ (32~104℉); Humidity: 20%-80% RH, No Condensation
Location Mode	Cross Laser, CCD Positioning
Power Consumption	Control Part: 2.2KW/h, Vacuum Part: 2.2-7.5KW/h
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting

Product Images

Company Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development zone - Wuhan Linkong economic development zone. We specialize in the research, development, production, sales and service of automation equipment for clothing, bags, and shoes industries. As a high-tech enterprise and software enterprise in Hubei Province, we are committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises.

Packing & Delivery

Exhibition

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for 10 years.

Q: How do you pack these products?

A: Usually packed in wooden cases and can pack according to export standards or your specific requirements.

Q: Is it customizable?

A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.

Q: What about after-sales service?

A: We provide professional after-sales service with 24-hour technical support by phone, email, or Skype.
