Home > Products > CNC Digital Cutting Machine > CNC Digital Cutting Machine with ≤35mm Cutting Thickness 2500*1600mm Scope and All Aluminum Countertops

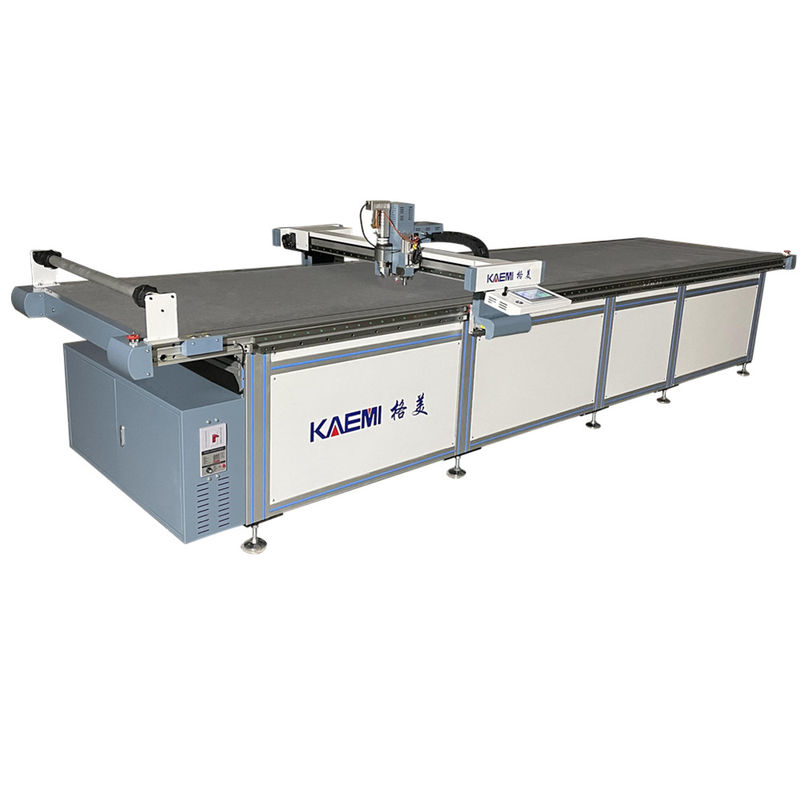

CNC Digital Cutting Machine with ≤35mm Cutting Thickness 2500*1600mm Scope and All Aluminum Countertops

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $13,950.00/sets 1-2 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fabric leather foam cutter machine, mini lathe cutting machine 35mm, CNC foam cutter with warranty


Condition:	New	Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Weight (KG):	400	Showroom Location:	Viet Nam
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard	Warranty:	1 Year, For The Whole Machine
Product Name:	Mini Lathe Cutting Machine Fabric Leather FOAM Cutter	Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops	Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade	Cutting Scope:	2500*1600mm
Cutting Thickness:	≤35mm	Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342023501220mm

Condition:	New
Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Weight (KG):	400
Showroom Location:	Viet Nam
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard
Warranty:	1 Year, For The Whole Machine
Product Name:	Mini Lathe Cutting Machine Fabric Leather FOAM Cutter
Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops
Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade
Cutting Scope:	2500*1600mm
Cutting Thickness:	≤35mm
Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342023501220mm

Product Description

Fabric Leather FOAM Cutter with Cutting Thickness ≤35mm Mini Lathe Cutting Machine

Professional CNC digital cutting machine designed for precision cutting of various flexible materials including fabrics, leather, foam, and composite materials.

Key Features

Continuous Feeding System (Optional)
Independent Operator Touch Screen Control
Various Scissors and Punching Devices
Digital Image Cutting Positioning System
Modular Partition Table and All-Aluminum Profile Fuselage
Imported Servo Motor and Drive System
Intelligent Suction Zoning System

Technical Specifications

Model	GM1216DK
Cutting Window (Fabric Scope)	1200*1600mm
Overall Dimension	145023501100mm
Materials Fasten	Vacuum Adsorption
Max Cutting Thickness	≤35mm
Cutting Materials	Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials)
Cutting Speed	100mm~1200mm/s (Speed Varies According to Cutting Materials)
Tool Types	Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M (Can buffer more than 1 page)
File Formats	DXF/HPGL/HPG/PLT Formats Compatible
Feeding Way	Roller and Crawler Feed Automatically (Optional)
Supply Voltage	AC 220V/380V±10%, 50Hz
Fuse Value	30A/35A
Working Environment	Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation
Location Mode	Cross Laser, CCD Positioning
Power Consumption	Control Part: 2.2KW/h, Vacuum Part: 2.2-7.5KW/h
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting

Product Gallery

Packaging & Shipping

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for 10 years.

Q: How do you pack these products?

A: Usually packed in wooden cases and can pack according to export standards or your requirements.

Q: Is it customizable?

A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.

Q: What about after-sales service?

A: We provide professional after-sales team and 24-hour technical support by phone, email, or Skype.

Q: What is your lead time?

A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
