H801 Continuous Ink Cartridge Large Format Plotter with 1900mm to 2500mm Cutting Size and 150-600DPI Resolution

Name: H801 Continuous Ink Cartridge Large Format Plotter with 1900mm to 2500mm Cutting Size and 150-600DPI Resolution
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or OEM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $1,245.00/sets 1-4 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                continuous ink cartridge plotter, garment paper pattern plotter, high capacity large format plotter


Condition:	New	Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100	Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers	Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	High Cost Performance Continuous Ink Supply Printing Plotter	Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm	Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge	Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu	Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL	Model:	EP20L-19

Condition:	New
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Other, Advertising Company, All Other Fileds Need Cut Cutting Or Printing
Weight (KG):	100
Showroom Location:	Turkey, Viet Nam, Bangladesh, Cambodia
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor, Mother Board And Drivers
Warranty:	1 Year, 1 Year Warranty For Full Machine
Product Name:	High Cost Performance Continuous Ink Supply Printing Plotter
Printing Materials:	White Paper,Kraft, Etc
Cutting Size:	1900mm To 2500mm
Paper Size:	2000mm To 2600mm
Printing Tool:	Contious Big Capacity H801 Ink Catridge
Ink Cartridge Type:	Continuous Ink Catridge, No Need Replacement, Can Refill The Ink
Printing Resolution:	150-600DPI, Optional And Settable On Menu
Power Supply Voltage:	220V/50Hz
CAD File Format:	HP-GL
Model:	EP20L-19

Product Description

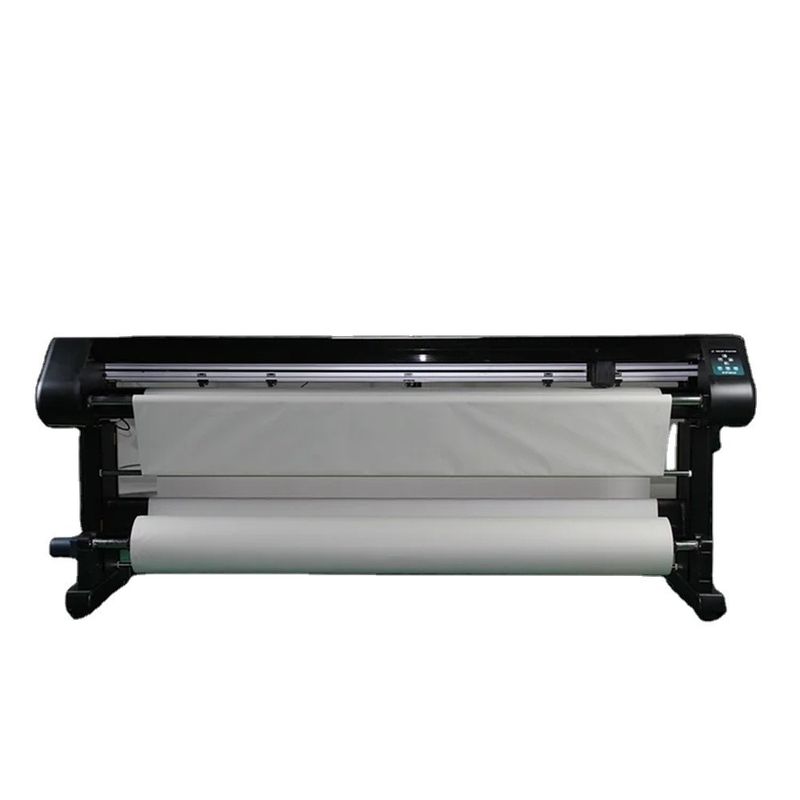

H801 Continuous Ink Cartridge Plotter for Garment Paper Pattern Printing

High-capacity continuous ink supply plotter designed specifically for garment paper pattern printing with advanced servo control and full closed-loop positioning system.

Key Features

High-speed servo control with full closed-loop positioning
Independent output manager with background automatic queuing printing
Advanced SOPC technology with breakpoint resume function
Bi-directional high-speed printing at 120 m²/h
Super EPSON EP20L continuous ink supply system
Large capacity ink system - no cartridge replacement required
Environmentally friendly and cost-effective operation
Automatic nozzle cleaning before printing
Hidden infrared precise paper feeding system
Unattended automatic paper receiving and feeding

Technical Specifications

Product Model	EP20-19	EP20-21	EP20-23	EP20-25
Printing Width (cm)	190	210	230	250
Feeding Paper Width (cm)	200	220	240	260

Additional Technical Parameters

Printing Speed: 120 m²/h (bi-directional high speed)
Printing Format: HPGL drawing language, compatible with domestic and international CAD software
Print Resolution: 150-600 DPI
Nozzle Type: EP20L
Line Quality: Clear, smooth, seamless, optional 1-8 lines
Paper Loading: Front heightening device supports 28cm diameter paper rolls
Print Media: 40-80g ordinary roll printing paper; 80-250g single brown paper
Communication Interface: Network port, multiple computer control
Power Supply: 220V/50Hz
Working Temperature: 10-35°C (50-95°F)
Humidity: 15%-85% RH (no condensation)

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is a high-tech enterprise specializing in automation equipment for clothing, bags, and shoes industries. Located in Wuhan Linkong Economic Development Zone, the company provides CAM/CAD integrated solutions and holds multiple software copyright and patent certificates.

Packaging & Delivery

Certifications & Quality Standards

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.

Q: What is your lead time?

A: Standard products typically ship in 2-4 days, while custom orders require 5-7 days for delivery.
