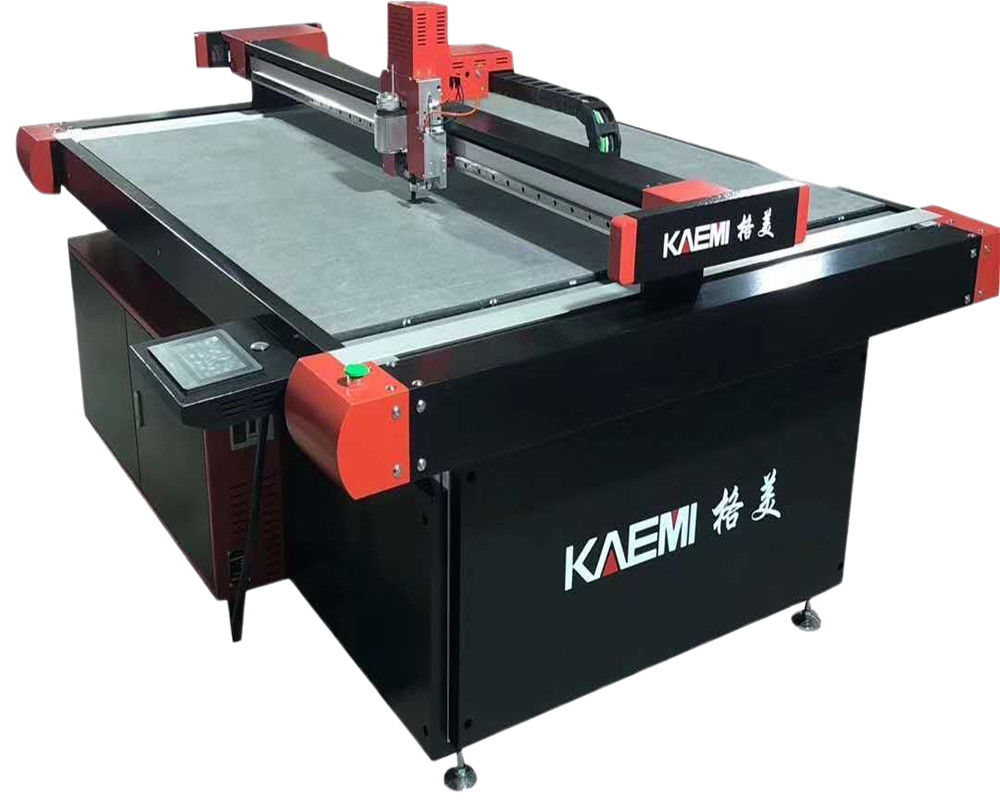

High Precision 1625 CNC Digital Cutter with Automatic Material Feeding for Fabric Cutting

Name: High Precision 1625 CNC Digital Cutter with Automatic Material Feeding for Fabric Cutting
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $15,000.00/sets 1-2 sets

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High precision fabric CNC cutter, Automatic feeding digital cutting machine, 1625 CNC fabric cutting machine


Features:	Fabric Cutter And Auto Materials Feeding	Applicable Industries:	Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location:	Viet Nam	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	2 Years	Core Components:	Engine, Motor, Drivers And Motherboard
Condition:	New	Application:	Clothing,Footwear,Bags, Etc Desgin And Cutting
Automatic Grade:	Automatic	Production Capacity:	N/A
Voltage:	AC 220V/380V±10%, 50Hz/3.5KW	Power:	3.5KW
Dimension(LWH):	342023501220mm	Weight:	1350 KG
Warranty:	1 Year	Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops	Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade	Cutting Scope:	2500*1600mm
Cutting Thickness:	≤35mm	Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342023501220mm	Product Name:	CNC Digital Cutter Automatic Material Feeding Fabric Cutting Machine

Features:	Fabric Cutter And Auto Materials Feeding
Applicable Industries:	Hotels, Garment Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Showroom Location:	Viet Nam
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard
Condition:	New
Application:	Clothing,Footwear,Bags, Etc Desgin And Cutting
Automatic Grade:	Automatic
Production Capacity:	N/A
Voltage:	AC 220V/380V±10%, 50Hz/3.5KW
Power:	3.5KW
Dimension(LWH):	342023501220mm
Weight:	1350 KG
Warranty:	1 Year
Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops
Cutting Materials:	White Paper, Kraft, Plastic Board, Fiberboard, Etc
Cut Tools:	HP45 Ink Box,Tungsten Steel Blade
Cutting Scope:	2500*1600mm
Cutting Thickness:	≤35mm
Cutting Speed:	100-1200mm/s
Cutting Machine Size:	342023501220mm
Product Name:	CNC Digital Cutter Automatic Material Feeding Fabric Cutting Machine

Product Description

High Precision Fabric Cutting 1625 CNC Digital Cutter with Automatic Material Feeding

The 1625 Fabric CNC Digital Cutter with Automatic Material Feeding is an advanced cutting machine designed for precision fabric processing across various industries including garment manufacturing, automotive decoration, and furniture production.

Key Features

Continuous Feeding System for uninterrupted operation
Independent Operator Touch Screen Control for easy operation
Multiple Scissors and Punching Devices for versatile cutting options
Digital Image Cutting Positioning System for accuracy
Modular Partition Table with All-Aluminum Profile Fuselage
Imported Servo Motor and Drive System for reliability
Remote Wireless Control Operating System
Intelligent Suction Zoning System for material handling

Technical Specifications

Model	GM-2516DK5	GM-2518DK5	GM3016DK5
Cutting Window (Fabric Scope)	2500*1600mm	2500*1800mm	3000*1600mm
Overall Dimension	342023501220mm	342025501220mm	392023501220mm
Materials Fasten	Vacuum Adsorption
Max Cutting Thickness	≤35mm
Cutting Materials	Flexible Materials including Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials
Cutting Speed	100mm~1200mm/s (Speed varies according to cutting materials)
Tool Types	Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M (Can buffer more than 1 page)
File Formats	DXF/HPGL/HPG/PLT Formats Compatible
Control Panel	Color Multilingual Touch Screen
Feeding Method	Roller and Crawler Feed Automatically
Supply Voltage	AC 220V/380V±10%, 50Hz
Fuse Value	30A/35A
Working Environment	Temperature: 0~40℃ (32~104℉); Humidity: 20%~80% RH, No Condensation
Location Mode	Cross Laser, CCD Positioning
Power Consumption	Control Part: 2.2KW/h, Vacuum Part: 2.2-7.5KW/h
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting

Product Images

Manufacturer Profile

Wuhan Gemei Joint Technology Co., Ltd. is located in the Wuhan Linkong Economic Development Zone and specializes in the research, development, production, sales, and service of automation equipment for clothing, bags, and shoe industries. As a high-tech enterprise certified by Hubei Province, Gemei is committed to providing CAM/CAD integrated solutions and has obtained numerous software copyright and patent certificates.

Packing & Delivery

Exhibition & Events

Certifications

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.

Q: How do you pack these products?

A: Products are typically packed in wooden cases according to export standards, with customization available to meet specific requirements.

Q: Is it customizable?

A: Yes, we offer standard sizes commonly used in the industry and can customize machines according to your specific requirements.

Q: What about after-sales service?

A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
