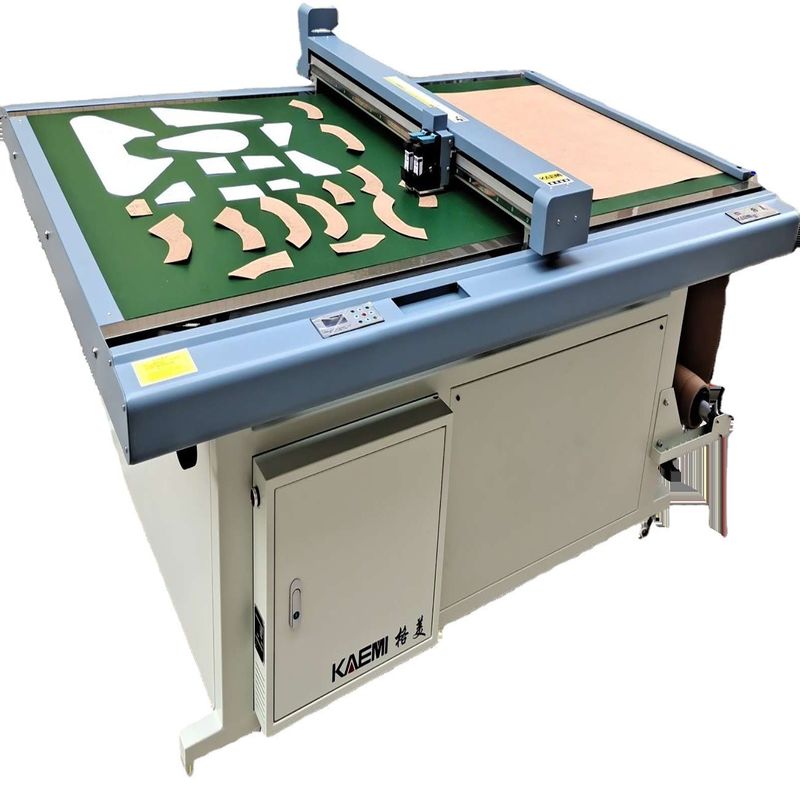

Flatbed Pen Drawing Cutter with 1200mm/s Cutting Speed, Tungsten Steel Blade, and 1200x900mm Cutting Scope

Product Details

Place of Origin: Hubei, China

Brand Name: KAEMI or GM

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: $4,690.00/sets 1-2 sets

Packaging Details: Wooden Case Specially Treated and No Problem for Import and Ex

Supply Ability: 200 Set/Sets per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                tungsten steel blade flatbed cutters, flat thickness flat bed cutter, gel pen flat bed cutter


Condition:	New	Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Retail, Printing Shops, Other, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Weight (KG):	400	Showroom Location:	Viet Nam
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard	Warranty:	1 Year, For The Whole Machine
Product Name:	Flatbed Pen Drawing Template Cutting Machine	Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops	Cut Tools:	Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade
Cutting Thickness::	≤3mm	Cutting Scope:	1200*900mm
Cutting Speed:	1200mm/s Max, 1200mm/s	Voltage:	AC 220V/110V±10%, 50Hz/3.5KW
Paper Feed Width:	900mm	Driver:	High Performance 3 Phrase Step-motor
Port:	Shanghai Port

Condition:	New
Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Retail, Printing Shops, Other, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton
Weight (KG):	400
Showroom Location:	Viet Nam
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	2 Years
Core Components:	Engine, Motor, Drivers And Motherboard
Warranty:	1 Year, For The Whole Machine
Product Name:	Flatbed Pen Drawing Template Cutting Machine
Cutting Machine Frame And Case:	Blue Frame+Silver Case
Machine Material:	All Aluminum Countertops
Cut Tools:	Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade
Cutting Thickness::	≤3mm
Cutting Scope:	1200*900mm
Cutting Speed:	1200mm/s Max, 1200mm/s
Voltage:	AC 220V/110V±10%, 50Hz/3.5KW
Paper Feed Width:	900mm
Driver:	High Performance 3 Phrase Step-motor
Port:	Shanghai Port

Product Description

Gel Pen / Tungsten Steel Blade Flatbed Cutter with Flat Thickness Paper Board

Manufacturer Direct Sales Flat Thickness Paper Board Flatbed Pen Cutter

Smart Flatbed Template Cutting Machine designed for precision cutting of various materials with high-speed performance and advanced features.

Main Features

New frame design ensures machine stability during high-speed operation
Optimized circuit layout with compact electrical components for better heat dissipation
Cutting starting points and cutting sequence display system
Latest system version with optimized dashed lines and arcs for smoother machine operation
Unique error data identification function

Technical Specifications

Model	GM-1209B5	GM-1509B5	GM-1510B5	GM-1512B5
Cutting Window (Fabric Scope)	1200*900mm	1500*900mm	1500*1000mm	1500*1200mm
Overall Dimension (mm)	16001280750	19001280750	19001380800	19001580800
Cutting Speed	1200mm/s
Cutting Thickness	2mm
Cutting Materials	White Paper, Kraft, Plastic Board, Fiberboard, etc
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet; Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M (Can buffer more than 1 page)
File Formats	HPGL (Compatible with Domestic and International CAD Online)
Control Panel	9 Keys and LED Display
Motor/Driver	High Performance 3 Phase Step-motor
Supply Voltage	AC 220V/110V±10%, 50Hz/3.5KW
Working Environment	Temperature: -30~50℃ or -22~122℉; Humidity: 10%-95% RH
Fasten	Vacuum Adsorption
Paper Thickness	150g-500g/m²
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

Product Gallery

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters in this field for 10 years.

Q: How do you pack these products?

A: Usually packed in wooden cases and can be packed according to export standards or your requirements.

Q: Is it customizable?

A: Yes, we have basic sizes commonly applied in the field and can customize according to your requirements.

Q: After-sales service

A: Yes, we provide professional after-sales team and 24-hour technical support by phone, email, or Skype.

Q: What is your lead time?

A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
