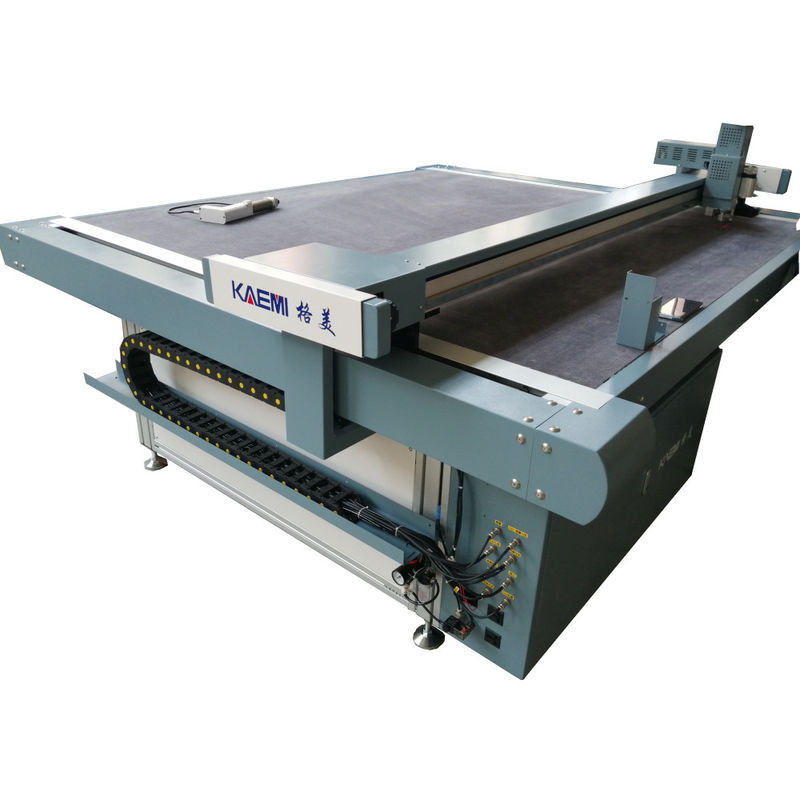

Single Ply CNC Digital Fabric Textile Cutting Machine with Round Knife Vibration Cutter
This advanced CNC digital fabric cutting machine features round knife and vibration knife cutting technology for precise, automated textile processing. Designed for industrial manufacturing applications, it offers high-speed cutting with exceptional accuracy.
Key Features
- Continuous Feeding System
- Independent Operator Touch Screen Control
- Various Scissors and Punching Devices
- Digital Image Cutting Positioning System
- Modular Partition Table and All-Aluminum Profile Fuselage
- Imported Servo Motor and Drive System
- Remote Wireless Remote Control Operating System
- Intelligent Suction Zoning System
Technical Specifications
| Model |
GM-2516DK5 |
GM-2518DK5 |
GM3016DK5 |
| Cutting Window (Fabric Scope) |
2500*1600mm |
2500*1800mm |
3000*1600mm |
| Overall Dimension |
3420*2350*1220mm |
3420*2550*1220mm |
3920*2350*1220mm |
| Materials Fasten |
Vacuum Adsorption |
| Max Cutting Thickness |
≤35mm |
| Cutting Materials |
Flexible Materials (Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board, Various Fiber Composite Materials) |
| Cutting Speed |
100mm~1200mm/s (Speed Varies According to Cutting Materials) |
| Pen Type/Knife Type |
Milling Cutter, Nicking Tool, Drill, Pen |
| Repeatability Precision |
≤0.01mm |
| Communication Port |
USB/RJ45 Ethernet, Shared Folder Print in LAN |
| Buffer Memory Size |
1M/8M/32M (Can buffer more than 1 page) |
| File Formats |
DXF/HPGL/HPG/PLT Formats Compatible |
| Control Panel |
Color Multilingual Touch Screen |
| Feeding Way |
Roller and Crawler Feed Automatically |
| Supply Voltage |
AC 220V/380V±10%, 50Hz |
| Fuse Value |
30A/35A |
| Working Environment |
Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation |
| Location Mode |
Cross Laser, CCD Positioning |
| Power Consumption |
Control Part: 2.2KW/h, Vacuum Part: 2.2-7.5KW/h |
| Application Areas |
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting |
Product Images
Company Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research, development, production, sales and service of automation equipment for the clothing, bags and shoes industries.
Our company shoulders the historical mission of "changing traditional industries with high technology" and is committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is recognized as a high-tech enterprise and software enterprise in Hubei Province, with "information port" certification and status as an entrepreneurship enterprise for overseas students in Wuhan City.
Since its establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Based on profound understanding of China's garment, luggage and footwear industry, our GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world-class advanced technology with Chinese manufacturing advantages.
Our innovative design differs from traditional domestic cutting machines, fully embodying the "good at core, simple in shape" design principle. After introducing the first continuous drum cutter in central China, we successively developed specialized cutters for the luggage industry and continuous cutting garment sample cutters.
"The competition of enterprises is the competition of talents." GEMEI capitalizes on the global manufacturing trend transferring to central China, maintaining a research and development team composed of doctors, senior engineers and other high-quality professionals. We firmly believe that "innovation" is the eternal driving force behind GEMEI's development.
Packing & Delivery
Exhibition
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: We typically pack in wooden cases according to export standards, but can customize packaging according to your specific requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize machines according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance available by phone, email, or Skype.
Q: What is your lead time?
A: Standard models are available within 2-4 days, while custom orders typically take 5-7 days to complete.
