Highlight:
400KG garment cutting machine
, M3 template cutter 1500x900mm
, flatbed template cutter for manufacturing
Condition: |
New |
Applicable Industries: |
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Advertising Company, Shoes/Hats/Bags/Furniture/Car Interiors Producton |
Weight (KG): |
400 |
Showroom Location: |
Viet Nam |
Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
2 Years |
Core Components: |
Engine, Motor, Drivers And Motherboard |
Warranty: |
1 Year |
Product Name: |
Good Template Cutting Machine Well Sold |
Cutting Machine Frame And Case: |
Blue Frame+Silver Case |
Machine Material: |
All Aluminum Countertops |
Cutting Materials: |
PVC, PP,POM,Acrylic, PET, Kraft, Etc |
Cut Tools: |
Mill-cutter, Graver, Driller, Pen |
Cutting Scope: |
1500*900mm |
Cutting Thickness: |
≤1.5mm-6.0mm |
Cutting Speed: |
500-1800mm/s |
Cutting Machine Size: |
1900*1450*1100mm |
Applicable Fields Or Industries: |
Clothing,Bags, Handbags,Furniture,Car Decoration,Paper Boxes |

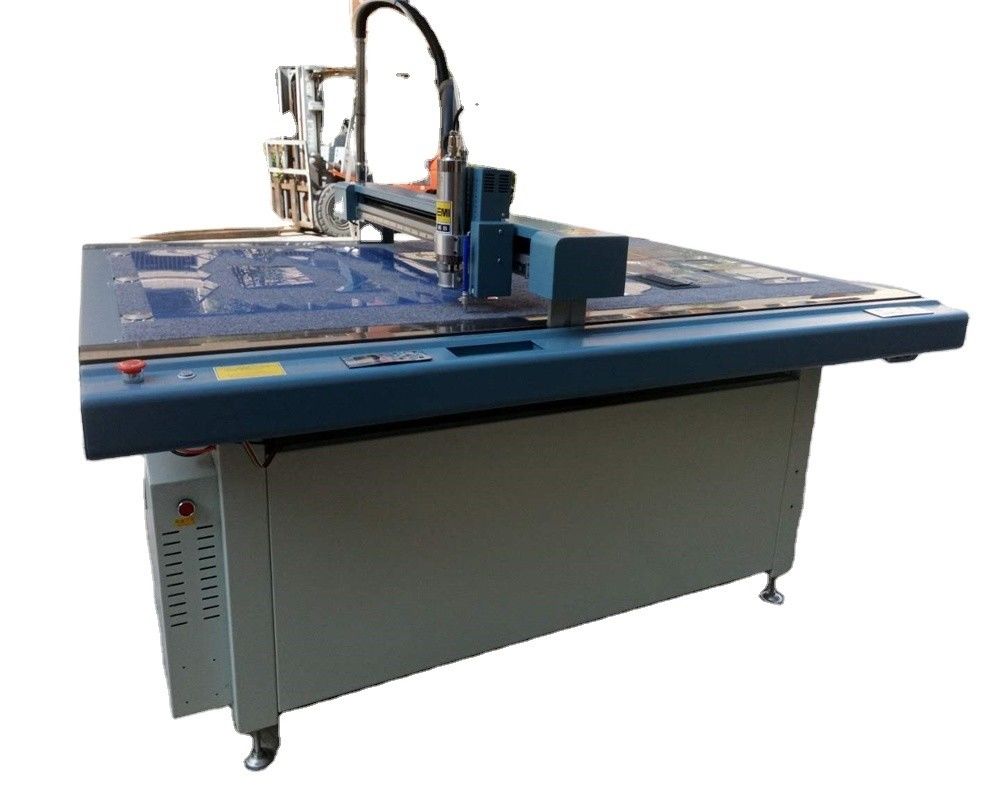

400KG M3 Template Cutting Machine for Garment Manufacturing
Cutting Scope: 1500*900mm | Hot Selling M3 Template Cutting Machine for Garment Manufacturing
Product Specifications
| Model |
GM-1509M3 |
GM-1512M3 |
GM1812M3 |
| Cutting Window (Fabric Scope) |
1500*900mm |
1500*1200mm |
1800*1200mm |
| Overall Dimension (mm) |
1900*1450*1100 |
1900*1750*1100 |
2200*1750*1100 |
Technical Features
- Compatible with various CAD software
- Design while the machine is cutting
- Cutting Speed: 500-1500mm/s
- Cutting Thickness: ≤1.5mm-6.0mm
- Cutting Materials: PVC, PP, POM, Acrylic, PET, Kraft, etc.
- Processing Methods: Mill, Cut, Drill, Plot
- Cut Tools: Mill-cutter, Graver, Driller, Pen
- Repeatability Precision: ≤0.01mm
- Software Resolution: 0.025mm/0.01mm/0.1mm (Optional)
- Communication Port: USB/RJ45 Ethernet
- Buffer Memory Size: 1M/8M/32M (Can buffer more than 1 page)
- File Formats: DXF/HPGL/GPGL/PLT Formats Compatible
- Control Panel: 9 Keys and LED Display
- Driver System: Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
- Supply Voltage: AC 220V/110V±10%, 50Hz/3.5KW
- Fuse Value: 30A/35A
- Working Environment: -30~55℃ or -22~131℉
- Fasten: Vacuum/Clamping
- Mill Motor: 800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
- Waste Elimination: 220V/1.4KW, Industrial 15L Vacuum Cleaner
Main Features
- Pneumatic Fixation Technology of High Efficiency Template
- Integrated Floating Pressure Foot and Vacuum Cleaning Technology
- Flexible Modification System for Cutting Starting Points and Cutting Sequence
- Independent Templates Editing and Designing System
Manufacturer Profile
Wuhan Gemei Joint Technology Co., Ltd. is located in the national economic development Zone - Wuhan Linkong economic development zone. We are a specialized company focusing on the research, development, production, sales and service of automation equipment for the clothing, bags and shoes industries.
Our mission is "changing traditional industries with high technology," and we are committed to providing CAM/CAD integrated solutions for garment, luggage, footwear and other enterprises. Gemei is a high-tech enterprise and software enterprise in Hubei Province, certified as an "information port" enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.
Since establishment, GEMEI has developed a comprehensive series of cutting machines for clothing, bags, shoes and hats, obtaining numerous software copyright and patent certificates. Our GM series cutting machines combine the essence of Chinese and foreign technologies, integrating world advanced technology with Chinese manufacturing advantages through innovative design that follows the "good at core, simple in shape" principle.
Packaging & Delivery
Exhibition & Events
Certifications
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we specialize in the R&D and production of template cutters, inkjet cutters, pen writing cutters, CNC digital fabric cutters, and graph plotters with 10 years of experience in this field.
Q: How do you pack these products?
A: Usually packed in wooden cases according to export standards, with customization available based on your requirements.
Q: Is it customizable?
A: Yes, we offer standard sizes commonly used in the industry and can customize according to your specific requirements.
Q: What about after-sales service?
A: We provide professional after-sales support with 24-hour technical assistance via phone, email, or Skype.
Q: What is your lead time?
A: Spot goods typically take 2-4 days, while custom orders require 5-7 days for delivery.
